1
1
2
2-1
3
4
4
5
6
6
7
8
9
9
10
11
12
13
13
14
15
15
15
16
17
17
17
17
18
19
19
19
19
20
20
20
20
20
20
21
21
22
22
22
22
23
24
24
25
26
27
46
48

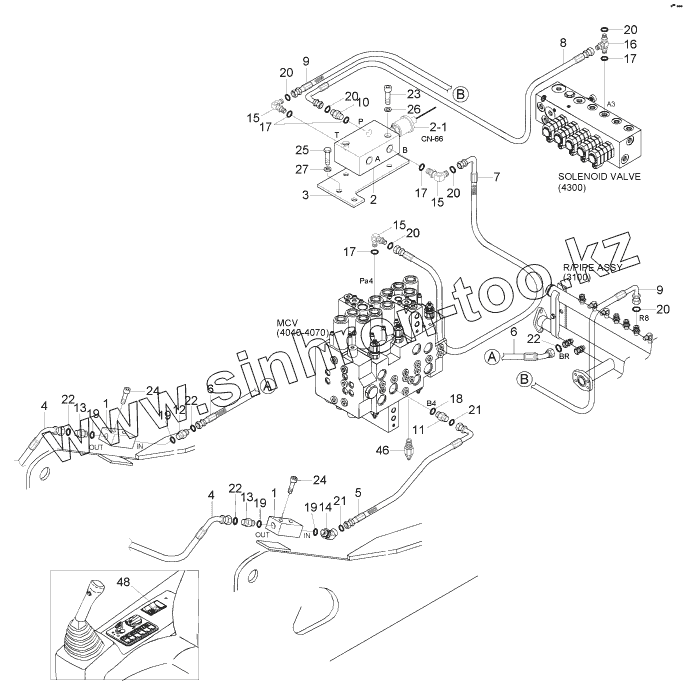

Позиция на иллюстрации
Заводской номер детали
Название детали
S/ActHydPipingKit
S/ActHydPipingKit
S/Act Hyd Piping Kit
1
31N5-94710
Block-Hose Joint
2
31N6-91230D
Solenoid Vlv-Breaker
2-1
XKBN-00192
Coil-Breaker Sol
3
31N6-93230
Bracket-Sol Vlv
4
P973-166325
Hose Assy-Orfsxflg
5
P933-126016
Hose Assy-Orfs 0x90
6
P923-163020
Hose Assy-Orfs 0x45
7
P910-042052
Hose Assy-Orfs 0x0
8
P930-042018
HOSE ASSY-ORFS 0X90
9
P930-042046
Hose Assy-Orfs 0x90
10
X500-110001
CONNECTOR-ORFS
11
X511-112546
Connector-Long, Orfs
12
X500-110005
CONNECTOR-ORFS
13
X511-116556
Connector-Long, Orfs
14
X530-110018
Elbow-45,Orfs
15
X520-110001
ELBOW-90,ORFS
16
X820-045151
TEE-R/TYPE,ORFS
17
S631-011004
O-RING
18
S631-024004
O-RING
19
S631-029004
O-RING
20
S621-011001
O-RING
21
S621-018001
O-RING
22
S621-021001
O-RING
23
S109-080456
Bolt-Socket
24
S109-120556
Bolt-Socket
25
S017-100256
Bolt-Hex
26
S411-080006
WASHER-SPRING
27
S411-100006
WASHER-SPRING
46
31N4-90530
Port Relief Valve
48
21E6-30540
Switch-Breaker
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
