SEAT BASE ASSY
SEAT (-#0243)
SEAT (#0244-)
SEAT (#0181-)
SEAT (HEATED, #0736-, OPT)
STORAGE BOX COVER ASSY
BOTTOM PLATE MOUNTING
BOTTOM PLATE MOUNTING (OPT, #1230-)
STEERING COLUMN (-#0678)
STEERING COLUMN (#0679-)
COWLING
SIDE COWL ASSY (LH)
AIR CLEANER ASSY
SIDE COVER ASSY (LH)
SIDE COWL ASSY (RH)
ENGINE HOOD
UNDER COVER
TOOL BOX MOUNTING
TOOL BOX
GROMMET GROUP
UPPER FRAME & COUNTERWEIGHT
LOWER FRAME & FENDER
SWING RING GREASE LUB SYSTEM
DOZER BLADE-REAR
DOZER BLADE-FRONT
OUTRIGGER MOUNTING-FRONT (OLD)
OUTRIGGER MOUNTING-FRONT (NEW)
OUTRIGGER MOUNTING-REAR
CAB PROTECTOR ASSY (OPTION, #0999-)
BOOM MOUNTING (5.1M, STD)
BOOM MOUNTING (ADJUST BOOM)
BOOM (5.1M, STD)
ADJUST BOOM (#0022-)
ARM (2.6M)
ARM (2.2M, STD)
ARM (3.1M)
BUCKET CONTROL GROUP
BUCKET (0.75M3 SAE HEAPED, STD)
BUCKET (0.39M3 SAE HEAPED)
BUCKET (0.50M3 SAE HEAPED)
BUCKET (0.64M3 SAE HEAPED)
BUCKET (0.89M3 SAE HEAPED)
BUCKET (1.05M3 SAE HEAPED)
BUCKET (0.69M3 SAE HEAPED HEAVY DUTY)
BUCKET (0.75M3 SAE HEAPED D/CLEANING)
TOOLS
HRDT 2.0 TOOL KIT
DECALS
MANUALS
CYLINDER HEAD
VALVE MECHANISM
ROCKER COVER & BREATHER
CAMSHAFT
CRANKCASE ASSY
MAIN BEARING
TIMING GEAR CASE
FLYWHEEL HOUSING
OIL PAN
PISTON & CONNECTING ROD
CRANKSHAFT & FLYWHEEL
TIMING GEAR
INLET & EXHAUST SYSTEM
TURBOCHARGER
OIL PUMP & OIL STRAINER
OIL PIPE
OIL COOLER
OIL FILTER
COOLING SYSTEM
FUEL INJECTION PUMP GENERAL
FEED PUMP
FUEL SYSTEM
NOZZLE
AUTOMATIC TIMER
FUEL FILTER
STARTER
ALTERNATOR GENERAL
ALTERNATOR
CONTROL SYSTEM
ACCESSORY
OVERHAUL GASKET KIT
1
1
2
2
2
3
3
3-1
3-2
3-3
3-4
3-5
4
5
6
7
7
8
9
10

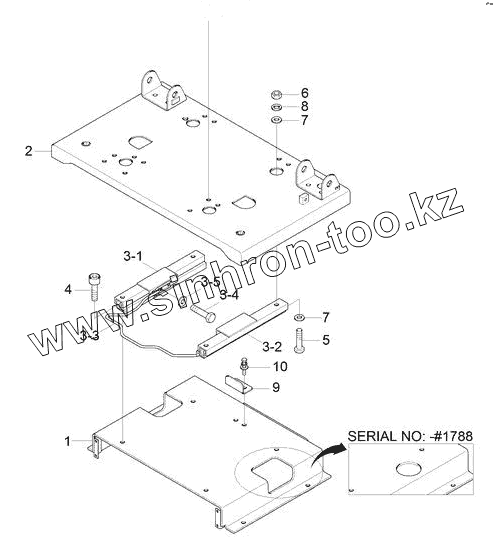

Позиция на иллюстрации
Заводской номер детали
Название детали
71N4-20011
71N4-20011
Seat Base Assy
71N4-20012
71N4-20012
Seat Base Assy
71N4-20140
71N4-20140
Seat Base Assy
1
71N6-21011
Seat Base-Low
1
71N4-20150
Seat Base-Low
2
71N6-21072
Seat Base-Up
2
71N6-21073
Seat Base-Up
2
71N6-21074
Seat Base-Up
3
71N4-21620
Sliding Rail Assy
3
71N4-21720
Sliding Rail Assy
3-1
71N6-21670
Slide Assy-Rh
3-2
71N6-21680
Slide Assy-Lh
3-3
71N6-21690
Lever Assy
3-4
S015-060126
Bolt-Hex
3-5
S403-062006
Washer-Plain
4
S107-080306
Bolt-Socket
5
S017-080256
Bolt-Hex
6
S205-081006
Nut-Hex
7
S403-082006
WASHER-PLAIN
8
S411-080006
WASHER-SPRING
9
71N4-20160
Bracket
10
S035-082526
BOLT-W/WASHER
