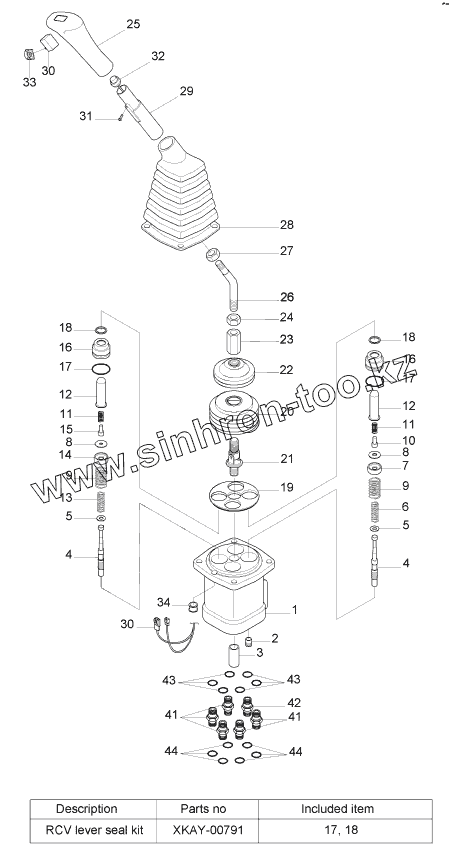

Каталог запасных частей к технике: Hyundai R170W-7. REMOTE CONTROL VALVE (OPT,#0903-)
XKAY-00791
XKAY-00791
1
1
2
2
3
3
4
4
4
4
5
5
5
5
6
6
7
7
8
8
8
8
9
9
9
9
10
10
11
11
11
11
12
12
12
12
13
13
14
14
15
15
16
16
16
16
17
17
17
17
17
17
18
18
18
18
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
25
25
26
26
27
27
28
28
29
29
30
30
30
30
31
31
32
32
33
33
34
34
41
41
41
41
42
42
43
43
43
43
44
44
44
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31N6-27210 | 31N6-27210 | Rcv Lever Sub Assy-Rh | |
| XKAY-00791 | XKAY-00791 | Seal Kit | |
| XKAY-00789 | XKAY-00789 | Handle Kit-Lh | |
| XKAY-00788 | XKAY-00788 | Handle Kit-Rh | |
| XKAY-00777 | XKAY-00777 | Plug Kit | |
| XKAY-00776 | XKAY-00776 | Plug Kit | |
| XKAY-00770 | XKAY-00770 | Spool Kit | |
| XKAY-00769 | XKAY-00769 | Spool Kit | |
| 31N6-27200 | 31N6-27200 | Rcv Lever Sub Assy-Lh | |
| 31N6-27300 | 31N6-27300 | Rcv Lever Assy-Lh | |
| 31N6-27310 | 31N6-27310 | Rcv Lever Assy-Rh | |
| 1 | XKAY-00766 | Case | |
| 2 | XKAY-00065 | PLUG | |
| 3 | XKAY-00768 | BUSHING | |
| 4 | XKAY-00771 | SPOOL | |
| 5 | XKAY-00772 | SHIM | |
| 6 | XKAY-00773 | Spring | |
| 7 | XKAY-00774 | Spring Seat | |
| 8 | XKAY-00058 | STOPPER | |
| 9 | XKAY-00775 | Spring | |
| 10 | XKAY-00778 | Stopper | |
| 11 | XKAY-00779 | Spring | |
| 12 | XKAY-00780 | Push Rod | |
| 13 | XKAY-00781 | Spring | |
| 14 | XKAY-00782 | Spring Seat | |
| 15 | XKAY-00783 | Stopper | |
| 16 | XKAY-00784 | PLUG | |
| 17 | XKAY-00438 | O-RING | |
| 18 | XKAY-00611 | Seal-Rod | |
| 19 | XKAY-00075 | Plate | |
| 20 | XKAY-00786 | BOOT | |
| 21 | XKAY-00049 | JOINT ASSY | |
| 22 | XKAY-00787 | Swash Plate | |
| 23 | XKAY-00047 | NUT-HEX | |
| 24 | XKAY-00790 | Nut | |
| 25 | XKAY-00330 | Handle-Rh | |
| 25 | XKAY-00328 | Handle-Lh | |
| 26 | XKAY-00044 | Connector-Handle | |
| 27 | XKAY-00043 | Nut | |
| 28 | XKAY-00041 | Boot | |
| 29 | XKAY-00327 | Insert | |
| 30 | XKAY-00039 | Switch Assy | |
| 31 | XKAY-00038 | Screw | |
| 32 | XKAY-00037 | Switch Assy | |
| 33 | XKAY-00036 | Cover-Switch | |
| 34 | XKAY-00074 | BUSHING | |
| 41 | X500-110013 | CONNECTOR-ORFS | |
| 42 | 31N6-22080 | Filter-Last Guard | |
| 43 | S631-014004 | O-RING | |
| 44 | S621-011001 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
