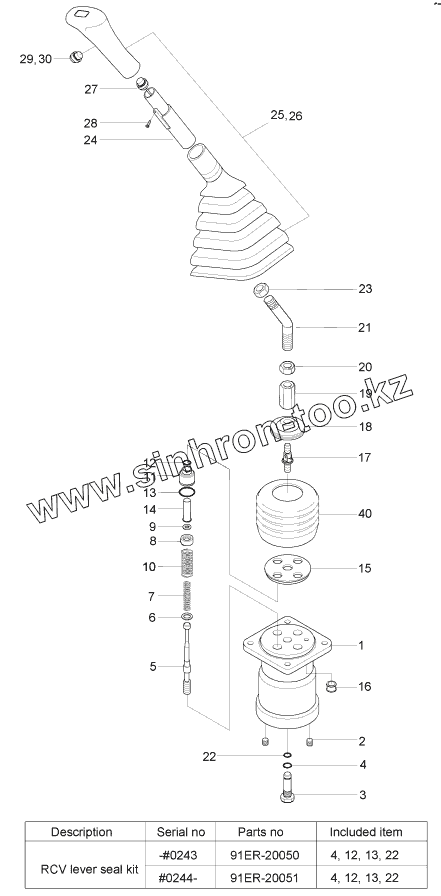

Каталог запасных частей к технике: Hyundai R170W-7. REMOTE CONTROL LEVER (STD)
91ER-20051
91ER-20051
91ER-20050
91ER-20050
1
1
2
2
3
3
4
4
4
4
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
11
11
12
12
12
12
12
12
12
13
13
13
13
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
22
22
23
23
24
24
25
25
26
26
26
26
27
27
28
28
29
29
30
30
40
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31N6-20071 | 31N6-20071 | Rcv Lever-Rh | |
| 91ER-20051 | 91ER-20051 | Seal Kit | |
| 91ER-20050 | 91ER-20050 | Seal Kit | |
| XKAY-00616 | XKAY-00616 | Handle Kit | |
| XKAY-00617 | XKAY-00617 | Handle Kit | |
| XKAY-00608 | XKAY-00608 | Plug Kit | |
| XKAY-00615 | XKAY-00615 | Spool Kit | |
| 31N6-20061 | 31N6-20061 | Rcv Lever-Lh | |
| 1 | XKAY-00077 | Case | |
| 2 | XKAY-00065 | PLUG | |
| 3 | XKAY-00064 | Plug | |
| 4 | XKAY-00063 | O-Ring | |
| 5 | XKAY-00062 | Spool | |
| 6 | XKAY-00061 | Shim | |
| 7 | XKAY-00060 | Spring | |
| 8 | XKAY-00436 | SEAT-SPRING | |
| 9 | XKAY-00058 | STOPPER | |
| 10 | XKAY-00078 | Spring | |
| 11 | XKAY-00610 | Plug | |
| 11 | XKAY-00056 | Plug | |
| 12 | XKAY-00055 | SEAL-ROD | |
| 12 | XKAY-00611 | Seal-Rod | |
| 13 | XKAY-00054 | O-Ring | |
| 14 | XKAY-00052 | ROD-PUSH | |
| 15 | XKAY-00075 | Plate | |
| 16 | XKAY-00074 | BUSHING | |
| 17 | XKAY-00049 | JOINT ASSY | |
| 18 | XKAY-00073 | Swash Plate | |
| 19 | XKAY-00047 | NUT-HEX | |
| 20 | XKAY-00046 | NUT-LOCK | |
| 21 | XKAY-00044 | Connector-Handle | |
| 22 | XKAY-00045 | O-Ring | |
| 23 | XKAY-00043 | Nut | |
| 24 | XKAY-00042 | Insert | |
| 25 | XKAY-00041 | Boot | |
| 26 | XKAY-00040 | Handle-Lh | |
| 26 | XKAY-00076 | Handle-Rh | |
| 27 | XKAY-00039 | Switch Assy | |
| 28 | XKAY-00038 | Screw | |
| 29 | XKAY-00037 | Switch Assy | |
| 30 | XKAY-00036 | Cover-Switch | |
| 40 | XKAY-00072 | Boot |
