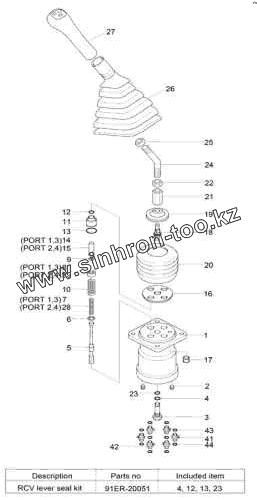

Каталог запасных частей к технике: Hyundai R170W-7. REMOTE CONTROL LEVER
91ER-20051
91ER-20051
1
1
2
2
3
3
4
4
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
12
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
23
23
24
24
25
25
26
26
27
27
27
27
28
28
29
29
41
41
42
42
43
43
44
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31N6-26210 | 31N6-26210 | Rcv Lever Sub Assy-Rh | |
| 91ER-20051 | 91ER-20051 | Seal Kit | |
| XKAY-00808 | XKAY-00808 | Handle Kit | |
| XKAY-00807 | XKAY-00807 | Handle Kit | |
| XKAY-00806 | XKAY-00806 | Plug Kit | |
| XKAY-00805 | XKAY-00805 | Plug Kit | |
| XKAY-00803 | XKAY-00803 | Spool Kit | |
| XKAY-00802 | XKAY-00802 | Spool Kit | |
| 31N6-26200 | 31N6-26200 | Rcv Lever Sub Assy-Lh | |
| 31N6-26300 | 31N6-26300 | Rcv Lever Assy-Lh | |
| 31N6-26310 | 31N6-26310 | Rcv Lever Assy-Rh | |
| 1 | XKAY-00077 | Case | |
| 2 | XKAY-00065 | PLUG | |
| 3 | XKAY-00064 | Plug | |
| 4 | XKAY-00063 | O-Ring | |
| 5 | XKAY-00062 | Spool | |
| 6 | XKAY-00061 | Shim | |
| 7 | XKAY-00804 | Spring | |
| 8 | XKAY-00436 | SEAT-SPRING | |
| 9 | XKAY-00058 | STOPPER | |
| 10 | XKAY-00078 | Spring | |
| 11 | XKAY-00784 | PLUG | |
| 12 | XKAY-00611 | Seal-Rod | |
| 13 | XKAY-00054 | O-Ring | |
| 14 | XKAY-00052 | ROD-PUSH | |
| 15 | XKAY-00439 | Rod-Push | |
| 16 | XKAY-00075 | Plate | |
| 17 | XKAY-00074 | BUSHING | |
| 18 | XKAY-00049 | JOINT ASSY | |
| 19 | XKAY-00612 | Plate-Swash | |
| 20 | XKAY-00072 | Boot | |
| 21 | XKAY-00047 | NUT-HEX | |
| 22 | XKAY-00046 | NUT-LOCK | |
| 23 | XKAY-00045 | O-Ring | |
| 24 | XKAY-00810 | Bar-Handle | |
| 25 | XKAY-00811 | NUT | |
| 26 | XKAY-00041 | Boot | |
| 27 | XKAY-00812 | Handle Assy-Rh | |
| 27 | XKAY-00813 | Handle Assy-Lh | |
| 28 | XKAY-00814 | Spring | |
| 29 | XKAY-00059 | Seat-Spring | |
| 41 | X500-110001 | CONNECTOR-ORFS | |
| 42 | 31N6-25060 | FILTER-LAST GUARD | |
| 43 | S631-011004 | O-RING | |
| 44 | S621-011001 | O-RING |
