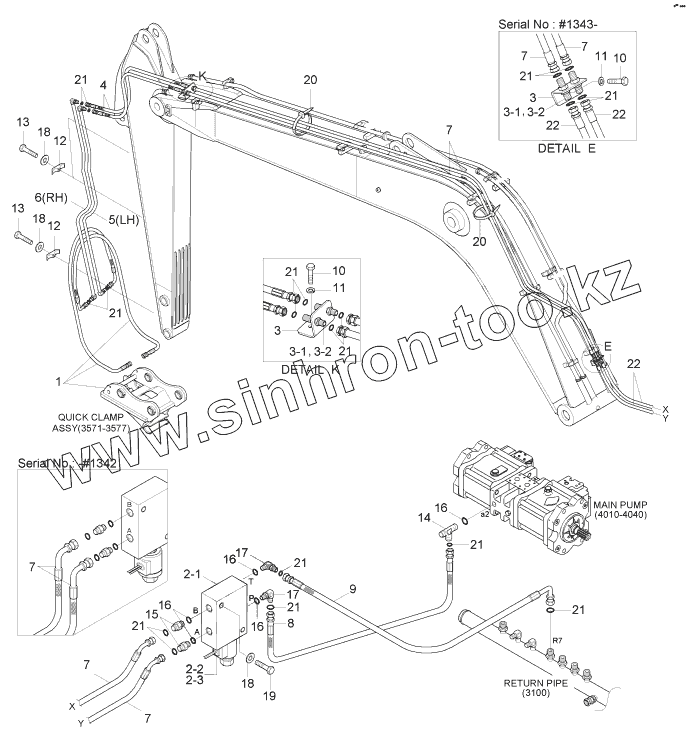

Каталог запасных частей к технике: Hyundai R170W-7. QUICK CLAMP HYD PIPING (#0092-)
1
21
21
21
21
21
21
21
21
21
21
21
1
21
21
21
21
21
21
21
21
21
21
21
2
2-1
2-2
2-3
3
3
3-1
3-1
3-2
3-2
4
4
4
5
5
6
6
7
7
7
7
7
7
7
7
7
8
8
9
10
10
11
11
12
12
13
13
14
15
16
16
16
16
17
17
18
18
18
19
20
20
22
22
22
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Quick Clamp Assy | Quick Clamp Assy | |
| 21 | S621-011001 | O-RING | |
| 1 | Quick Clamp Assy | Quick Clamp Assy | |
| 21 | S621-011001 | O-RING | |
| QuickClampPiping | QuickClampPiping | Quick Clamp Piping | |
| 2 | 34EA-91720 | Solenoid Valve | |
| 2-1 | 34EA-91720B | Manifold | |
| 2-2 | GS044200NC | VALVE-SOLENOID | |
| 2-3 | CAP024L+DT | Coil | |
| 3 | 31N4-90680 | Termainal-Q/Clamp | |
| 3-1 | X540-120001 | CONNECTOR-ORFS | |
| 3-2 | S621-011001 | O-RING | |
| 4 | P913-047034 | Hose Assy-Orfs 0x0 | |
| 4 | P913-047028 | Hose Assy-Orfs 0x0 | |
| 4 | P913-047037 | Hose Assy-Orfs 0x0 | |
| 5 | 31N5-90530 | Pipe Assy | |
| 5 | 31N5-90540 | Pipe Assy | |
| 6 | 31N5-90550 | Pipe Assy | |
| 6 | 31N5-90560 | Pipe Assy | |
| 7 | P920-047144 | Hose Assy-Orfs 0x45 | |
| 7 | P910-047091 | Hose Assy-Orfs 0x0 | |
| 7 | P920-047150 | Hose Assy-Orfs 0x45 | |
| 7 | P910-047097 | Hose Assy-Orfs 0x0 | |
| 8 | P910-047030 | Hose Assy-Orfs 0x0 | |
| 8 | 31N4-95750 | Hose Assy | |
| 9 | P930-042009 | Hose Assy-Orfs 0x90 | |
| 10 | S017-160752 | Bolt-Hex | |
| 11 | S411-160002 | Washer-Spring | |
| 12 | 34EA-91811 | CLAMP-PIPE | |
| 13 | S017-100302 | Bolt-Hex | |
| 14 | 31N4-22170 | TEE-RUN TYPE | |
| 15 | X500-110001 | CONNECTOR-ORFS | |
| 16 | S631-011004 | O-RING | |
| 17 | X520-110001 | ELBOW-90,ORFS | |
| 18 | S441-100002 | Washer-Hardened | |
| 19 | S017-100502 | Bolt-Hex | |
| 20 | S554-054300 | CLAMP-BAND | |
| 22 | P920-047049 | Hose Assy-Orfs 0x45 |
