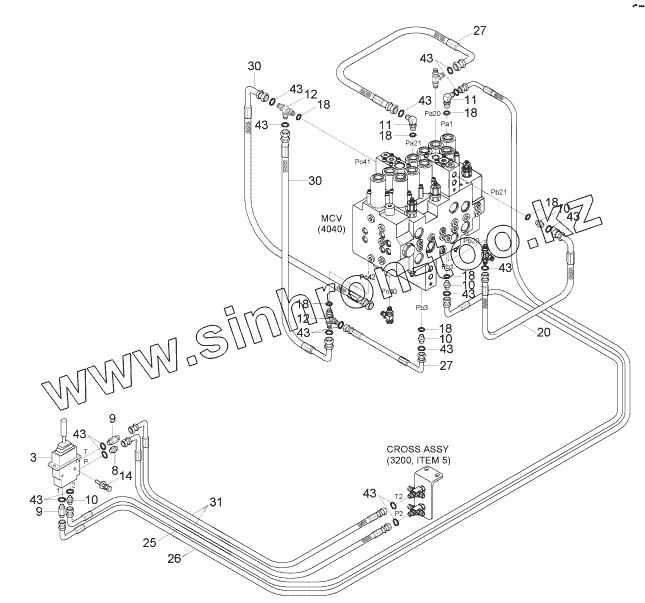

PILOT HYD PIPING (CONTROL 3, -#0429)
Каталог запасных частей к технике: Hyundai R170W-7. PILOT HYD PIPING (CONTROL 3, -#0429)
