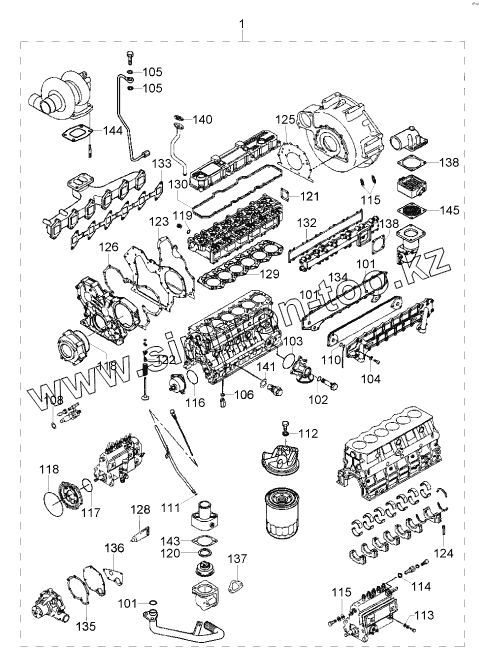

OVERHAUL GASKET KIT
1
101
101
101
102
103
104
105
105
106
108
110
111
112
113
114
115
115
116
117
118
118
119
120
121
122
123
124
125
126
128
129
130
132
133
134
135
136
137
138
138
140
141
143
144
145
Позиция на иллюстрации
Заводской номер детали
Название детали
1
XJAF-00827
Overhaul Gasket Kit
101
XJAF-00700
O-Ring
102
XJAF-00828
O-Ring
103
XJAF-00721
O-Ring
104
XJAF-00712
Gasket
105
XJAF-00371
Gasket
106
XJAF-00703
Gasket
108
XJAF-00748
Gasket-Nozzle Holder
109
XJAF-00392
O-Ring
110
XJAF-00713
O-Ring
111
XJAF-00276
O-Ring
112
XJAF-00563
Washer-Sealing
113
XJAF-00206
Washer-Sealing
114
XJAF-00566
Washer-Sealing
115
XJAF-00271
Washer-Sealing
116
XJAF-00697
O-Ring
117
XJAF-00565
O-Ring
118
XJAF-00448
O-Ring
119
XJAF-00560
Gasket-Inlet Manifold
120
XJAF-00734
Gasket-Water Pump
121
XJAF-00575
Gasket-Cylinder Head
122
XJAF-00581
Seal-Valve Stem
123
XJAF-00623
Gasket-Front Plate
124
XJAF-00610
Seal-Side
125
XJAF-02596
Gasket-Rear
126
XJAF-00625
Gasket-Gear Case
127
XJAF-00829
Gasket-Exhaust
128
XJAF-00830
Gasket-Thermo Case
129
XJAF-00577
Gasket-Cylinder Head
130
XJAF-00590
Gasket-Rocker Cover
131
XJAF-00831
Gasket-Oil Pan
132
XJAF-00832
Gasket-Air Heater
133
XJAF-00679
Gasket-Exhaust
134
XJAF-00833
Gasket-Oil Cooler
135
XJAF-00728
Gasket-Water Pump
136
XJAF-00724
Gasket
137
XJAF-00737
Gasket-Water Pump
138
XJAF-00315
Gasket-Ex/Manifold
139
XJAF-00834
Gasket
140
XJAF-00369
Gasket-Oil Pipe
141
XJAF-00394
Gasket
142
XJAF-00835
Gasket
143
XJAF-00423
Gasket
144
XJAF-00683
Gasket
145
XJAF-00320
Gasket
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
