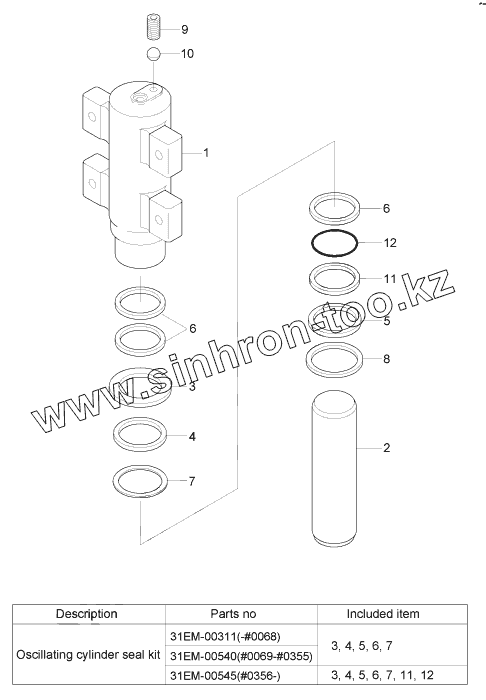

31EM-00545
31EM-00540
31EM-00311
1
1
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
6
6
6
6
7
7
7
7
8
8
9
10
11
11
12
12
Позиция на иллюстрации
Заводской номер детали
Название детали
31EM-00551
31EM-00551
Cylinder-Oscillating
31EM-00545
31EM-00545
Seal Kit
31EM-00540
31EM-00540
Seal Kit
31EM-00551BG
31EM-00551BG
Cylinder-Oscillating
31EM-00301
31EM-00301
Cylinder-Oscillating
31EM-00550
31EM-00550
Cylinder-Oscillating
31EM-00311
31EM-00311
Seal Kit
1
31EM-00321
Body-Cylinder
1
31EM-00561
BODY-CYLINDER
2
31EM-00330
Rod-Cylinder
2
31EM-00570
ROD-CYLINDER
3
Y240-110011
Ring-Buffer
3
Y240-100011
Ring-Buffer
4
Y200-100011
Seal-Rod
4
Y200-110011
Seal-Rod
5
Y110-100011
WIPER-DUST
5
Y110-110011
WIPER-DUST
6
Y320-090004
Ring-Wear
6
Y320-110004
Ring-Wear
7
Y180-100020
RING-BACK UP
7
Y180-110020
RING-BACK UP
8
Y190-126000
RING-SNAP
8
31E3-00340
Retainer Ring
9
31E3-0038
Screw-Set
10
31E3-0039
Ball-Steel
11
S641-110002
Ring-Back Up
12
S631-110001
O-Ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
