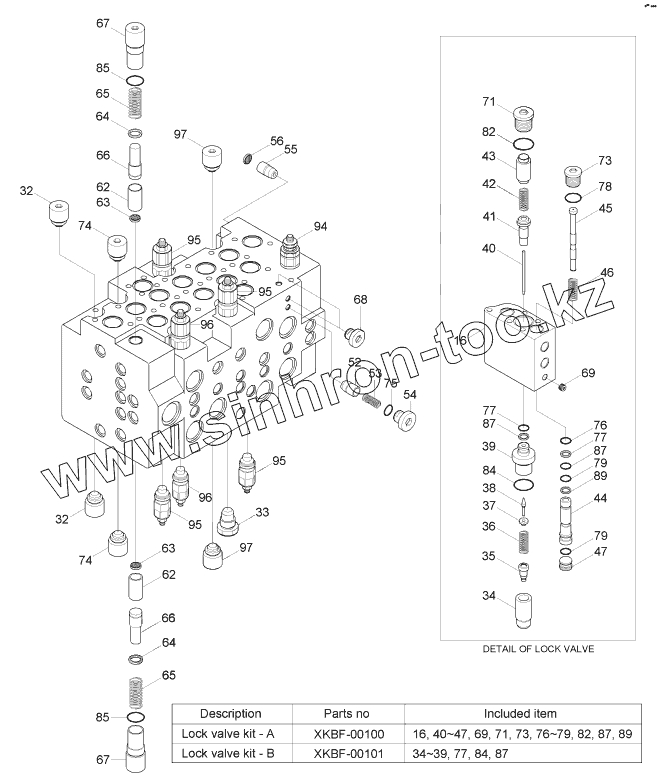

Каталог запасных частей к технике: Hyundai R170W-7. MAIN CONTROL VALVE (4/4)
XKBF-00100
XKBF-00101
16
16
32
32
33
34
34
35
36
37
38
39
39
40
40
41
42
43
44
45
46
47
47
52
53
54
55
56
62
62
62
63
63
64
64
65
65
66
66
67
67
68
69
69
71
71
73
73
74
74
75
76
76
77
77
77
78
78
79
79
79
82
84
84
85
85
87
87
87
87
89
89
94
95
95
95
96
96
97
97
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| XKBF-00100 | XKBF-00100 | Lock Valve Kit-A | |
| XKBF-00101 | XKBF-00101 | Lock Valve Kit-B | |
| MainControlValve | MainControlValve | Main Control Valve | |
| 16 | XKBF-00016 | Block-Holding | |
| 32 | XKBF-00096 | Plug-Relief Valve | |
| 33 | XKBF-00097 | Plug-Relief Valve | |
| 34 | XKBF-00034 | Valve-Lock | |
| 35 | XKBF-00035 | Restrictor-Lock Vlv | |
| 36 | XKBF-00036 | Spring-Lock Valve | |
| 37 | XKBF-00037 | Holder-Spring | |
| 38 | XKBF-00908 | Poppet-Pilot | |
| 39 | XKBF-00909 | Seat-Poppet | |
| 40 | XKBF-00040 | Piston 1 | |
| 41 | XKBF-00041 | Guide-Piston | |
| 42 | XKBF-00042 | Spring-Lock Valve | |
| 43 | XKBF-00043 | Piston 2 | |
| 44 | XKBF-00044 | Socket-Lock Valve | |
| 45 | XKBF-00045 | Spool-Lock Valve | |
| 46 | XKBF-00046 | Spring-Lock Valve | |
| 47 | XKBF-00047 | Plug-Lock Valve | |
| 52 | XKBF-00052 | Valve-Check | |
| 53 | XKBF-00053 | Spring-Check Valve | |
| 54 | XKBF-00054 | Plug | |
| 55 | XKBF-00055 | Restrictor | |
| 56 | XKBF-00056 | Filter-Coin Type | |
| 62 | XKBF-00062 | Poppet-Negative | |
| 63 | XKBF-00063 | Filter-Coin Type | |
| 64 | XKBF-00064 | Holder-Spring | |
| 65 | XKBF-00065 | Spring-Negative | |
| 66 | XKBF-00066 | Piston-Negative | |
| 67 | XKBF-00067 | Socket-Negative | |
| 68 | XKBF-00068 | Plug-Socket Head | |
| 69 | XKBF-00069 | Plug-Socket Head | |
| 71 | XKBF-00071 | Plug | |
| 73 | XKBF-00073 | Plug | |
| 74 | XKBF-00098 | Plug-Relief Valve | |
| 75 | XKBF-00075 | O-Ring | |
| 76 | XKBF-00076 | O-Ring | |
| 77 | XKBF-00077 | O-Ring | |
| 78 | XKBF-00077 | O-Ring | |
| 78 | XKBF-00077 | O-Ring | |
| 79 | XKBF-00079 | O-Ring | |
| 82 | XKBF-00082 | O-Ring | |
| 84 | XKBF-00084 | O-Ring | |
| 85 | XKBF-00085 | O-Ring | |
| 87 | XKBF-00087 | Ring-Back Up | |
| 89 | XKBF-00089 | Ring-Back Up | |
| 94 | XKBF-00094 | Relief Valve-Main | |
| 95 | XKBF-00095 | Relief Valve-Overload | |
| 96 | XKBF-00099 | Relief Valve-Overload | |
| 97 | XKBF-00116 | Acv Comp |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
