LOWER HYD PIPING (REAR BLADE)

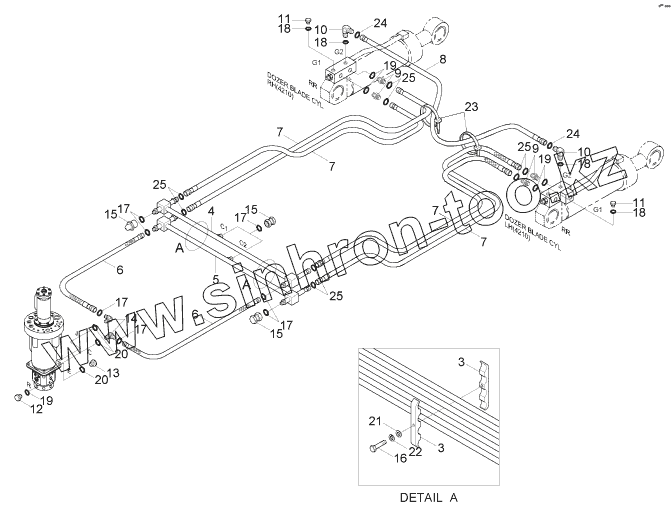

Каталог запасных частей к технике: Hyundai R170W-7. LOWER HYD PIPING (REAR BLADE)
