Каталог запасных частей к технике: Hyundai R170W-7. LOWER HYD PIPING 2 (-#0978)
5
6
7
7
7
14
14
14
15
15
15
19
19
19
19
19
26
26
26
29
29
29
31
31
33
33
33
36
36
38
38
38
38
41
43
43
44
44
48
50
54
54
54
54
54
54
54
54
59
59
62
64
64
65
65
65
70
70
70
71
71
71
71
72
72
72
72
73
73
73
73
74
74
74
74
74
74
74
74
75
75
75
75
75
75

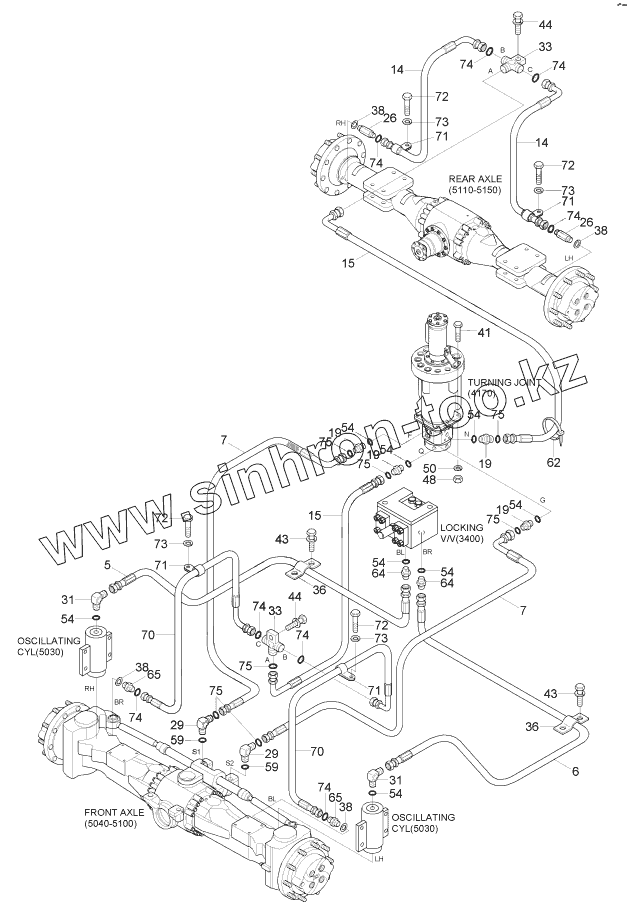

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| LowerHydPiping1 | LowerHydPiping1 | Lower Hyd Piping 1 | |
| 5 | 31EK-40250 | Pipe Assy | |
| 6 | 31EK-40260 | Pipe Assy | |
| 7 | P623-066035 | Hose Assy-Thd 0x90 | |
| 7 | P933-066035 | Hose Assy-Orfs 0x90 | |
| 14 | P603-046021 | Hose Assy-Thd | |
| 14 | P913-047020 | Hose Assy-Orfs 0x0 | |
| 15 | P623-064028 | Hose Assy-Thd 0x90 | |
| 15 | P933-064028 | Hose Assy-Orfs 0x90 | |
| 19 | P010-110003 | Connector | |
| 19 | X500-110002 | CONNECTOR-ORFS | |
| 26 | P102-214045 | Connector-Long | |
| 26 | X512-214515 | Connector-Long,Orfs | |
| 29 | P020-210006 | Elbow-90 | |
| 29 | X520-210004 | Elbow-90,Orfs | |
| 31 | 31E3-3175 | Elbow-90 | |
| 33 | 31EM-45430 | Tee-Brake | |
| 33 | 31N5-41030 | Tee-Mountingg | |
| 36 | 31E4-3097 | Strap | |
| 38 | P392-140000 | Washer-Copper | |
| 41 | S017-120452 | Bolt-Hex | |
| 43 | S035-081512 | Bolt-W/Washer | |
| 44 | S037-103542 | Bolt-W/Washer | |
| 48 | S207-121002 | Nut-Hex | |
| 50 | S411-120006 | WASHER-SPRING | |
| 54 | S631-014004 | O-RING | |
| 59 | Y161-018001 | O-Ring | |
| 62 | S552-102370 | Clamp-Band | |
| 64 | 31E3-3113 | Connector | |
| 65 | P010-220002 | Connector | |
| 65 | X500-220002 | Connector-Orfs | |
| 70 | P603-046023 | Hose Assy-Thd | |
| 70 | P913-047023 | Hose Assy-Orfs 0x0 | |
| 71 | S541-180002 | Clamp-Tube | |
| 72 | S016-060102 | Bolt-Hex | |
| 73 | S411-060002 | WASHER-SPRING | |
| 74 | S621-011001 | O-RING | |
| 75 | S621-012001 | O-RING |
