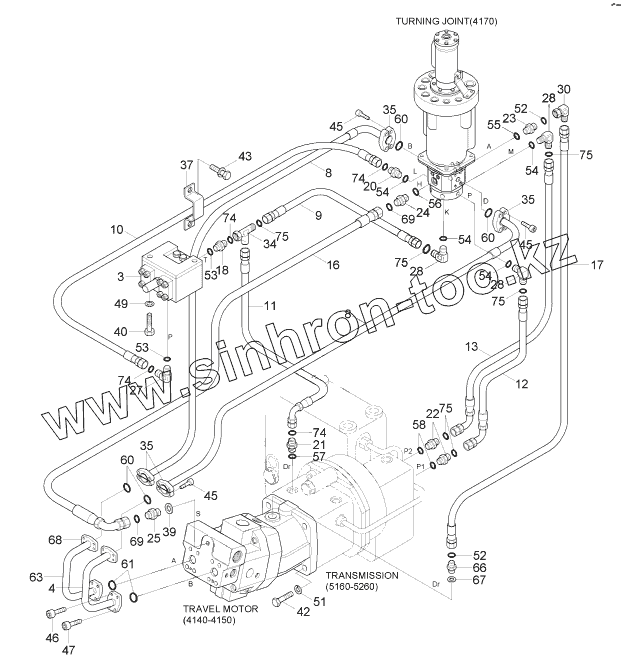

Каталог запасных частей к технике: Hyundai R170W-7. LOWER HYD PIPING 1 (-#0978)
3
4
8
8
9
9
10
10
11
11
12
12
13
13
16
17
18
18
20
20
21
21
22
22
23
24
25
27
27
28
28
28
28
30
34
34
35
35
35
37
39
40
42
43
45
45
45
46
47
49
51
52
52
53
53
54
54
54
54
55
56
57
58
60
60
60
61
63
66
67
68
69
69
74
74
74
74
75
75
75
75
75
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| LowerHydPiping1 | LowerHydPiping1 | Lower Hyd Piping 1 | |
| 3 | 81E3-0014 | Valve-Locking | |
| 4 | 31N5-41010 | Pipe Assy | |
| 8 | P703-127317 | Hose Assy-Flg 0x90 | |
| 9 | P603-062019 | Hose Assy-Thd | |
| 9 | P913-062019 | Hose Assy-Orfs 0x0 | |
| 10 | P613-042026 | Hose Assy-Thd 0x45 | |
| 10 | P923-042026 | Hose Assy-Orfs 0x45 | |
| 11 | P623-042013 | Hose Assy-Thd 0x90 | |
| 11 | P933-042013 | Hose Assy-Orfs 0x90 | |
| 12 | P623-062011 | Hose Assy-Thd 0x90 | |
| 12 | P923-062011 | Hose Assy-Orfs 0x45 | |
| 13 | P623-062013 | Hose Assy-Thd 0x90 | |
| 13 | P923-062013 | Hose Assy-Orfs 0x45 | |
| 16 | P933-122020 | Hose Assy-Orfs 0x90 | |
| 17 | P933-082026 | Hose Assy-Orfs 0x90 | |
| 18 | P010-110002 | Connector | |
| 18 | X500-110001 | CONNECTOR-ORFS | |
| 20 | P010-110013 | Connector | |
| 20 | X500-110013 | CONNECTOR-ORFS | |
| 21 | P010-210002 | Connector | |
| 21 | X500-210002 | Connector-Orfs | |
| 22 | P010-210005 | Connector | |
| 22 | X500-210005 | Connector-Orfs | |
| 23 | X500-110003 | CONNECTOR-ORFS | |
| 24 | X500-110004 | CONNECTOR-ORFS | |
| 25 | X500-220010 | Connector-Orfs | |
| 27 | P020-110001 | ELBOW-90 | |
| 27 | X520-110001 | ELBOW-90,ORFS | |
| 28 | X520-110002 | ELBOW-90,ORFS | |
| 28 | P020-110002 | Elbow-90 | |
| 30 | X850-535300 | Elbow-90,Orfs | |
| 34 | 31M6-51160 | Tee-R/Type,S/Nut | |
| 34 | X840-515152 | Tee-R/Type,Orfs | |
| 35 | P173-120102 | FLANGE-HYD,SPLIT | |
| 37 | 31EK-70400 | Clamp-Hose | |
| 39 | P392-270000 | Washer-Copper | |
| 40 | S015-080802 | Bolt-Hex | |
| 42 | S017-160502 | Bolt-Hex | |
| 43 | S035-081512 | Bolt-W/Washer | |
| 45 | S109-100306 | BOLT-SOCKET | |
| 46 | S109-120406 | BOLT-SOCKET | |
| 47 | S109-121056 | BOLT-SOCKET | |
| 49 | S411-080006 | WASHER-SPRING | |
| 51 | S411-160006 | WASHER-SPRING | |
| 52 | S621-014001 | O-RING | |
| 53 | S631-011004 | O-RING | |
| 54 | S631-014004 | O-RING | |
| 55 | S631-018004 | O-RING | |
| 56 | S631-024004 | O-RING | |
| 57 | Y161-014001 | O-RING | |
| 58 | Y161-016001 | O-Ring | |
| 60 | Y171-019004 | O-RING | |
| 61 | Y171-024004 | O-RING | |
| 63 | 31N5-41020 | Pipe Assy | |
| 66 | X500-220007 | Connector-Orfs | |
| 67 | P392-180000 | Washer-Copper | |
| 68 | P174-160115 | FLANGE-SPLIT | |
| 69 | S621-018001 | O-RING | |
| 74 | S621-011001 | O-RING | |
| 75 | S621-012001 | O-RING |
