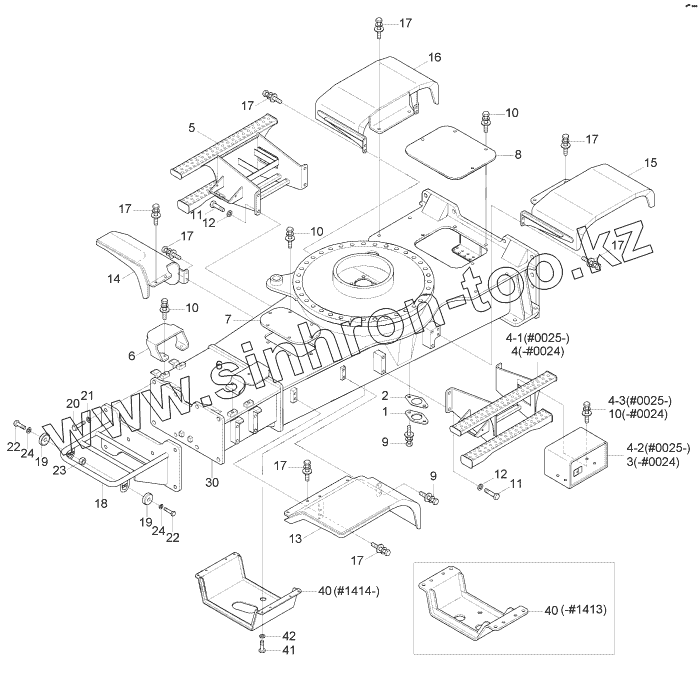

Каталог запасных частей к технике: Hyundai R170W-7. LOWER FRAME & FENDER
10
10
10
10
1
2
3
4
4
4
4-1
4-1
4-2
4-3
5
5
5
6
6
6
6
7
7
7
8
8
8
9
9
11
11
12
12
13
13
13
14
14
14
15
15
15
16
16
16
17
17
17
17
17
17
17
17
18
19
19
20
21
22
22
23
24
24
30
30
30
30
40
40
40
40
40
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | S037-122556 | BOLT-W/WASHER | |
| 1 | 41N6-10100 | COVER | |
| 2 | 41E9-1306 | SEAL | |
| 3 | 51EM-23000 | Tool Box Assy | |
| 4 | 51EK-24010 | Foot Board Wa-Lh | |
| 4 | 51EK-24500 | Foot Board Assy-Lh | |
| 4 | 53N5-24500 | Foot Board Assy-Lh | |
| 4-1 | 53N5-24010 | Foot Board Wa-Lh | |
| 4-1 | 53N5-24011 | Foot Board Wa-Lh | |
| 4-2 | 51EM-23000BG | Tool Box Assy | |
| 4-3 | S037-122556 | BOLT-W/WASHER | |
| 5 | 51EK-24020 | Foot Board Wa-Rh | |
| 5 | 51EK-24021 | Foot Board Wa-Rh | |
| 5 | 53N5-24020 | Foot Board Wa-Rh | |
| 6 | 51EK-21011 | Cover-O/Cylinder | |
| 6 | 51EK-21011BG | Cover-O/Cylinder | |
| 7 | 51EK-20810 | Cover | |
| 7 | 53N5-20810 | Cover | |
| 7 | 53N5-20811 | Cover | |
| 8 | 51EK-20820 | Cover | |
| 8 | 53N5-20820 | Cover | |
| 8 | 53N5-20821 | Cover | |
| 9 | S037-102556 | BOLT-W/WASHER | |
| 11 | S017-20035D | Bolt-Hex | |
| 12 | S441-200006 | WASHER-HARDENED | |
| 13 | 51EK-20012 | Fender Wa-Lh,Fr | |
| 13 | 53N5-20010 | Fender Wa-Lh,Fr | |
| 13 | 53N5-20011 | Fender Wa-Lh,Fr | |
| 14 | 51EK-20022 | Fender Wa-Rh,Fr | |
| 14 | 53N5-20020 | Fender Wa-Rh,Fr | |
| 14 | 53N5-20021 | Fender Wa-Rh,Fr | |
| 15 | 51EK-20112 | Fender Wa-Lh,Rr | |
| 15 | 53N5-20110 | Fender Wa-Lh,Rr | |
| 15 | 53N5-20111 | Fender Wa-Lh,Rr | |
| 16 | 51EK-20122 | Fender Wa-Rh,Rr | |
| 16 | 53N5-20120 | Fender Wa-Rh,Rr | |
| 16 | 53N5-20121 | Fender Wa-Rh,Rr | |
| 17 | S037-122552 | Bolt-W/Washer | |
| 18 | 51EK-61010 | Bucket Rest Wa | |
| 19 | 51EK-61990 | REFLECTOR | |
| 20 | S018-300602 | Bolt-Hex | |
| 21 | S441-300002 | Washer-Hardened | |
| 22 | S105-060202 | BOLT-SOCKET | |
| 23 | S205-063002 | Nut-Hex | |
| 24 | S421-060002 | WASHER-LOCK | |
| 30 | 53N5-07010 | Lower Frame Wa | |
| 30 | 53N5-07011 | Lower Frame Wa | |
| 30 | 53N5-07012 | Lower Frame Wa | |
| 30 | 53N5-07013 | Lower Frame Wa | |
| 40 | 81EK-40050 | Protect Cover-Mission | |
| 40 | 81EK-40050BG | Protector-Mission | |
| 40 | 81EK-40051 | Protector-Mission | |
| 41 | S017-120252 | Bolt-Hex | |
| 42 | S411-120002 | WASHER-SPRING | |
| 50 | 81Q4-10580 | Wheel Chock |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
