Каталог запасных частей к технике: Hyundai R170W-7. FUSE BOX

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано R140W-9 (2013) R140W-9S (2013) R16-9 (2013) R170W-7 (2013) R170W-9 (2013) R170W-9S (2013) R180LC-9 (2013) R180LC-9S (2013) R180W-9S (2013) R210LC-9 (2013) R210NLC-9 (2013) R210W-9 (2013) R330LC-9A (2013) R330LC-9S (2013) R330LC-9SH (2013)

Схема > Не выбрано ENGINE MOUNTING ENGINE CONTROL SYSTEM AIR INTAKE SYSTEM EXHAUST SYSTEM COOLING SYSTEM RADIATOR ASSY FUEL SYSTEM FUEL TANK AIRCON & HEATER MOUNTING AIRCON & HEATER UNIT (-#0498) AIRCON & HEATER UNIT (#0499-) AIR CONDITIONER MOUNTING AIR CONDITIONER UNIT (-#0022) AIR CONDITIONER UNIT (#0023-) HEATER MOUNTING HEATER UNIT (-#0498) HEATER UNIT (#0499-) AIRCON & HEATER MOUNTING (AUTO) AIRCON & HEATER UNIT-FATC PRE HEATING GROUP (#0486-) RH ELECTRIC LH ELECTRIC BOOM ELECTRIC (STD) BOOM ELECTRIC (ADJUST BOOM, #0022-) ENGINE ELECTRIC ELECTRIC BOX CAB ELECTRIC 1 CAB ELECTRIC 2 CLUSTER CLUSTER (OPT, #1230-) CAB ELECTRIC 2 (OPT, #1230-) CAB ELECTRIC 3 FUEL FILLER PUMP (-#1319) FUEL FILLER PUMP (#1320-) FUSE BOX PUMP MOUNTING HYDRAULIC TANK UPPER HYD PIPING (BASE) UPPER HYD PIPING (ATTACH) UPPER HYD PIPING 1 (ADJUST BOOM, #0022-) UPPER HYD PIPING 2 (ADJUST BOOM, #0022-) UPPER HYDRAULIC PIPING (TRAVEL) PILOT HYD PIPING (CONTROL 1, -#0429) PILOT HYD PIPING (CONTROL 2, -#0429) PILOT HYD PIPING (CONTROL 3, -#0429) PILOT HYD PIPING (CONTROL 1, #0430-) PILOT HYD PIPING (CONTROL 2, #0430-) PILOT HYD PIPING (BASE 1) PILOT HYD PIPING (BASE 1, 2-BLOCK, OPT) PILOT HYD PIPING (BASE 2) PILOT HYD PIPING (BASE 2, 2-BLOCK, OPT) PILOT HYD PIPING (BASE 3) PILOT HYD PIPING (BASE 4, #0430-) PILOT HYD PIPING (BASE 3, 2-BLOCK, OPT) PILOT HYD PIPING (4 OUTRIGGER) POWER TRAIN HYD PIPING 1 (-#0978) POWER TRAIN HYD PIPING 2 (-#0978) POWER TRAIN HYD PIPING 1 (#0979-) POWER TRAIN HYD PIPING 2 (#0979-) LOWER HYD PIPING 1 (-#0978) LOWER HYD PIPING 2 (-#0978) LOWER HYD PIPING 1 (#0979-) LOWER HYD PIPING 2 (#0979-) LOWER HYD PIPING (REAR BLADE) LOWER HYD PIPING (REAR OUTRIGGER) LOWER HYD PIPING 1 (4 OUTRIGGER) LOWER HYD PIPING 2 (4 OUTRIGGER) LOWER HYD PIPING 1 (F/OUT R/BLD) LOWER HYD PIPING 2 (F/OUT R/BLD) LOWER HYD PIPING 1 (F/BLD R/OUT) LOWER HYD PIPING 2 (F/BLD R/OUT) LOWER HYD PIPING 1 (F/BLD R/BLD, #0092-) LOWER HYD PIPING 2 (F/BLD R/BLD, #0092-) BOOM HYD PIPING (5.1M, STD) BOOM HYD PIPING (ADJUST BOOM, #0022-) BOOM GREASE LUB SYSTEM (5.1M,STD) BOOM GREASE LUB SYSTEM (ADJ/BOOM, #0022-) BOOM SAFETY LOCK SYSTEM ARM HYD PIPING (2.6M) ARM HYD PIPING (2.2M, STD) ARM HYD PIPING (3.1M) ARM SAFETY LOCK SYSTEM QUICK CLAMP HYD PIPING (#0092-) QUICK CLAMP (HOOK TYPE, #0728-) QUICK CLAMP (CLOSE TYPE, #0728-) QUICK CLAMP CYLINDER (#0728-) QUICK CLAMP ASSY (#0092-) QUICK CLAMP CYLINDER (#0092-) QUICK CLAMP ASSY (#0590-) DOUBLE ACTING HYD PIPING KIT 1 DOUBLE ACTING HYD PIPING KIT 2 ATTACH PIPING KIT (S & D/ACTING) DOUBLE ACTING MAIN PIPING KIT SINGLE PEDAL (DOUBLE ACTING) D/ACT MAIN PIPING KIT (ADJUST BOOM) D/ACT ATTACH PIPING KIT (ADJUST BOOM) SINGLE ACTING HYD PIPING KIT 1 SINGLE ACTING HYD PIPING KIT 2 SINGLE ACTING MAIN PIPING KIT MAIN PUMP REGULATOR GEAR PUMP MAIN CONTROL VALVE (1/4) MAIN CONTROL VALVE (2/4) MAIN CONTROL VALVE (3/4) MAIN CONTROL VALVE (4/4) SWING MOTOR (TYPE 1) SWING REDUCTION GEAR (TYPE 1) SWING REACTIONLESS VALVE BLOCK (TYPE 1) SWING MOTOR (TYPE 2, #1809-) SWING REDUCTION GEAR (TYPE 2, #1809-) REMOTE CONTROL LEVER (STD) REMOTE CONTROL LEVER REMOTE CONTROL VALVE (OPT,#0903-) REMOTE CONTROL PEDAL TRAVEL MOTOR (1/2, -#0196) TRAVEL MOTOR (1/2, #0197-) TRAVEL MOTOR (2/2, -#0196) TRAVEL MOTOR (2/2, #0197-) COUNTER BALANCE VALVE (-#0196) COUNTER BALANCE VALVE (#0197-) TURNING JOINT BOOM CYLINDER BOOM CYLINDER (ADJUST BOOM, #0022-) ARM CYLINDER BUCKET CYLINDER DOZER BLADE CYLINDER OUTRIGGER CYLINDER ADJUST CYLINDER (#0022-) 5-SOLENOID VALVE STEERING VALVE TRANSMISSION CONTROL VALVE (-#0978) TRAVEL CONTROL VALVE (#0979-) BRAKE SUPPLY VALVE BRAKE VALVE POWER TRAIN MOUNTING PROPELLER SHAFT (-#2468) PROPELLER SHAFT (#2469-) OCCILLATING CYLINDER FRONT AXLE INPUT GROUP (-#0978) FRONT AXLE DIFFERENTIAL (-#0978) FRONT AXLE CASING (-#0978) FRONT AXLE JOINT HOUSING (-#0978) FRONT AXLE OUTPUT GROUP (-#0978) FRONT AXLE STEERING GEAR (-#0978) FRONT AXLE UNIVERSAL JOINT (-#0978) REAR AXLE INPUT GROUP (-#0978) REAR AXLE DIFFERENTIAL (-#0978) REAR AXLE CASING (-#0978) REAR AXLE HUB CARRIER (-#0978) REAR AXLE OUTPUT GROUP (-#0978) TRANSMISSION INPUT HOUSING (-#0978) TRANSMISSION INPUT GROUP (-#0978) TRANSMISSION HOUSING (-#0978) TRANSMISSION OIL PIPE (-#0978) TRANSMISSION COUPLING (-#0978) TRANSMISSION MULTI-DISC BRAKE (-#0978) TRANSMISSION PLANETARY DRIVE (-#0978) TRANSMISSION DISCONNETION (-#0978) TRANSMISSION SPUR GEAR DRIVE (-#0978) TRANSMISSION GEAR SHIFT SENSOR (-#0978) TRANSMISSION OUTPUT GROUP (-#0978) FRONT AXLE INPUT GROUP (#0979-) FRONT AXLE DIFFERENTIAL (#0979-) FRONT AXLE CASING (#0979-) FRONT AXLE JOINT HOUSING (#0979-) FRONT AXLE OUTPUT GROUP (#0979-) FRONT AXLE STEERING GEAR (#0979-) FRONT AXLE UNIVERSAL JOINT (#0979-) REAR AXLE INPUT GROUP (#0979-) REAR AXLE DIFFERENTIAL (#0979-) REAR AXLE CASING (#0979-) REAR AXLE HUB CARRIER (#0979-) REAR AXLE OUTPUT GROUP (#0979-) TRANSMISSION INPUT HOUSING (#0979-) TRANSMISSION HOUSING (#0979-) TRANSMISSION MULTI-DISC BRAKE (#0979-) TRANSMISSION COUPLING (#0979-) TRANSMISSION PLANETARY DRIVE (#0979-) TRANSMISSION OUTPUT GROUP (#0979-) TRANSMISSION GEAR SHIFT SENSOR (#0979-) TRANSMISSION OIL PIPE (#0979-) CAB MOUNTING CAB ASSY (1/6, STD & FOG TYPE) CAB ASSY (1/6, STD & FOG TYPE, #1230-) CAB ASSY (1/6, ROOF TYPE, #0047-) CAB ASSY (1/6, ROOF TYPE, OPT, #1230-) CAB ASSY (2/6) CAB ASSY (2/6, OPT, #1230-) CAB ASSY (3/6) CAB ASSY (3/6, OPT, #1230-) CAB ASSY (4/6, DOOR) CAB ASSY (5/6, SASH ASSY) CAB ASSY (6/6, DOOR LATCH ASSY) CAB INTERIOR 1 CAB INTERIOR 2 CAB INTERIOR 1 (OPT, #1230-) CAB INTERIOR 2 (OPT, #1230-) CONSOLE BOX (1/2, LH) CONSOLE BOX (2/2, LH) CONSOLE BOX (RH) CONSOLE BOX (1/2, LH, OPT, #1230-) CONSOLE BOX (2/2, LH, OPT, #1230-) CONSOLE BOX (RH, OPT, #1230-) SEAT BASE ASSY SEAT (-#0243) SEAT (#0244-) SEAT (#0181-) SEAT (HEATED, #0736-, OPT) STORAGE BOX COVER ASSY BOTTOM PLATE MOUNTING BOTTOM PLATE MOUNTING (OPT, #1230-) STEERING COLUMN (-#0678) STEERING COLUMN (#0679-) COWLING SIDE COWL ASSY (LH) AIR CLEANER ASSY SIDE COVER ASSY (LH) SIDE COWL ASSY (RH) ENGINE HOOD UNDER COVER TOOL BOX MOUNTING TOOL BOX GROMMET GROUP UPPER FRAME & COUNTERWEIGHT LOWER FRAME & FENDER SWING RING GREASE LUB SYSTEM DOZER BLADE-REAR DOZER BLADE-FRONT OUTRIGGER MOUNTING-FRONT (OLD) OUTRIGGER MOUNTING-FRONT (NEW) OUTRIGGER MOUNTING-REAR CAB PROTECTOR ASSY (OPTION, #0999-) BOOM MOUNTING (5.1M, STD) BOOM MOUNTING (ADJUST BOOM) BOOM (5.1M, STD) ADJUST BOOM (#0022-) ARM (2.6M) ARM (2.2M, STD) ARM (3.1M) BUCKET CONTROL GROUP BUCKET (0.75M3 SAE HEAPED, STD) BUCKET (0.39M3 SAE HEAPED) BUCKET (0.50M3 SAE HEAPED) BUCKET (0.64M3 SAE HEAPED) BUCKET (0.89M3 SAE HEAPED) BUCKET (1.05M3 SAE HEAPED) BUCKET (0.69M3 SAE HEAPED HEAVY DUTY) BUCKET (0.75M3 SAE HEAPED D/CLEANING) TOOLS HRDT 2.0 TOOL KIT DECALS MANUALS CYLINDER HEAD VALVE MECHANISM ROCKER COVER & BREATHER CAMSHAFT CRANKCASE ASSY MAIN BEARING TIMING GEAR CASE FLYWHEEL HOUSING OIL PAN PISTON & CONNECTING ROD CRANKSHAFT & FLYWHEEL TIMING GEAR INLET & EXHAUST SYSTEM TURBOCHARGER OIL PUMP & OIL STRAINER OIL PIPE OIL COOLER OIL FILTER COOLING SYSTEM FUEL INJECTION PUMP GENERAL FEED PUMP FUEL SYSTEM NOZZLE AUTOMATIC TIMER FUEL FILTER STARTER ALTERNATOR GENERAL ALTERNATOR CONTROL SYSTEM ACCESSORY OVERHAUL GASKET KIT

1

2

3

3

3-1

3-2

3-2

4

5

6

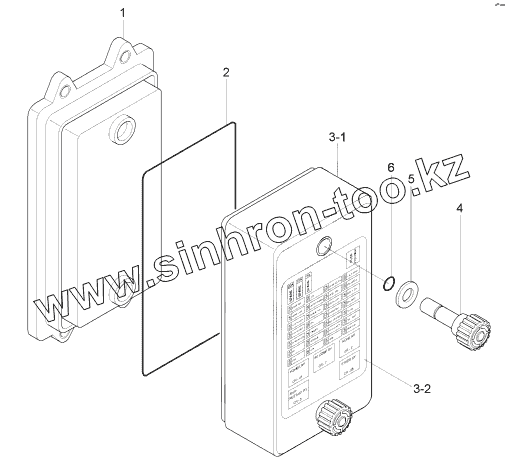

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Body-FuseBox		Body-Fuse Box
2	21N8-20120		Seal
3	21N5-20040		Fuse Box Cover Assy
3	21N5-20041		Fuse Box Cover Assy
3-1	21N8-20061		Cover-Fuse Box
3-2	21N5-20050		Decal-Fuse Box
3-2	21N5-20051		Decal-Fuse Box
4	21N8-20070		KNOB ASSY
5	21N8-20080		PAD-RUBBER
6	21N8-20150		O-RING
7	21N4-90010		FUSE & BULB KIT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
