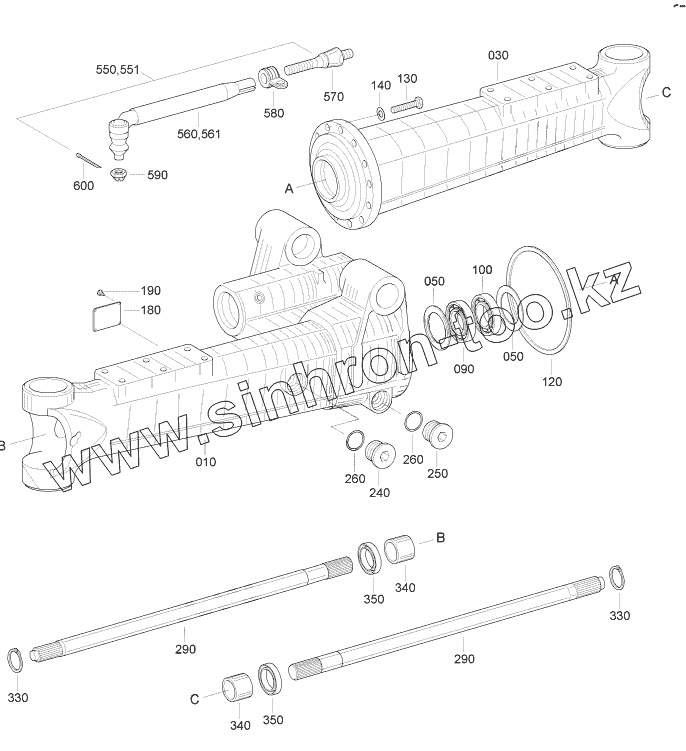

Каталог запасных частей к технике: Hyundai R170W-7. FRONT AXLE CASING (-#0978)
10
30
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
90
100
120
130
130
140
180
190
240
250
260
260
290
290
330
330
340
340
350
350
550
551
560
561
570
580
590
600
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| Axle-Front | Axle-Front | Axle-Front | |
| 10 | 4472-317-032 | Casing-Axle | |
| 30 | 4472-317-008 | Casing-Axle | |
| 50 | 0730-105-445 | Shim | |
| 50 | 0730-102-784 | Shim | |
| 50 | 0730-102-785 | Shim | |
| 50 | 0730-102-786 | Shim | |
| 50 | 0730-102-787 | Shim | |
| 50 | 0730-102-788 | Shim | |
| 50 | 0730-102-789 | Shim | |
| 50 | 0730-105-442 | Shim | |
| 50 | 0730-105-443 | Shim | |
| 50 | 0730-105-444 | Shim | |
| 50 | 0730-105-446 | Shim | |
| 50 | 0730-105-447 | Shim | |
| 50 | 0730-105-448 | Shim | |
| 50 | 0730-105-449 | Shim | |
| 50 | 0730-105-450 | Shim | |
| 50 | 0730-105-451 | Shim | |
| 50 | 0730-105-452 | Shim | |
| 50 | 0730-106-043 | Shim | |
| 50 | 0730-002-277 | Shim | |
| 50 | 0730-102-783 | Shim | |
| 50 | 0730-000-123 | Shim | |
| 50 | 0730-000-124 | Shim | |
| 50 | 0730-000-125 | Shim | |
| 50 | 0730-000-126 | Shim | |
| 50 | 0730-000-127 | Shim | |
| 50 | 0730-001-011 | Shim | |
| 50 | 0730-001-012 | Shim | |
| 50 | 0730-002-280 | Shim | |
| 50 | 0730-005-708 | Shim | |
| 50 | 0730-005-709 | Shim | |
| 50 | 0730-102-777 | Shim | |
| 50 | 0730-102-778 | Shim | |
| 50 | 0730-102-779 | Shim | |
| 50 | 0730-102-780 | Shim | |
| 50 | 0730-102-781 | Shim | |
| 50 | 0730-102-782 | Shim | |
| 90 | 0750-117-380 | Bearing-Roller | |
| 100 | 0750-117-024 | Bearing-Roller | |
| 120 | 0634-304-012 | O-Ring | |
| 130 | 0736-008-053 | Bolt-Fitting | |
| 130 | 0636-016-151 | Screw | |
| 140 | 0730-101-840 | Washer | |
| 180 | 0730-365-124 | Plate-Type | |
| 190 | 0631-311-009 | Stud-Grooved | |
| 240 | 0636-302-018 | Plug-Screw | |
| 250 | 0750-108-029 | Plug-Screw | |
| 260 | 0634-303-485 | O-Ring | |
| 290 | 4472-317-011 | Shaft-Stub | |
| 330 | 4472-354-026 | Retainer Ring | |
| 340 | 0730-260-621 | Bushing | |
| 350 | 0750-110-138 | Seal-Shaft | |
| 550 | 0501-207-845 | Track Rod Cpl-Lh | |
| 551 | 0501-207-846 | Track Rod Cpl-Rh | |
| 560 | 0501-208-614 | Ball Joint Cpl-Lh | |
| 561 | 0501-208-613 | Ball Joint Cpl-Rh | |
| 570 | 0501-205-257 | Axial Joint Cpl | |
| 580 | 0501-208-615 | Clamping Clip Cpl | |
| 590 | 0637-010-092 | Nut-Castle | |
| 600 | 0631-701-048 | Pin-Cotter |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
