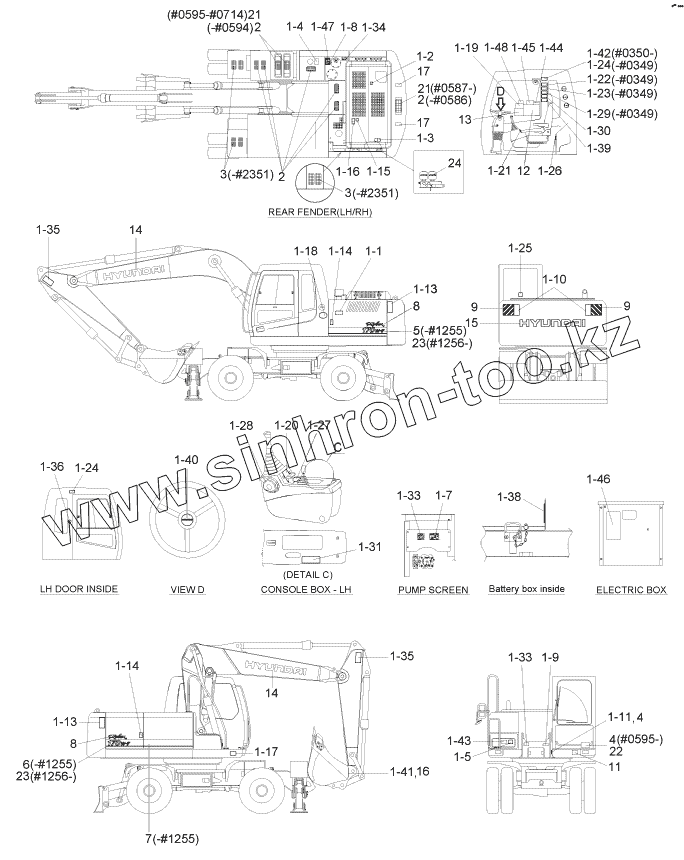

Каталог запасных частей к технике: Hyundai R170W-7. DECALS

Тип техники

Марка

Модель

Схема

1-1

1-2

1-3

1-4

1-5

1-7

1-8

1-9

1-10

1-11

1-13

1-14

1-15

1-16

1-17

1-18

1-19

1-20

1-21

1-22

1-23

1-24

1-25

1-26

1-27

1-28

1-29

1-30

1-31

1-33

1-34

1-35

1-36

1-38

1-39

1-40

1-41

1-42

1-43

1-44

1-45

1-46

1-47

1-48

Позиция на иллюстрации	Заводской номер детали	Название детали
1	91N4-00200	Decal Kit
1	91N4-00201	Decal Kit
1	91N4-00202	Decal Kit
1	91N4-00203	Decal Kit
1	91N4-00204	Decal Kit
1	91N4-00205	Decal Kit
1	91N4-00206	Decal Kit
1	91N4-00207	Decal Kit
1	91N4-00400	Decal Kit
1	91N4-00401	Decal Kit
1	91N4-00402	Decal Kit
1-1	91N6-01102	DECAL-A/CLEANER FILTER
1-2	91N6-01111	DECAL-TURBO COVER
1-3	91N6-01121	DECAL-RADIATOR CAP
1-4	91N6-01131	Fueling
1-4	91M8-01140	DECAL-FUELING
1-5	91N6-02120	DECAL-BATT ACCIDENT
1-7	92N6-03100	Decal-Hyd Oil Level
1-8	91N6-03111	DECAL-HYD OIL LUBRICAT
1-9	91N6-03121	DECAL-R/GEAR GREASE
1-10	91N6-04122	Keep Clear/Rr
1-11	91E1-14110	Decal-Pin Plate
1-11	91LM-14110	PIN PLATE
1-11	91E1-14130	Pin Plate
1-11	91LM-14130	PIN PLATE
1-13	91N6-07102	Decal-Keep Clear
1-14	91N6-07112	DECAL-STAY FIX
1-15	91N6-07121	DECAL-SHEARING
1-16	91N6-07131	DECAL-NO STEP
1-17	92N6-07140	Decal-Transporting
1-18	91E1-27110	DECAL-L/EMISSION ENG
1-19	92N6-07200	Decal-Cntl Ideogram
1-19	92N6-07500	Decal-Cntl Ideogram
1-20	91N6-07212	Decal-Cntl Ideogram,Lh
1-20	92N6-07210	Control Ideogram-Lh
1-21	91N6-07221	Decal-Cntl Ideogram,Rh
1-21	92N6-07220	Control Ideogram-Rh
1-22	91N6-07231	Ref Operator Manual
1-23	91N6-07241	Max Height
1-24	91N6-07252	Decal-Safety Fr Window
1-25	91N6-07261	Decal-Alternate Exit
1-26	91N6-07272	DECAL-AIRCON FILTER
1-27	91N6-07301	Console Box Tilting
1-27	92N6-07300	Console Box Tilting
1-27	92N6-07510	Decal-Console Box Tilt
1-28	91N6-07311	Decal-Safety Lever
1-28	92N6-07310	DECAL-SAFETY LEVER
1-29	91N6-07320	Interference
1-30	91N6-07330	Decal-Locking Clamp
1-31	91N6-07340	Decal-Ideogram
1-31	92N6-07360	Decal-Ideogram
1-31	92N6-07430	Ideogram
1-31	92N6-07431	Decal-Ideogram
1-33	91N6-03130	DECAL-H/PRESS HOSE
1-34	91N6-03140	DECAL-FALLING
1-35	91N6-06110	Decal-Keep Clear-Att
1-36	91N6-07280	Decal-Hammer
1-38	92N6-07410	Decal-Swing Ideogram
1-39	92N6-07350	Decal-Swing Lock
1-40	2D2001160	Handle
1-40	92N6-07420	Decal-Steering Wheel
1-41	91N6-06410	Name Plate-Bucket
1-42	91N6-07370	Decal-Cabin Rh Pillar
1-43	91LB-01350	DECAL-ELECTRIC WELDING
1-44	91N6-07390	Decal-Turbocharger
1-45	91N6-07400	DECAL-M/CNTL CAB
1-46	91N6-07410	DECAL-M/CNTL PATTERN
1-47	91Q6-03230	DECAL-FUEL SHUT OFF
1-48	91Q4-07180	Decal-Water Separator
2	91E1-26300	Decal-Step Tread
4	91EK-12010	RIVET
3	90N5-10200	Trade Mark Group
5	92N5-17110	Model Name-Lh
6	92N5-17121	Model Name-Rh/Rear
7	91N5-17220	Decal-M/Name, Rh/Fr
8	91N6-17140	Robex Logo
9	91N6-04101	Keep Clear-Ref
11	91N6-22120	Decal-Noise Level/Lwa
11	91N6-22110	Decal-Noise Level/Lwa
12	92N5-17160	Service Instruction
12	92N5-17161	Service Instruction
12	92N5-17162	Service Instruction
12	92N5-17163	Service Instruction
13-1	92N5-17410	Lifting Chart
13-2	92N5-17420	Lifting Chart
13-3	92N5-17430	Lifting Chart
13-4	92N5-17510	Lifting Chart-Adjust
13-5	92N5-17520	Lifting Chart-Adjust
14	91N6-21090	Decal-Trade Mark
15	91N6-21100	Trade Mark-Boom/Cwt
16	91N6-06420	Metal Tack
17	91N6-04140	Decal-Lifting Eye
21	91N6-27510	Decal-Safety Work
22	91N6-01280	FOPS FOG PLATE
23	92N5-17710	Model Name
24	91N6-03200	DECAL-ACCUMULATOR

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
