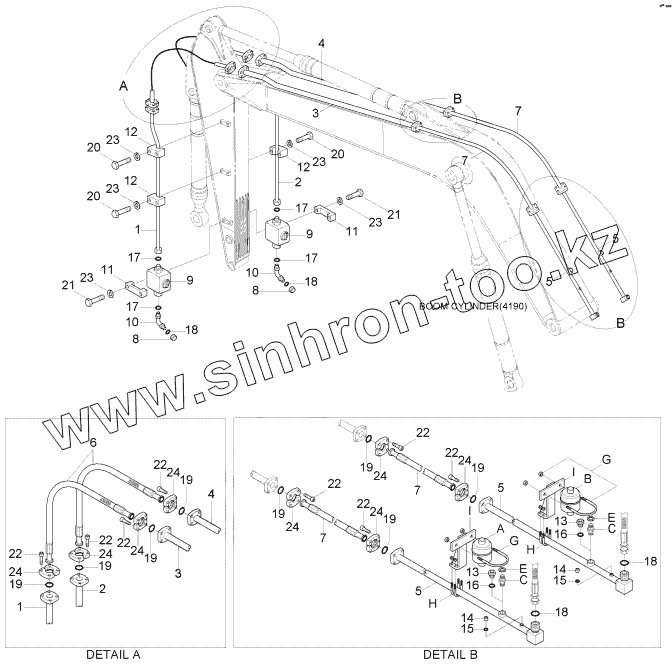

Каталог запасных частей к технике: Hyundai R170W-7. D/ACT ATTACH PIPING KIT (ADJUST BOOM)
1
1
1
1
2
2
2
2
3
3
4
4
5
5
5
5
6
7
7
7
7
8
8
9
9
10
10
11
11
12
12
12
13
13
14
14
15
15
16
16
17
17
17
17
18
18
18
18
19
19
19
19
19
19
19
19
20
20
20
21
21
22
22
22
22
22
22
22
22
23
23
23
23
23
23
24
24
24
24
24
24
24
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31N5-91371 | 31N5-91371 | Attach Piping Kit | |
| Adj/BmPipingKit | Adj/BmPipingKit | Adj/Bm Piping Kit | |
| 31N5-91381 | 31N5-91381 | Attach Piping Kit | |
| 31N5-91361 | 31N5-91361 | Attach Piping Kit | |
| 1 | 31N5-90631 | Pipe Assy | |
| 1 | 31N5-90582 | Pipe Assy | |
| 1 | 31N5-90651 | Pipe Assy | |
| 2 | 31N5-90641 | Pipe Assy | |
| 2 | 31N5-90592 | Pipe Assy | |
| 2 | 31N5-90661 | Pipe Assy | |
| 3 | 31N5-90670 | Pipe Assy | |
| 4 | 31N5-90680 | Pipe Assy | |
| 5 | 31N5-90690 | Pipe Assy | |
| 6 | P703-167334 | Hose Assy-Flg 0x90 | |
| 7 | P680-166323 | Hose Assy-Flg 0x0 | |
| 8 | X710-100106 | CAP-HYD,ORFS | |
| 9 | 31N6-97010 | Valve-Stop | |
| 10 | X530-110005 | ELBOW-45,ORFS | |
| 11 | 31EG-91350 | Clamp-Stop Valve | |
| 12 | 31EG-91390 | Clamp-Pipe | |
| 13 | P220-110205 | PLUG-HEX | |
| 14 | 31EK-11130 | COUPLING-SCREW | |
| 15 | S631-011004 | O-RING | |
| 16 | S631-024004 | O-RING | |
| 17 | S631-029004 | O-RING | |
| 18 | S621-021001 | O-RING | |
| 19 | Y171-024004 | O-RING | |
| 20 | S017-120606 | Bolt-Hex | |
| 21 | S017-120706 | BOLT-HEX | |
| 22 | S109-100406 | BOLT-SOCKET | |
| 23 | P392-220000 | WASHER-COPPER | |
| 23 | S411-120006 | WASHER-SPRING | |
| 24 | P173-160104 | FLANGE-HYD,SPLIT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
