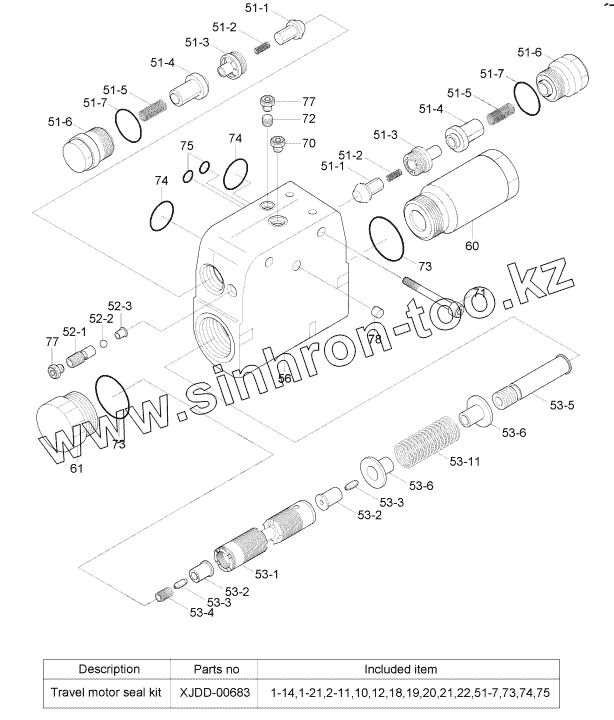

Каталог запасных частей к технике: Hyundai R170W-7. COUNTER BALANCE VALVE (-#0196)
51-1
51-1
51-1
51-2
51-2
51-2
51-2
51-3
51-3
51-3
51-3
51-4
51-4
51-4
51-4
51-5
51-5
51-5
51-5
51-6
51-6
51-6
51-6
51-7
51-7
51-7
51-7
52-1
52-1
52-2
52-2
52-3
52-3
53-1
53-1
53-2
53-2
53-2
53-2
53-3
53-3
53-3
53-3
53-4
53-4
53-5
53-5
53-6
53-6
53-6
53-6
53-11
53-11
56
56
60
60
61
61
70
70
71
71
72
72
73
73
73
73
74
74
74
74
75
75
77
77
77
77
78
78
XJDD-00683
XJDD-00683
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| ZGAR-00397 | ZGAR-00397 | Counter Balance Vlv | |
| 51 | ZGAR-00452 | Valve | |
| 51-1 | ZGAR-00459 | Poppet-Valve | |
| 51-2 | ZGAR-00460 | Spring-Pressure | |
| 51-3 | ZGAR-00461 | Seat-Poppet | |
| 51-4 | ZGAR-00462 | Poppet-Valve | |
| 51-5 | ZGAR-00472 | Spring-Pressure | |
| 51-6 | ZGAR-00464 | Screw-Locking | |
| 51-7 | XJDD-00316 | O-Ring | |
| 52 | ZGAR-00364 | Valve-Shuttle | |
| 52-1 | ZGAR-00386 | Screw-Valve | |
| 52-2 | ZGAR-00387 | Ball | |
| 52-3 | ZGAR-00388 | Bushing | |
| 53 | ZGAR-00453 | Spool | |
| 53-1 | ZGAR-00467 | Piston-Brake | |
| 53-2 | ZGAR-00390 | Bushing-Valve | |
| 53-3 | ZGAR-00468 | Pin-Throttle | |
| 53-4 | ZGAR-00392 | Screw-Valve | |
| 53-5 | ZGAR-00469 | Bolt | |
| 53-6 | ZGAR-00470 | Collar-Spring | |
| 53-11 | ZGAR-00471 | Spring-Pressure | |
| 56 | ZGAR-00454 | Housing | |
| 60 | ZGAR-00455 | Screw-Locking | |
| 61 | ZGAR-00456 | Screw-Locking | |
| 70 | ZGAR-00369 | Screw-Locking | |
| 71 | ZGAR-00457 | Screw-Socket | |
| 72 | ZGAR-00371 | Plug | |
| 73 | XJDD-00306 | O-Ring | |
| 74 | XJDD-00284 | O-Ring | |
| 75 | XJDD-00307 | O-Ring | |
| 77 | ZGAR-00375 | Screw-Locking | |
| 78 | ZGAR-00348 | Pin-D/Break Off | |
| XJDD-00683 | XJDD-00683 | Seal Kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
