Позиция на иллюстрации
Заводской номер детали
Название детали

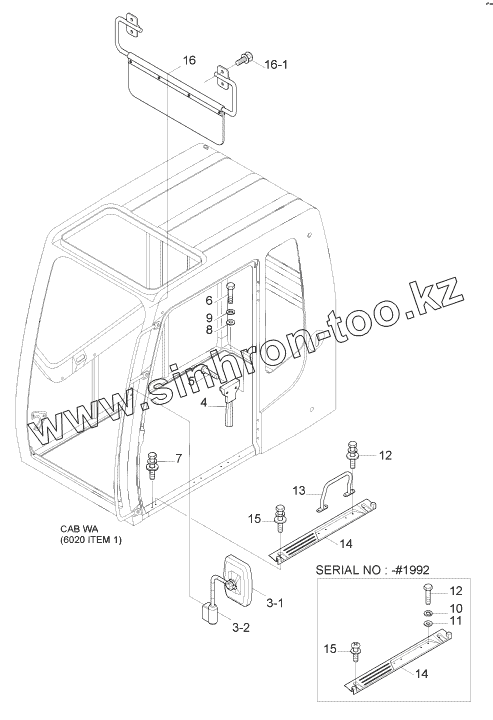

CabMounting
CabMounting
Cab Mounting
3
71N8-47000
Mirror & Stay Assy-Lh
3
71N6-47000
Mirror & Stay Assy-Lh
3
71N6-47000BG
Mirror & Stay Assy-Lh
3
71N6-47001BG
Mirror & Stay Assy-Lh
3-1
71N8-47100
Mirror
3-1
71N8-47101
MIRROR
3-2
71N6-47200
Stay Assy-Lh
3-2
71N6-47200BG
Stay Assy-Lh
4
71E1-60340
Hammer-Safety
5
S141-040166
SCREW-FLAT HD
6
S017-120706
BOLT-HEX
7
S037-122526
BOLT-W/WASHER
8
S403-122006
Washer-Plain
9
S411-120006
WASHER-SPRING
10
S411-100006
WASHER-SPRING
11
S403-102006
WASHER-PLAIN
12
S017-100256
Bolt-Hex
12
S037-102526
BOLT-W/WASHER
13
71N6-03560
Rail-Hand
14
71N6-10270
Plate
14
71N6-10271
Plate
15
S131-051646
Screw-W/Washer
15
S037-101526
BOLT-W/WASHER
16
71N6-03632
Sun Visor Assy
16-1
S132-060856
Screw-W/Washer
