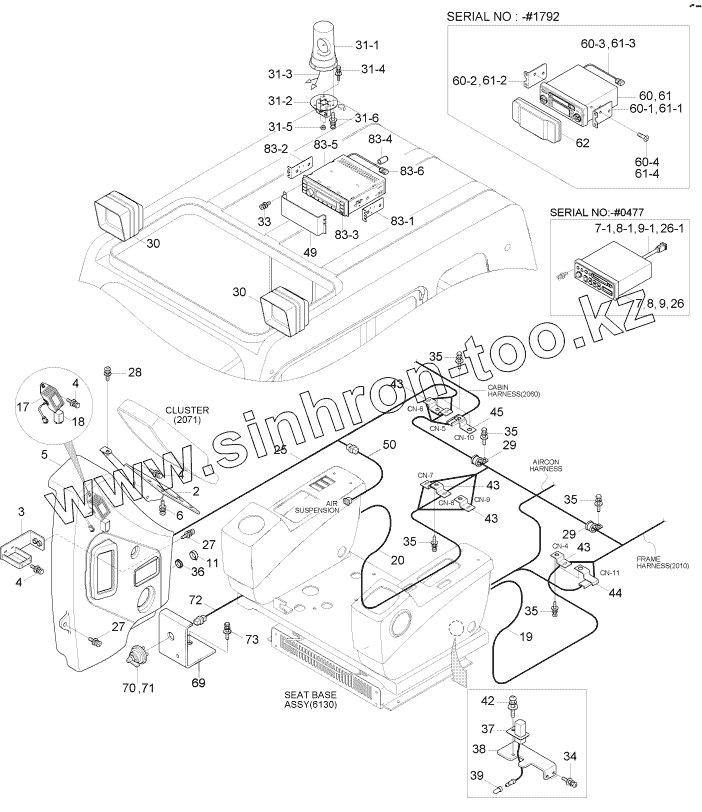

Каталог запасных частей к технике: Hyundai R170W-7. CAB ELECTRIC 2
26
61-1
61-2
61-3
61-4
8-1
9-1
26-1
34
35
35
35
35
35
73
2
3
4
4
4
5
6
7
7-1
8
9
11
17
18
18
18
19
20
20
25
25
25
25
27
27
28
29
29
30
30
30-1
30-1
31
31
31-1
31-1
31-1
31-11
31-11
31-2
31-2
31-2
31-3
31-3
31-4
31-5
31-6
33
36
37
38
39
42
43
43
43
43
44
45
49
50
60
60
60-1
60-2
60-3
60-4
61
62
69
70
71
72
83
83
83-1
83-2
83-3
83-4
83-5
83-6
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 26 | 21N8-22030 | Cassette Radio | |
| 61-1 | 21N6-10480 | Bracket-Lh | |
| 61-2 | 21N6-10490 | Bracket-Rh | |
| 61-3 | 21N8-01600 | Harness-Ext Wire | |
| 61-4 | S141-050106 | Screw-Flat Hd | |
| 8-1 | 375500043204 | Wire Assy-20 H818 | |
| 9-1 | 375500043204 | Wire Assy-20 H818 | |
| 26-1 | 375500043204 | Wire Assy-20 H818 | |
| 34 | S131-051546 | SCREW-W/WASHER | |
| 35 | S037-102026 | BOLT-W/WASHER | |
| 73 | S037-102026 | BOLT-W/WASHER | |
| 2 | 21N8-21011 | Bracket Wa | |
| 3 | 21N8-21070 | Bracket Wa | |
| 4 | S035-061622 | Bolt-W/Washer | |
| 5 | 21N8-21021 | Cover-Wiper Motor | |
| 6 | S035-081622 | Bolt-W/Washer | |
| 7 | 21N8-22010 | Cassette Radio | |
| 7-1 | 375500043204 | Wire Assy-20 H818 | |
| 8 | 21N8-22020 | Cassette Radio | |
| 9 | 21N8-22030 | Cassette Radio | |
| 11 | 21N8-20010 | Socket-12v | |
| 17 | 21N8-20201 | Dc-Dc Converter Assy | |
| 18 | 21ER-60701 | Flasher Unit Assy | |
| 18 | 21ER-60702 | Flasher Unit Assy | |
| 18 | 21ER-60703 | Flasher Unit | |
| 19 | 21N8-11160 | Harness-Console,Lh | |
| 20 | 21N8-11151 | Harness-Console,Rh | |
| 20 | 21N4-02810 | Harness-Console,Rh | |
| 25 | 21N4-11052 | Harness-Side,Rh | |
| 25 | 21N4-11053 | Harness-Side,Rh | |
| 25 | 21N4-10050 | Harness-Side,Rh | |
| 25 | 21N4-21110 | Harness-Side,Rh | |
| 27 | S132-061676 | Screw-W/Washer | |
| 28 | S132-061546 | SCREW-W/WASHER | |
| 29 | S543-280003 | Clamp-Tube | |
| 30 | 21N6-20211 | Work Lamp Assy | |
| 30-1 | S866-240650 | BULB | |
| 31 | BeaconLamp | Beacon Lamp Sub | |
| 31 | 21Q4-30381 | BEACON LAMP ASSY | |
| 31-1 | 21EK-10140 | Beacon Lamp | |
| 31-1 | 21Q4-20700 | BEACON LAMP | |
| 31-1 | 21Q4-30700 | Beacon Lamp | |
| 31-11 | 21EK-10330 | BULB-H1, 70W | |
| 31-11 | H1U64155 | Bulb-H1, 70w | |
| 31-2 | 21N8-00581 | Bracket-Beacon Lamp | |
| 31-2 | 21N8-00581BG | Bracket-Beacon Lamp | |
| 31-2 | 21Q4-31000 | BRACKET-TILT | |
| 31-3 | 21EK-20240 | Harness-Beacon Lamp | |
| 31-3 | 21N4-02830 | HARNESS-BEACON LAMP | |
| 31-4 | S037-102026 | BOLT-W/WASHER | |
| 31-5 | S205-101006 | NUT-HEX | |
| 31-6 | S131-051546 | SCREW-W/WASHER | |
| 33 | S131-051046 | Screw-W/Washer | |
| 36 | S661-260300 | Cap-Rubber | |
| 37 | 21M5-50250 | SWITCH ASSY | |
| 38 | 21N8-21080 | Plate | |
| 39 | S890-107508 | TUBE-PVC | |
| 42 | S131-041026 | SCREW-W/WASHER | |
| 43 | 21N4-01130 | PLATE-CLIP | |
| 44 | 25D1-10660 | Clip Assy | |
| 45 | 25D1-10650 | CLIP ASSY | |
| 49 | 21N6-10450 | Plate-C/Radio Cover | |
| 50 | 21N8-40190 | ExtHarness-A/Ride Seat | |
| 60 | 21N8-50010 | Cassette Radio Assy | |
| 60 | 21N8-50050 | Cassette Radio Assy | |
| 60-1 | 21N6-10480 | Bracket-Lh | |
| 60-2 | 21N6-10490 | Bracket-Rh | |
| 60-3 | 21N8-01600 | Harness-Ext Wire | |
| 60-4 | S141-050106 | Screw-Flat Hd | |
| 61 | 21N8-40500 | Cd Player Assy | |
| 62 | 21N8-40940 | Cover-Dust | |
| 69 | 21N4-47300 | Bracket-Master Sw | |
| 70 | 21L7-10501 | Switch-Master | |
| 71 | 21LD-34180 | DECAL-MASTER SWITCH | |
| 72 | 21N8-40170 | Harness-Extension | |
| 83 | 21N8-50100 | Radio/Usb Player Assy | |
| 83 | 21N8-54000 | Radio/Usb Player Assy | |
| 83-1 | 21LM-31010 | Bracket L | |
| 83-2 | 21LM-31020 | Bracket R | |
| 83-3 | 21LM-31030 | Cable-Mp3 | |
| 83-4 | 21LM-31040 | Cap | |
| 83-5 | 21LM-31050 | Radio/Usb Body | |
| 83-6 | 21N8-50110 | Harness-Ext,Wire |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
