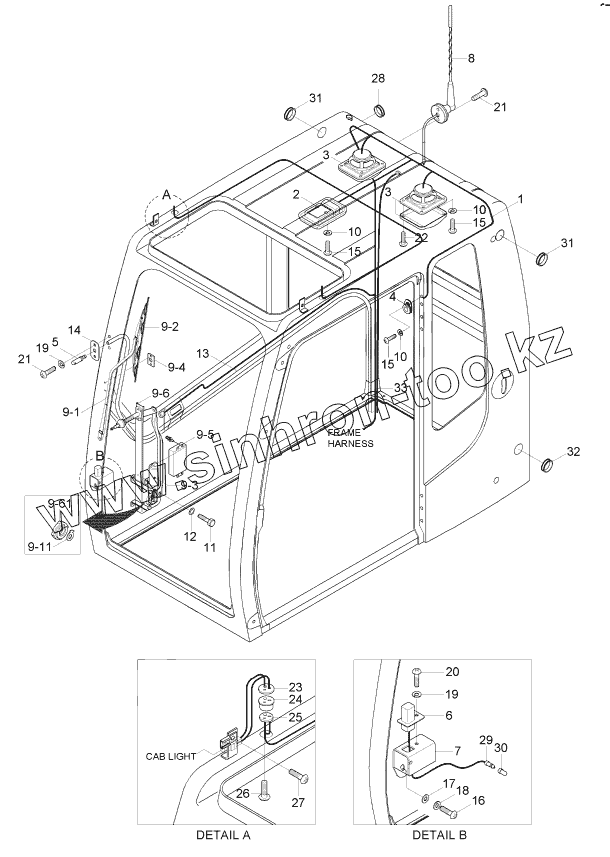

Каталог запасных частей к технике: Hyundai R170W-7. CAB ELECTRIC 1

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
3
4
5
6
7
8
8
9
9
9-1
9-1
9-1
9-11
9-2
9-2
9-3
9-3
9-4
9-4
9-5
9-5
9-5
9-6
9-6
9-61
10
10
10
11
12
13
14
15
15
15
16
17
18
19
19
20
21
21
22
23
24
25
26
27
28
29
30
31
31
32
33
Позиция на иллюстрации Заводской номер детали Название детали
1 21N6-00012 Harness-Cab
1 21N6-00013 Harness-Cab
2 21EH-0011 Lamp-Room
3 21N6-10400 Speaker
4 E123-3022 SWITCH-DOOR
5 21N6-00311 Nozzle
6 21M5-50250 SWITCH ASSY
7 21N6-00301 Bracket Wa
8 21N6-10410 Antenna
8 21N4-02840 Antenna
9 21N6-00210 Wiper Motor Kit Assy
9 21N6-01210 Wiper Motor Kit Assy
9-1 21N6-00220 Arm-Wiper
9-1 21N6-01220 Arm-Wiper
9-1 21N6-01221 Arm-Wiper
9-11 21N6-01290 CAM-MOTOR
9-2 21N6-00230 Blade-Wiper
9-2 21N6-01230 Blade-Wiper
9-3 21N6-00240 Motor-Wiper
9-3 21N6-01280 Motor-Wiper
9-4 21N6-00250 Bracket-Parking
9-4 21N6-01250 Bracket-Parking
9-5 21N8-21060 Controller
9-5 21N6-01270 Controller-W/Motor
9-5 21N6-01272 CONTROLLER-W/MOTOR
9-6 Bracket Bracket
9-6 21N6-01260 BRACKET & LINK ASSY
9-61 21N6-01300 CAM BASE-W/MOTOR
10 S411-050006 WASHER-SPRING
11 S015-080166 Bolt-Hex
12 S411-080006 WASHER-SPRING
13 21EM-10890 Hose-Washer Tank
14 E171-1185 Plate-Nozzle Mtg
15 S161-050166 Screw-Cross R/Round
16 S161-060166 Screw-Cross R/Round
17 S403-062006 Washer-Plain
18 S411-060006 WASHER-SPRING
19 S411-040006 WASHER-SPRING
20 S161-040106 Screw-Cross R/Round
21 S151-040166 Screw-Tapping
22 S151-050126 Screw-Tapping
23 21N6-10420 Plate
24 21N6-10430 Seal
25 21N6-10440 Plate
26 S161-040166 Screw-Cross R/Round
27 S141-040106 SCREW-FLAT HD
28 21N6-00320 Grommet
29 21N8-10090 Harness-Wiper
30 S890-107508 TUBE-PVC
31 S681-410400 Grommet
32 S681-460400 Grommet
33 21N4-22010 Ext Harness-Usb
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
