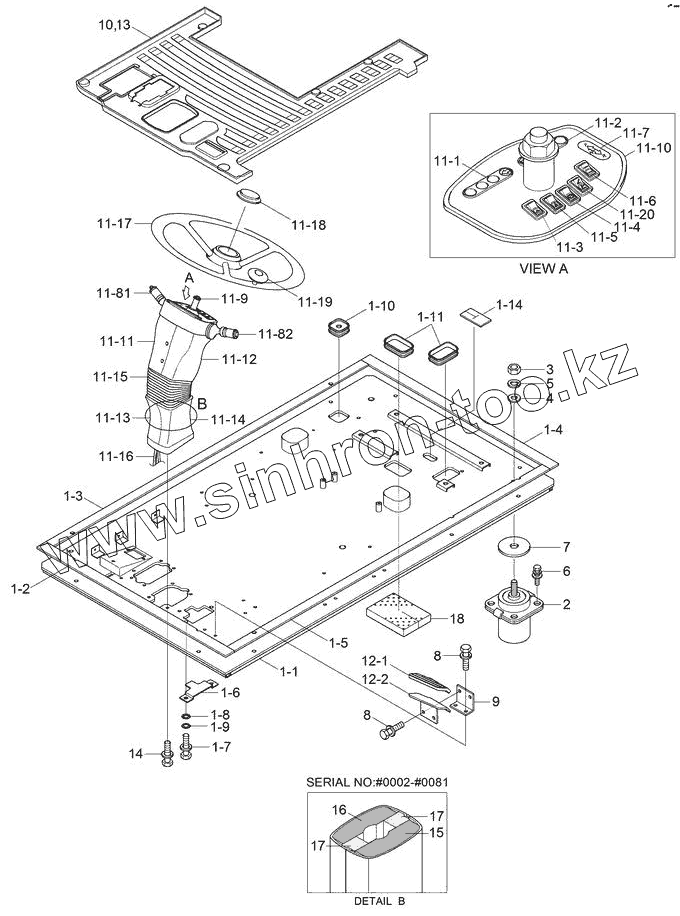

Каталог запасных частей к технике: Hyundai R170W-7. BOTTOM PLATE MOUNTING
14
1
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-9
1-10
1-11
1-14
2
3
4
5
6
7
8
8
9
10
11
11
11-1
11-2
11-3
11-4
11-5
11-6
11-7
11-8
11-81
11-82
11-9
11-10
11-11
11-12
11-13
11-14
11-15
11-16
11-17
11-18
11-19
11-20
12
12-1
12-2
13
15
16
17
17
18
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 14 | S037-102516 | Bolt-W/Washer | |
| 1 | 71N6-15001 | Bottom Plate Assy | |
| 1-1 | 71N6-15010 | Bottom Plate Wa | |
| 1-2 | 71N6-11100 | Pad-Rubber | |
| 1-3 | 71N6-11110 | Pad-Rubber | |
| 1-4 | 71N6-11120 | Pad-Rubber | |
| 1-5 | 71N6-11130 | Pad-Rubber | |
| 1-6 | 71E9-10660 | Cover | |
| 1-7 | S017-100156 | BOLT-HEX | |
| 1-8 | S403-102006 | WASHER-PLAIN | |
| 1-9 | S411-100006 | WASHER-SPRING | |
| 1-10 | 71E9-10630 | Grommet | |
| 1-11 | 71E9-10640 | Grommet | |
| 1-14 | 71N4-10940 | Pad-Travel Link | |
| 2 | 71N6-10300 | Viscous Mount | |
| 3 | S207-161006 | Nut-Hex | |
| 4 | S403-162006 | WASHER-PLAIN | |
| 5 | S411-160006 | WASHER-SPRING | |
| 6 | S037-103022 | Bolt-W/Washer | |
| 7 | 71E9-10650 | Washer-Rebound | |
| 8 | S037-102516 | Bolt-W/Washer | |
| 9 | 71N6-10130 | Bracket-Foot Rest | |
| 10 | 71N6-15030 | Mat-Floor | |
| 11 | 71N4-10230 | Steering Column Assy | |
| 11 | 71N4-10231 | Steering Column Assy | |
| 11-1 | 0002.0823 | Lights-Warning | |
| 11-2 | 0002.0822 | Lights-Warning | |
| 11-3 | 21N4-01210 | Switch-Harzard | |
| 11-4 | 21N4-01220 | Switch-Parking | |
| 11-5 | 21N4-01230 | Switch-Ramlock | |
| 11-6 | 0062.0047 | Cap | |
| 21N4-01260 | 21N4-01260 | Switch-Work/Travel | |
| 21N6-30140 | 21N6-30140 | Sw-4 Outrigger Rh,Lh | |
| 11-7 | 0030.0219 | Label | |
| 11-8 | 0034.0866 | Steering Column Sw | |
| 11-81 | 01.0704.0600 | S/Column Sw-Rh | |
| 11-82 | 01.0652.0500 | S/Column Sw-Lh | |
| 11-9 | Column-Steering | Column-Steering | |
| 11-10 | 0052.1221 | Dash Board | |
| 11-11 | 0052.1222 | Cover-Lh,Up | |
| 11-12 | 0052.1223 | Cover-Rh,Up | |
| 11-13 | 0052.1224 | Cover-Lh,Low | |
| 11-14 | 0052.1225 | Cover-Rh,Low | |
| 11-15 | 0046.0130 | Bellow-Rubber | |
| 11-16 | HY04.C501 | Harness | |
| 11-17 | 0032.0293 | Steering Wheel | |
| 11-18 | 0047.0064 | Cap-Center | |
| 11-19 | 0034.0869 | Knob | |
| 11-20 | 21N4-01250 | Sw-Outrigger/Dozer | |
| 21N4-01240 | 21N4-01240 | Sw-4 Outrigger | |
| 21N4-01270 | 21N4-01270 | Sw-Dozer/Outrigger | |
| 21N6-30090 | 21N6-30090 | Sw-4 Outrigger Fr,Rr | |
| 21N4-10460 | 21N4-10460 | Switch-Dozzer&Dozzer | |
| 12 | 71N6-10310 | Foot Rest Assy-Lh | |
| 12-1 | 71N6-10161 | Rubber-Foot Rest,Lh | |
| 12-2 | 71N6-10150 | Bracket-Foot Rest | |
| 13 | 71N6-15040 | Mat-Floor | |
| 15 | 71N4-10910 | Sponge-Column | |
| 16 | 71N4-10920 | Sponge-Column | |
| 17 | 71N4-10930 | Sponge-Column | |
| 18 | 71N4-10970 | Sponge-Insulation |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
