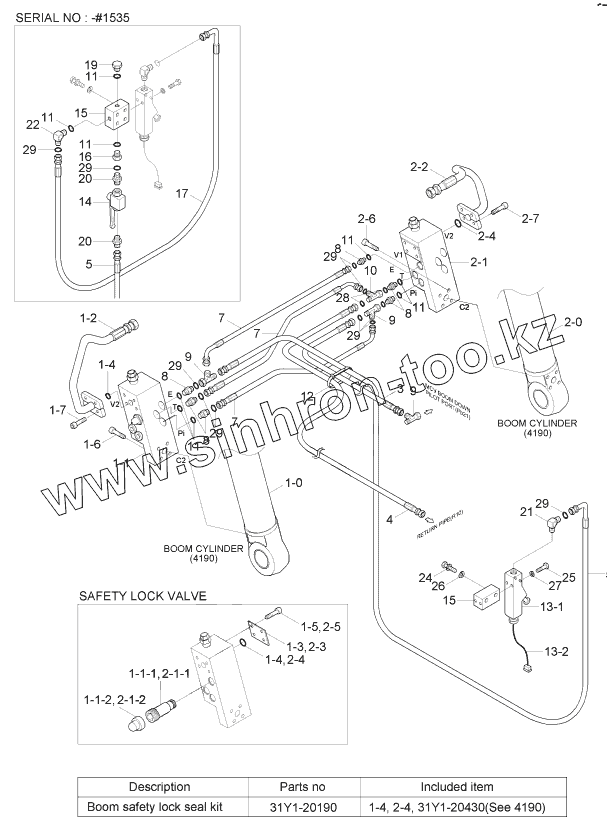

Каталог запасных частей к технике: Hyundai R170W-7. BOOM SAFETY LOCK SYSTEM
2-1-2
2-1-2
2-1-1
2-7
2-6
2-5
2-3
2-4
2-4
2-1
2-0
2-1-1
2-7
2-6
2-5
2-3
2-1
2-0
1-0
1-1
1-1
1-1-1
1-1-1
1-1-2
1-1-2
1-2
1-2
1-3
1-4
1-4
1-5
1-6
1-7
2-2
2-2
3
3
4
4
5
5
5
5
7
7
7
7
7
8
8
8
8
8
8
9
9
9
9
9
9
10
10
11
11
11
11
11
11
12
13
13
13-1
13-2
14
15
15
16
16
17
17
19
20
20
20
20
21
21
22
22
24
25
25
26
26
27
28
29
29
29
29
29
29
31Y1-20190
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2-1-2 | ZTAS-00002 | Cap | |
| 2-1-2 | ZTAS-00002 | Cap | |
| 2-1-1 | DRV-100A | Relief Valve | |
| 2-7 | S107-100456 | Bolt-Socket | |
| 2-6 | S107-100506 | Bolt-Socket | |
| 2-5 | S107-100354 | Bolt-Socket | |
| 2-3 | P184-122112 | Flange-Pluging | |
| 2-4 | Y171-019004 | O-RING | |
| 2-1 | 31N6-90510 | Valve-Safety Lock | |
| 2-0 | Boom Cyl Sub Assy | Boom Cyl Sub Assy | |
| 2-1-1 | DRV-100A | Relief Valve | |
| 2-7 | S107-100456 | Bolt-Socket | |
| 2-6 | S107-100506 | Bolt-Socket | |
| 2-5 | S107-100354 | Bolt-Socket | |
| 2-3 | P184-122112 | Flange-Pluging | |
| 2-1 | 31N6-90510 | Valve-Safety Lock | |
| 2-0 | Boom Cyl Sub Fssy | Boom Cyl Sub Fssy | |
| 1 | 31N5-52110 | Boom Safe Lock Cyl-Lh | |
| 1 | 31N5-53911 | Boom Safe Lock Cyl-Lh | |
| 1-0 | BoomCylSub | Boom Cyl Sub Assy | |
| 1-1 | 31N6-90510 | Valve-Safety Lock | |
| 1-1 | 31NA-90560 | Lock Valve-Arm Safety | |
| 1-1-1 | ZTAS-00001 | Valve-Relief | |
| 1-1-1 | DRV-100A | Relief Valve | |
| 1-1-2 | ZTAS-00002 | Cap | |
| 1-1-2 | DCP-001A | Cap | |
| 1-1-3 | ZTAS-00004 | Seal Kit | |
| 1-1-3 | AS568-1 | Seal Kit | |
| 1-2 | 31Y1-20170 | Pipe Assy-Lh | |
| 1-2 | 31Y1-24550 | Pipe Assy-Bv, Lh | |
| 1-3 | P184-122112 | Flange-Pluging | |
| 1-4 | Y171-019004 | O-RING | |
| 1-5 | S107-100354 | Bolt-Socket | |
| 1-6 | S107-100506 | Bolt-Socket | |
| 1-7 | S107-100456 | Bolt-Socket | |
| 2 | 31N5-52120 | Boom Safe Lock Cyl-Rh | |
| 2 | 31N5-53921 | Boom Safe Lock Cyl-Rh | |
| 2-2 | 31Y1-20180 | Pipe Assy-Rh | |
| 2-2 | 31Y1-24560 | Pipe Assy-Bv, Rh | |
| 3 | P600-042048 | Hose Assy-Thd 0x0 | |
| 3 | P910-042048 | Hose Assy-Orfs 0x0 | |
| 4 | P600-062055 | Hose Assy-Thd 0x0 | |
| 4 | P910-062055 | Hose Assy-Orfs 0x0 | |
| 5 | P600-047013 | Hose Assy-Thd 0x0 | |
| 5 | P910-047013 | Hose Assy-Orfs 0x0 | |
| 5 | P933-047016 | Hose Assy-Orfs 0x90 | |
| 7 | P623-047009 | Hose Assy-Thd 0x90 | |
| 7 | P933-047009 | Hose Assy-Orfs 0x90 | |
| 8 | P010-110002 | Connector | |
| 8 | X500-110001 | CONNECTOR-ORFS | |
| 9 | 32E6-10460 | Tee-Swevel Nut | |
| 9 | X840-515151 | Tee-R/Type, Swivel, Orfs | |
| 10 | 31M6-51160 | Tee-R/Type,S/Nut | |
| 10 | X840-515152 | Tee-R/Type,Orfs | |
| 11 | S631-011004 | O-RING | |
| 12 | S552-020102 | Clamp-Band | |
| 13 | 31E5-50325 | Switch-Pressure | |
| 13-1 | 31E5-50320 | Switch-Pressure | |
| 13-2 | 21E5-50230 | Harness-Ext | |
| 14 | 31E5-50330 | Valve-Shut Off | |
| 15 | 31E6-90550 | Block | |
| 16 | 31E6-90560 | Adaptor-Swivel Nut | |
| 16 | 31N4-22180 | Adaptor-Swivel Nut | |
| 17 | P610-047012 | Hose Assy-Thd 0x45 | |
| 17 | P920-047012 | Hose Assy-Orfs 0x45 | |
| 19 | P220-110102 | Plug-Hex | |
| 20 | P010-120002 | Connector | |
| 20 | X500-120001 | Connector-Orfs | |
| 20 | 31N5-70460 | Connector-Orfs | |
| 21 | 31E5-50350 | Elbow-90 | |
| 21 | 31N6-90550 | Elbow-90, Orfs | |
| 22 | P030-110001 | Elbow-45 | |
| 22 | X530-110001 | ELBOW-45,ORFS | |
| 23 | P391-040000 | Washer-Copper | |
| 24 | S017-120556 | Bolt-Hex | |
| 25 | S015-050402 | Bolt-Hex | |
| 25 | S015-050456 | Bolt-Hex | |
| 26 | S411-120002 | WASHER-SPRING | |
| 27 | S411-050002 | Washer-Spring | |
| 28 | S621-012001 | O-RING | |
| 29 | S621-011001 | O-RING | |
| 31Y1-20190 | 31Y1-20190 | Seal Kit |
