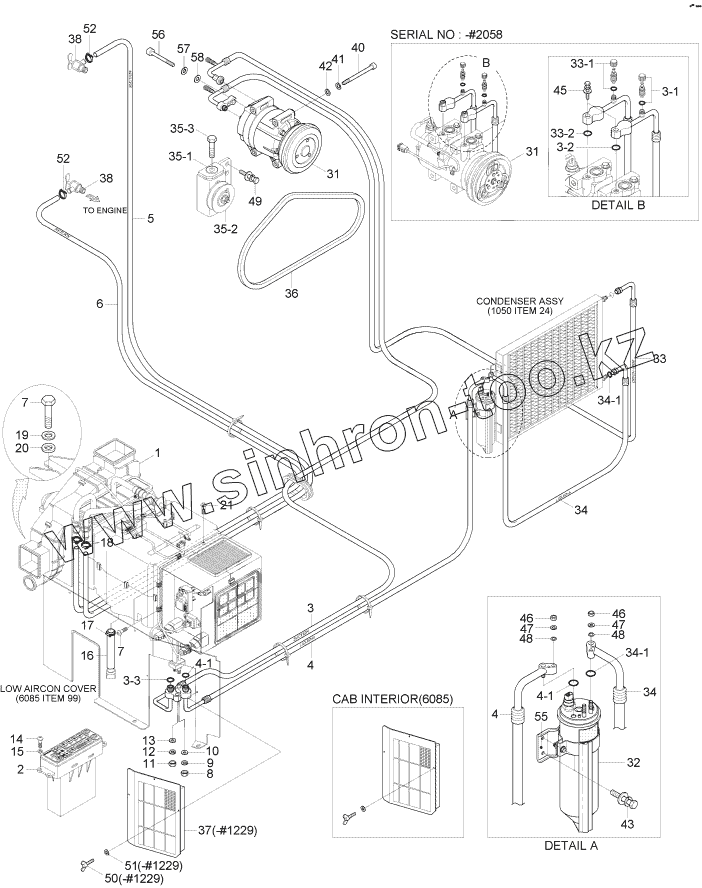

Каталог запасных частей к технике: Hyundai R170W-7. AIRCON & HEATER MOUNTING (AUTO)
42
46
46
51
52
52
47
47
34-1
34-1
1
2
2
3
3
3-1
3-2
3-3
4
4
4-1
4-1
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
31
31
31
31
32
33
33
33-1
33-2
34
34
35-1
35-2
35-3
36
36
37
38
38
40
40
41
43
45
48
48
49
50
55
56
57
58
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 42 | S411-080006 | WASHER-SPRING | |
| 46 | S205-061006 | Nut-Hex | |
| 51 | S403-06100B | Washer-Plain | |
| 52 | S572-220006 | CLAMP-HOSE,WIRE TYPE | |
| 47 | S411-060006 | WASHER-SPRING | |
| 34-1 | A305000209-2 | O-Ring | |
| 1 | Aircon | Aircon & Heater Mtg | |
| 2 | 11N6-90430 | Control Assy-Fatc | |
| 2 | 11N6-90431 | Control Assy-Fatc | |
| 3 | 11N4-90100 | Hose-Suction | |
| 3 | 11N4-90101 | Hose-Suction | |
| 3-1 | A304000401-4 | Charge Valve Assy | |
| 3-2 | A310069299-2 | O-Ring | |
| 3-3 | A305000203-2 | O-Ring | |
| 4 | 11N5-90090 | Hose-Liquid | |
| 4-1 | A305000209-2 | O-Ring | |
| 5 | 11EK-92080 | Hose-Heater | |
| 6 | 11E6-92080 | HOSE-HEATER | |
| 7 | S017-120256 | Bolt-Hex | |
| 8 | S205-061006 | Nut-Hex | |
| 9 | S411-060006 | WASHER-SPRING | |
| 10 | S403-06100B | Washer-Plain | |
| 11 | S205-081006 | Nut-Hex | |
| 12 | S411-080006 | WASHER-SPRING | |
| 13 | S403-08100B | WASHER-PLAIN | |
| 14 | S179-050206 | Screw-Socket Rd Hd | |
| 15 | S403-05200B | Washer-Plain | |
| 16 | 11EK-92090 | HOSE-DRAIN | |
| 17 | S520-020000 | CLAMP-HOSE | |
| 18 | S572-220006 | CLAMP-HOSE,WIRE TYPE | |
| 19 | S441-120006 | Washer-Hardened | |
| 20 | 73NB-56400 | SHIM | |
| 21 | S151-040126 | SCREW-TAPPING | |
| 31 | 11N6-90040 | Compressor Assy | |
| 31 | 11Q6-90040 | COMPRESSOR ASSY | |
| 32 | 11N6-90060 | Drier-Receiver | |
| 33 | 11N6-90190 | Hose-Discharge | |
| 33 | 11N6-90191 | Hose-Discharge | |
| 33-1 | A304000301-4 | Charge Valve Assy | |
| 33-2 | A305000206-2 | O-Ring | |
| 33-3 | A305000205-2 | O-Ring | |
| 34 | 11N4-90080 | Hose-Liquid | |
| 35 | 11N6-90110 | PULLEY-IDLE | |
| 35-1 | A4760-508-00-2 | BRACKET-PULLEY | |
| 35-2 | A4700-511-01-2 | PULLEY-IDLE | |
| 35-3 | A8900-518-03-3 | Bolt-Tension | |
| 36 | 12E2-3505 | V-BELT | |
| 36 | 11N4-94030 | V-BELT | |
| 37 | 11N6-90340 | Filter-Rec | |
| 38 | 14L1-01350 | Valve-Heater | |
| 40 | S109-080956 | Bolt-Socket | |
| 40 | S109-080856 | Bolt-Socket | |
| 41 | S403-081006 | Washer-Plain | |
| 43 | S035-061526 | BOLT-W/WASHER | |
| 45 | S035-083526 | Bolt-W/Washer | |
| 48 | S403-06200B | WASHER-PLAIN | |
| 49 | S037-102026 | BOLT-W/WASHER | |
| 50 | S091-060156 | Bolt-Wing | |
| 55 | 11N6-90120 | Bracket-R/Drier | |
| 56 | S018-100356 | BOLT-HEX | |
| 57 | S411-100006 | WASHER-SPRING | |
| 58 | S403-10200B | WASHER-PLAIN |
