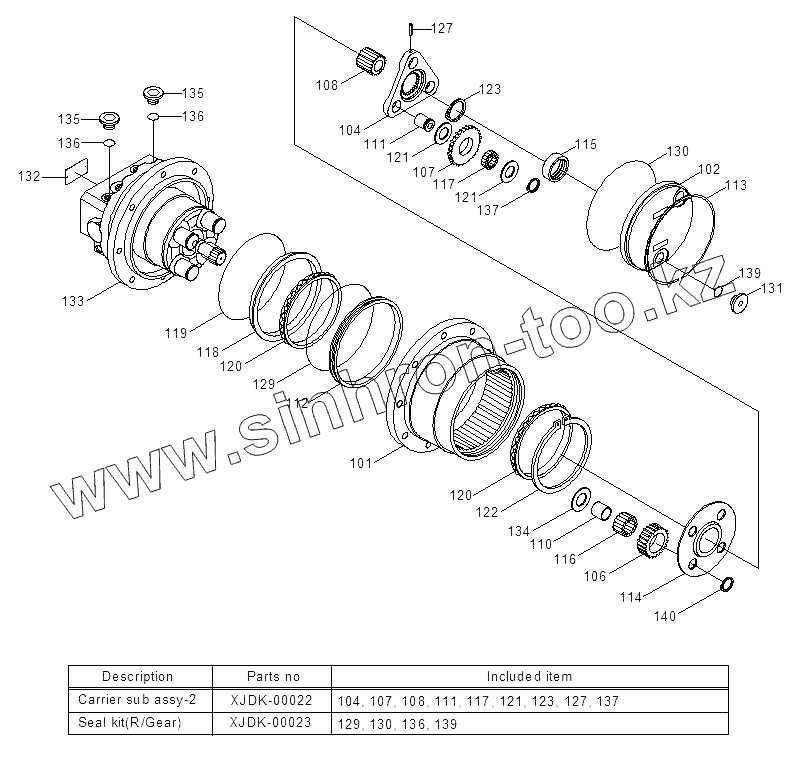

Каталог запасных частей к технике: Hyundai R16-9. TRAVEL REDUCTION GEAR
XJDK-00022
XJDK-00023
101
102
104
106
107
108
110
111
112
113
114
115
116
117
118
119
120
120
121
121
122
123
127
129
130
131
132
133
134
135
135
136
136
137
139
140
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| XJDK-00022 | XJDK-00022 | CARRIER SUB ASSY-2 | |
| XJDK-00023 | XJDK-00023 | SEAL KIT-REDUCTION GEAR | |
| TRAVEL UNIT | TRAVEL UNIT | TRAVEL UNIT | |
| 101 | XJDK-00001 | BODY | |
| 102 | XJDK-00002 | COVER | |
| 104 | CARRIER-2 | CARRIER-2 | |
| 106 | XJDK-00003 | GEAR-B1 | |
| 107 | GEAR-B2 | GEAR-B2 | |
| 108 | GEAR-S1 | GEAR-S1 | |
| 110 | XJDK-00004 | RING | |
| 111 | PIN-B2 | PIN-B2 | |
| 112 | XJDK-00005 | RING-SEAL | |
| 113 | XJDK-00006 | RING-SNAP | |
| 114 | XJDK-00007 | PLATE-THRUST | |
| 115 | XJDK-00008 | RING-SLIDE | |
| 116 | XJDK-00009 | NEEDLE | |
| 117 | NEEDLE | NEEDLE | |
| 118 | XJDK-00010 | SEAT-FLOATING | |
| 119 | O-RING | O-RING | |
| 120 | XJDK-00011 | BEARING | |
| 121 | WASHER-THRUST | WASHER-THRUST | |
| 122 | XJDK-00012 | RING-SNAP | |
| 123 | RING-SNAP | RING-SNAP | |
| 127 | PIN-SPRING | PIN-SPRING | |
| 129 | XJDK-00013 | O-RING | |
| 130 | XJDK-00014 | O-RING | |
| 131 | XJDK-00015 | PLUG | |
| 132 | NAME PLATE | NAME PLATE | |
| 133 | XJDK-00016 | HYDRAULIC MOTOR | |
| 134 | XJDK-00017 | WASHER-THRUST | |
| 135 | XJDK-00018 | PLUG | |
| 136 | XJDK-00019 | O-RING | |
| 137 | RING-SNAP | RING-SNAP | |
| 139 | XJDK-00020 | O-RING | |
| 140 | XJDK-00021 | RING-SNAP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
