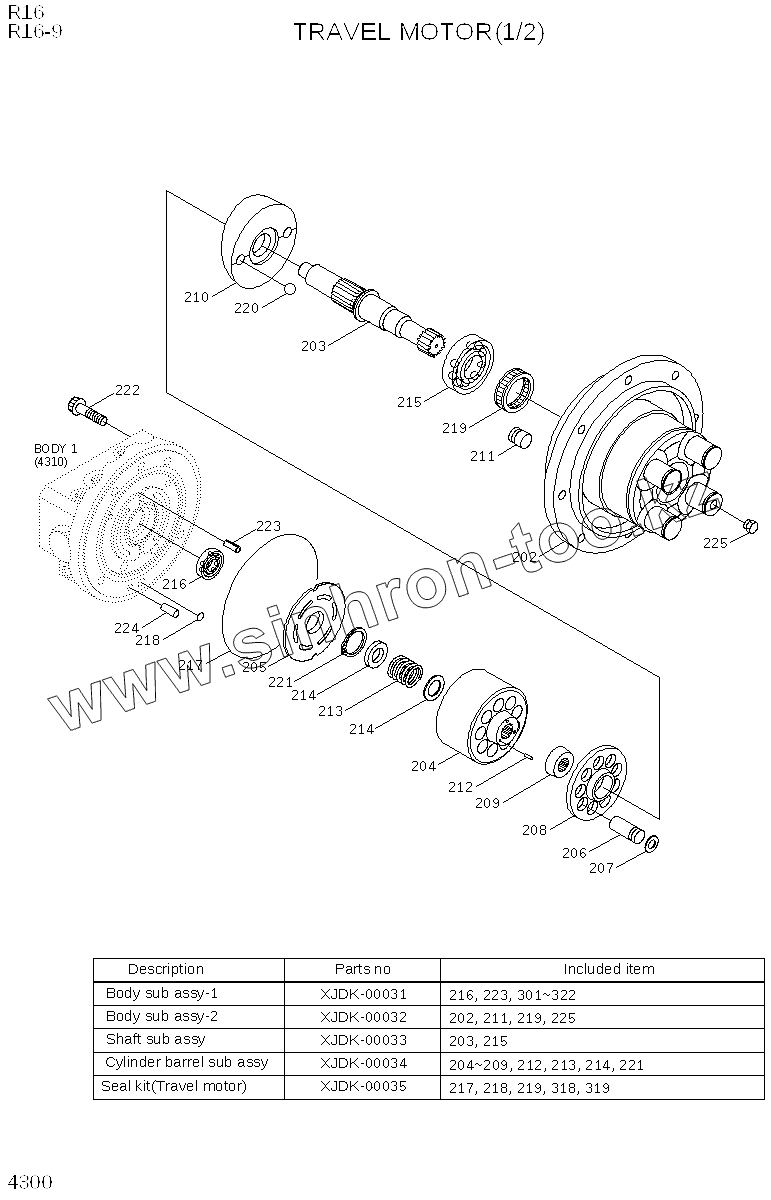

Каталог запасных частей к технике: Hyundai R16-9. TRAVEL MOTOR (1/2)
2
3
4
5
6
202
203
204
205
206
207
208
209
210
211
212
213
214
214
215
216
217
218
219
220
221
222
223
224
225
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31MJ-40030 | 31MJ-40030 | TRAVEL UNIT | |
| 2 | XJDK-00035 | SEAL KIT-TRAVEL MOTOR | |
| 3 | XJDK-00031 | BODY SUB ASSY-1 | |
| 4 | XJDK-00032 | BODY SUB ASSY-2 | |
| 5 | XJDK-00033 | SHAFT SUB ASSY | |
| 6 | XJDK-00034 | CYL BARREL SUB ASSY | |
| 202 | BODY-2 | BODY-2 | |
| 203 | SHAFT | SHAFT | |
| 204 | BARREL-CYLINDER | BARREL-CYLINDER | |
| 205 | PLATE-VALVE | PLATE-VALVE | |
| 206 | PISTON | PISTON | |
| 207 | SHOE | SHOE | |
| 208 | HOLDER-SHOE | HOLDER-SHOE | |
| 209 | HOLDER-BARREL | HOLDER-BARREL | |
| 210 | XJDK-00024 | PLATE-SWASH | |
| 211 | PISTON-CONTROL | PISTON-CONTROL | |
| 212 | PIN | PIN | |
| 213 | SPRING-C | SPRING-C | |
| 214 | RETAINER | RETAINER | |
| 215 | BEARING | BEARING | |
| 216 | BEARING | BEARING | |
| 217 | XJDK-00025 | O-RING | |
| 218 | XJDK-00026 | O-RING | |
| 219 | SEAL-OIL | SEAL-OIL | |
| 220 | XJDK-00027 | BALL | |
| 221 | RING-SNAP | RING-SNAP | |
| 222 | XJDK-00028 | SCREW | |
| 223 | PIN-SPRING | PIN-SPRING | |
| 224 | XJDK-00029 | PIN | |
| 225 | PLUG | PLUG |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
