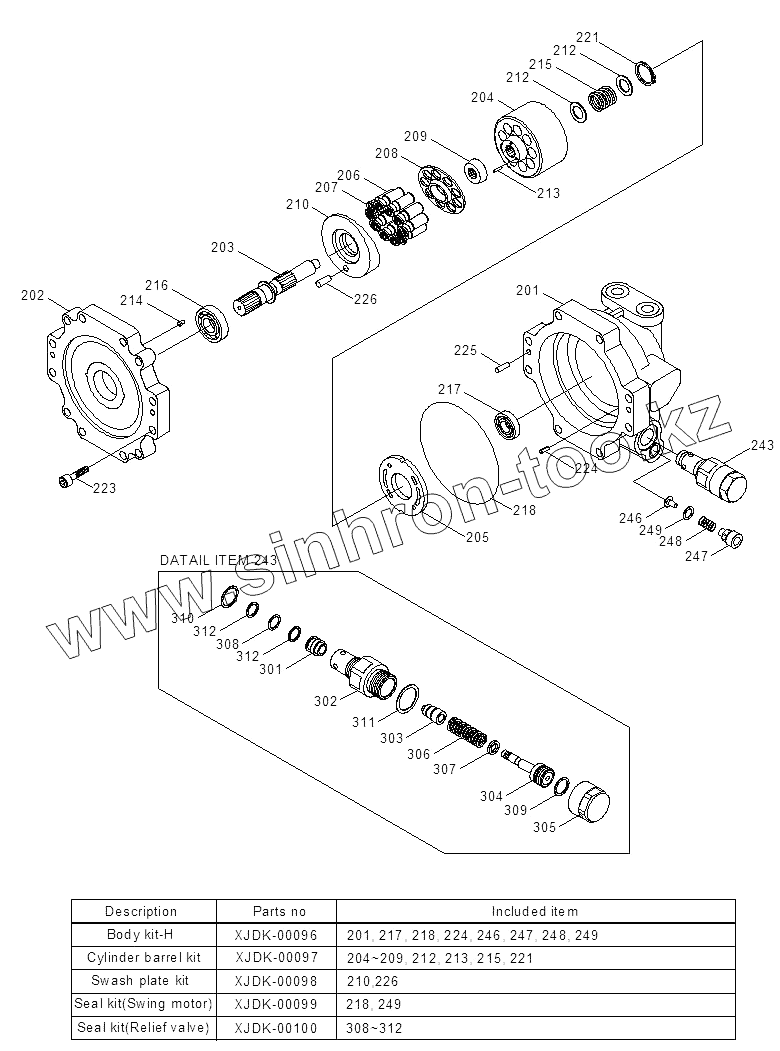

Каталог запасных частей к технике: Hyundai R16-9. SWING MOTOR
XJDK-00081
4
5
6
7
8
201
202
203
204
205
206
207
208
209
210
212
212
213
214
215
216
217
218
221
223
224
225
226
243
246
247
248
249
301
302
303
304
305
306
307
308
309
310
311
312
312
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| XJDK-00081 | XJDK-00081 | SWING MOTOR | |
| XJDK-00090 | XJDK-00090 | RELIEF VALVE | |
| 31MJ-10150 | 31MJ-10150 | SWING UNIT | |
| 4 | XJDK-00096 | BODY KIT-H | |
| 5 | XJDK-00097 | CYLINDER BARREL KIT | |
| 6 | XJDK-00098 | SWASH PLATE KIT | |
| 7 | XJDK-00099 | SEAL KIT-SWING MOTOR | |
| 8 | XJDK-00100 | SEAL KIT-RELIEF VALVE | |
| 201 | BODY-H | BODY-H | |
| 202 | PLATE-S | PLATE-S | |
| 203 | SHAFT | SHAFT | |
| 204 | BARREL-CYLINDER | BARREL-CYLINDER | |
| 205 | PLATE-VALVE | PLATE-VALVE | |
| 206 | PISTON | PISTON | |
| 207 | SHOE | SHOE | |
| 208 | HOLDER-SHOE | HOLDER-SHOE | |
| 209 | HOLDER-BARREL | HOLDER-BARREL | |
| 210 | PLATE-SWASH | PLATE-SWASH | |
| 212 | RETAINER | RETAINER | |
| 213 | PIN | PIN | |
| 214 | XJDK-00082 | FILTER | |
| 215 | SPRING-C | SPRING-C | |
| 216 | XJDK-00083 | BEARING | |
| 217 | XJDK-00084 | BEARING | |
| 218 | XJDK-00085 | O-RING | |
| 221 | XJDK-00086 | RING-SNAP | |
| 223 | XJDK-00087 | SCREW | |
| 224 | XJDK-00088 | PIN-SPRING | |
| 225 | XJDK-00110 | PIN | |
| 226 | PIN | PIN | |
| 243 | RELIEF VALVE | RELIEF VALVE | |
| 246 | CHECK VALVE | CHECK VALVE | |
| 247 | PLUG | PLUG | |
| 248 | SPRING | SPRING | |
| 249 | XJDK-00019 | O-RING | |
| 301 | SEAT | SEAT | |
| 302 | RETAINER | RETAINER | |
| 303 | POPPET | POPPET | |
| 304 | PISTON | PISTON | |
| 305 | CAP | CAP | |
| 306 | SPRING | SPRING | |
| 307 | SPACER | SPACER | |
| 308 | XJDK-00020 | O-RING | |
| 309 | XJDK-00030 | O-RING | |
| 310 | XJDK-00091 | O-RING | |
| 311 | XJDK-00092 | O-RING | |
| 312 | XJDK-00093 | RING-BACK UP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
