Каталог запасных частей к технике: Hyundai R16-9. SIDE COVER ASSY

Тип техники

Марка

Модель

Схема

2

2

2

2-1

2-1

2-1

2-1

2-1

2-1

2-1

3

3-1

3-1

3-1

10

10

2

2-1

2-2

2-3

2-4

2-5

2-5

2-6

2-7

2-8

2-9

2-10

3

3-1

3-2

3-3

10

11

11

12

12

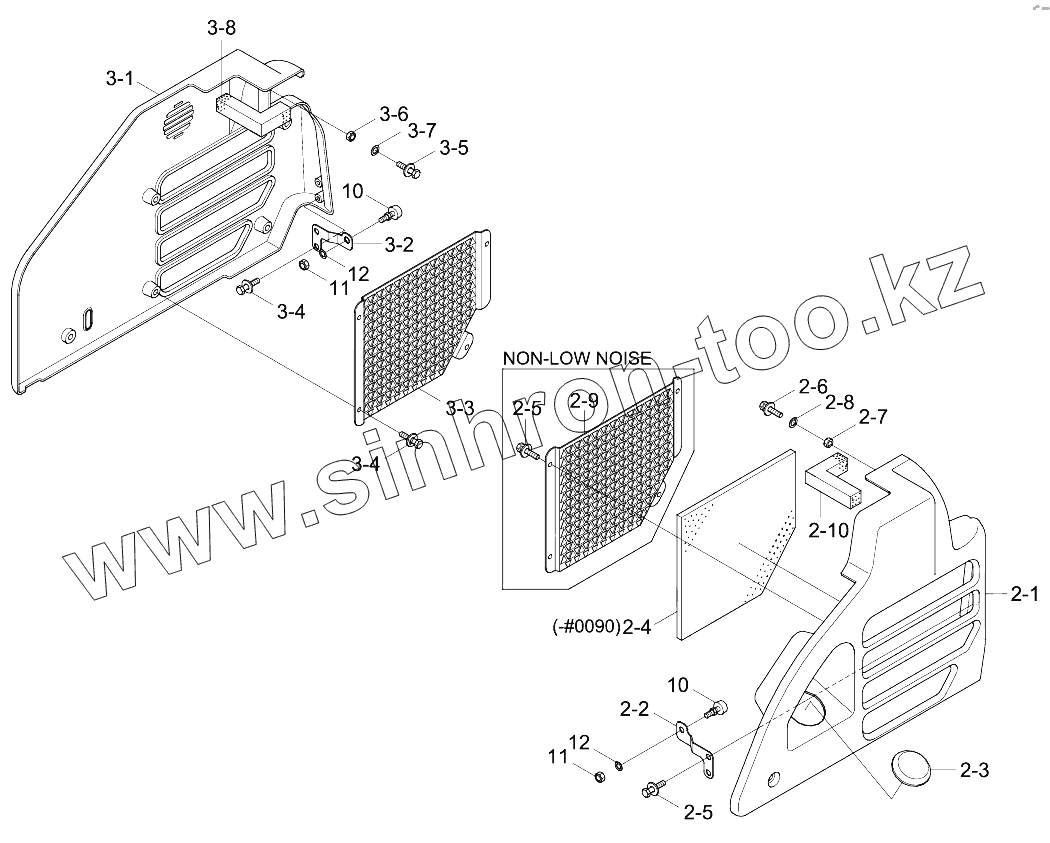

Позиция на иллюстрации	Заводской номер детали		Название детали
2	72MJ-52000		Cover Side Assy-Lh
2	71MJ-62000		Cover Side Assy-Lh
2	72MJ-62000		Cover Side Assy-Lh
2-1	71MJ-52102		Cover Side Body-Lh
2-1	72MJ-52100		Cover Side Body-Lh
2-1	72MJ-52101		Cover Side Body-Lh
2-1	71MJ-62100		Cover Side Body-Lh
2-1	71MJ-62101		Cover Side Body-Lh
2-1	72MJ-62100		Cover Side Body-Lh
2-1	72MJ-62101		Cover Side Body-Lh
3	72MJ-53000		Cover Side Assy-Rh
3-1	71MJ-53102		Side Cover Body-Rh
3-1	72MJ-53100		Side Cover Body-Rh
3-1	72MJ-53101		Side Cover Body-Rh
10	71MJ-13150		Bumper-Rubber
2	71MJ-52001		Cover Side Assy-Lh
2-1	71MJ-52101		Cover Side Body-Lh
2-2	71MJ-53201		Plate-Mtg
2-3	71MJ-52400		Rubber-Fuel
2-4	71MJ-52600		Sponge
2-5	S035-082056		BOLT-W/WASHER
2-6	S035-084526		Bolt-W/Washer
2-7	S205-081006		Nut-Hex
2-8	S403-085006		Washer-Plain
2-9	71MJ-53400		Grill Wa-Lh
2-10	71MJ-53800		Sponge
3	71MJ-53001		Cover Side Assy-Rh
3-1	71MJ-53101		Side Cover Body-Rh
3-2	71MJ-52201		Plate-Mtg
3-3	71MJ-53300		Grill Wa-Rh
10	71EH-13150		BUMPER-RUBBER
11	S204-101006		Nut-Hex
12	S403-10500B		WASHER-PLAIN

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
