Каталог запасных частей к технике: Hyundai R16-9. QICK COUPER PIPING
10
11
12
13
14
15
16
17
17
18
19
2
20
21
22
23
23
23
23
24
3
4
5
6
6
7
7
8
9
9
9
9
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
B
B

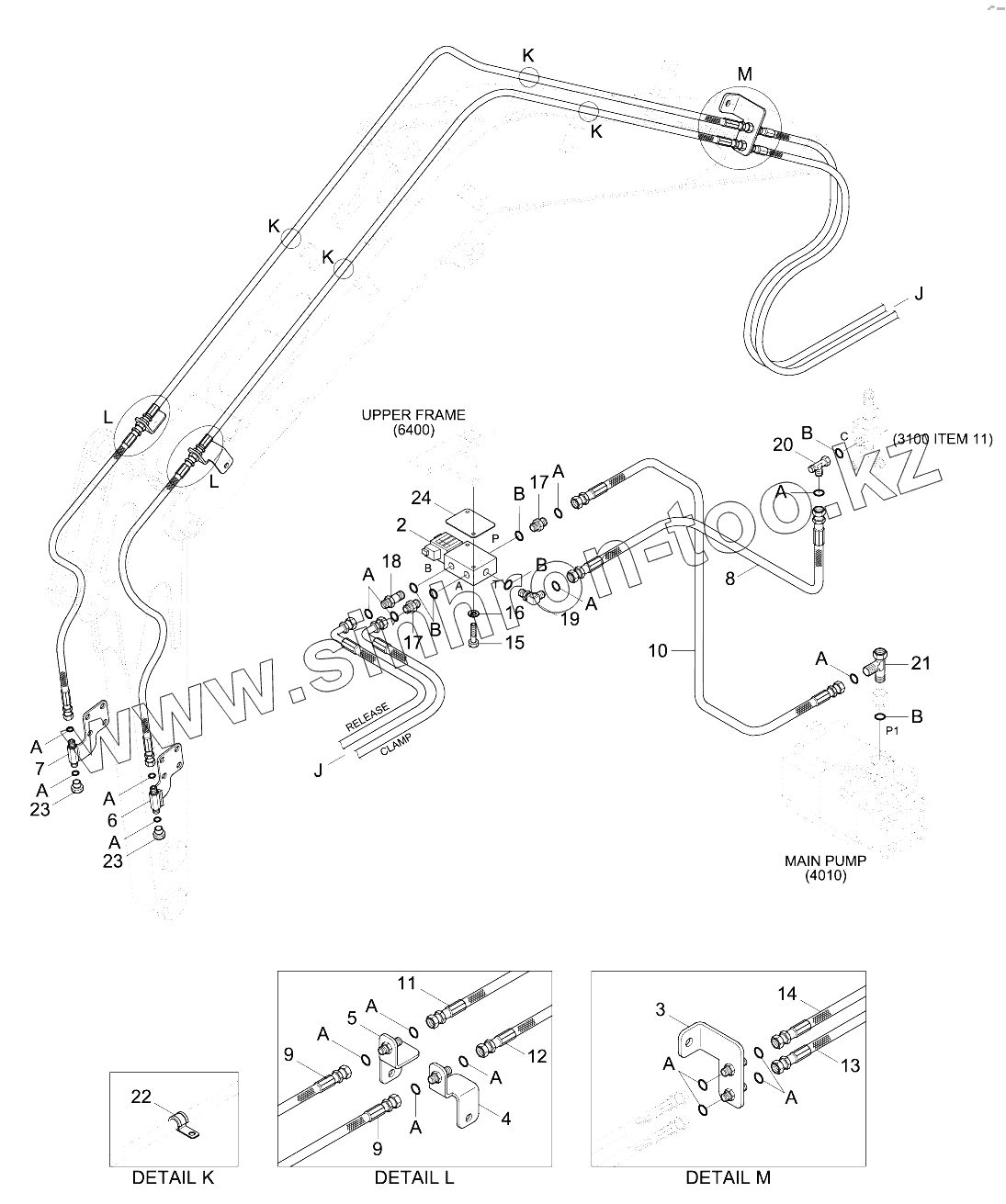

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | P910-045027 | HOSE ASSY-ORFS 0X0 | |
| 11 | P910-045032 | HOSE ASSY-ORFS 0X0 | |
| 12 | P910-045035 | HOSE ASSY-ORFS 0X0 | |
| 13 | 31MJ-90810 | HOSE ASSY-ORFS,THD(0X90) | |
| 14 | 31MJ-90820 | HOSE ASSY-ORFS,THD(0X90) | |
| 15 | S015-080506 | BOLT-HEX | |
| 16 | S411-080006 | WASHER-SPRING | |
| 17 | X500-110001 | CONNECTOR-ORFS | |
| 18 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 19 | X520-110001 | ELBOW-90,ORFS | |
| 2 | 31M9-20060 | SOLENOID VALVE | |
| 20 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 21 | 31N4-22170 | TEE-RUN TYPE | |
| 22 | 31L7-10200 | CLAMP-TUBE | |
| 23 | X710-100102 | CAP-HYD,ORFS | |
| 23 | P290-100102 | PLUG-CAP | |
| 24 | 31MJ-90210 | SPACER | |
| 3 | 31MJ-90131 | TERMINAL ASSY | |
| 4 | 31MJ-90140 | TERMINAL ASSY | |
| 5 | 31MJ-90150 | TERMINAL ASSY | |
| 6 | 31MJ-90171 | TERMINAL ASSY | |
| 6 | 31MJ-90172 | TERMINAL ASSY | |
| 7 | 31MJ-90181 | TERMINAL ASSY | |
| 7 | 31MJ-90182 | TERMINAL ASSY | |
| 8 | P910-042013 | HOSE ASSY-ORFS 0X0 | |
| 9 | P913-045017 | HOSE ASSY-ORFS 0X0 | |
| 9 | P913-045022 | HOSE ASSY-ORFS 0X0 | |
| A | S621-011001 | O-RING | |
| B | S631-011004 | O-RING |
