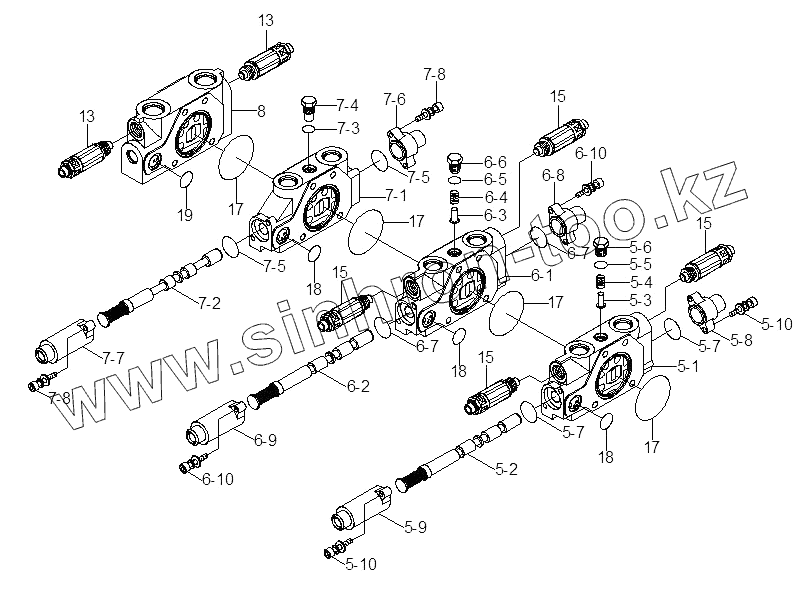

Каталог запасных частей к технике: Hyundai R16-9. MAIN CONTROL VALVE (2/3)
XJCK-00308
XJCK-00343
XJCK-00344
XJCK-00347
XJCK-00331
XJCK-00476
XJCK-00304
XJCK-00303
XJCK-00302
XJCK-00473
XJCK-00308
XJCK-00308
XJCK-00308
XJCK-00308
XJCK-00308
XJCK-00307
XJCK-00307
XJCK-00307
XJCK-00306
XJCK-00351
MainControlValve
XJCK-00470
XJCK-00350
XJCK-00306
XJCK-00001
XJCK-00001
XJCK-00001
XJCK-00352
XJCK-00305
XJCK-00305
XJCK-00305
XJCK-00305
XJCK-00305
XJCK-00305
XJCK-00306
5
6
7
8
13
13
15
15
15
15
17
17
17
17
18
18
18
19
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| XJCK-00308 | XJCK-00308 | Bolt-S/Hd W/Washer | |
| XJCK-00343 | XJCK-00343 | Body-Work | |
| XJCK-00344 | XJCK-00344 | Body-Work | |
| XJCK-00347 | XJCK-00347 | Body-Work | |
| XJCK-00331 | XJCK-00331 | Plug | |
| XJCK-00476 | XJCK-00476 | Spool Assy | |
| XJCK-00304 | XJCK-00304 | Plug | |
| XJCK-00303 | XJCK-00303 | Spring | |
| XJCK-00302 | XJCK-00302 | Poppet | |
| XJCK-00473 | XJCK-00473 | Spool Assy | |
| XJCK-00308 | XJCK-00308 | Bolt-S/Hd W/Washer | |
| XJCK-00648 | XJCK-00648 | Relief Valve | |
| XJCK-00308 | XJCK-00308 | Bolt-S/Hd W/Washer | |
| XJCK-00307 | XJCK-00307 | Cover-Pilot | |
| XJCK-00306 | XJCK-00306 | Cover-Pilot | |
| XJCK-00351 | XJCK-00351 | Spring | |
| MainControlValve | MainControlValve | Main Control Valve | |
| XJCK-00470 | XJCK-00470 | Spool Assy | |
| XJCK-00350 | XJCK-00350 | Poppet | |
| XJCK-00306 | XJCK-00306 | Cover-Pilot | |
| XJCK-00001 | XJCK-00001 | O-Ring | |
| XJCK-00001 | XJCK-00001 | O-Ring | |
| XJCK-00001 | XJCK-00001 | O-Ring | |
| XJCK-00352 | XJCK-00352 | Plug | |
| XJCK-00305 | XJCK-00305 | O-Ring | |
| XJCK-00305 | XJCK-00305 | O-Ring | |
| XJCK-00305 | XJCK-00305 | O-Ring | |
| XJCK-00306 | XJCK-00306 | Cover-Pilot | |
| 5 | XJCK-00469 | Pto Work Block | |
| 6 | XJCK-00472 | Arm Work Block | |
| 7 | XJCK-00475 | Travel Work Block | |
| 8 | XJCK-00378 | Work Block-Inlet | |
| 13 | XJCK-00486 | Relief Valve | |
| 15 | XJCK-00488 | Overload Relief Valve | |
| 17 | XJCK-00290 | O-Ring | |
| 18 | XJCK-00291 | O-Ring | |
| 19 | XJCK-00292 | O-Ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
