LOWER FRAME & COVER

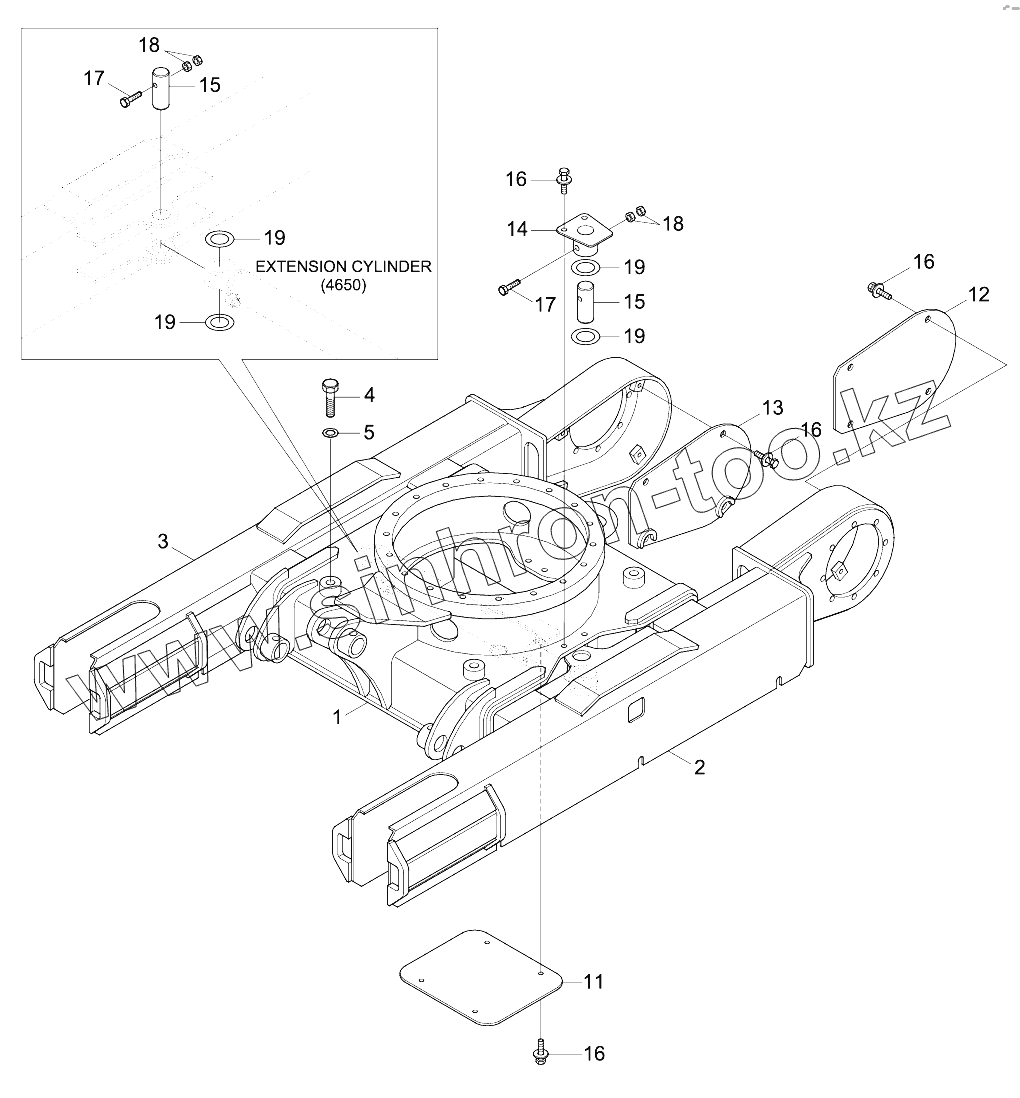

Каталог запасных частей к технике: Hyundai R16-9. LOWER FRAME & COVER
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
R140W-9 (2013)
R140W-9S (2013)
R16-9 (2013)
R170W-7 (2013)
R170W-9 (2013)
R170W-9S (2013)
R180LC-9 (2013)
R180LC-9S (2013)
R180W-9S (2013)
R210LC-9 (2013)
R210NLC-9 (2013)
R210W-9 (2013)
R330LC-9A (2013)
R330LC-9S (2013)
R330LC-9SH (2013)
Схема
>
Не выбрано
ENGINE MOUNTING
ENGINE CONTROL SYSTEM
AIR INTAKE & EXHAUST SYSTEM
COOLING SYSTEM
FUEL SYSTEM
FUEL TANK
HEATER MOUNTING
HEATER ASSY
ELECTRIC 1
ELECTRIC 2
ELECTRIC 3
CANOPY ELECTRIC
CABIN ELECTRIC
CABIN ELECTRIC (ROOM)
HYDRAULIC TANK
UPPER HYDRAULIC PIPING 1
UPPER HYDRAULIC PIPING 2
UPPER HYDRAULIC PIPING 3
UPPER HYDRAULIC PIPING 4
UPPER HYDRAULIC PIPING 5
RCV HYD PIPING 1
RCV HYD PIPING 2
RCV HYD PIPING 3 (PATTERN VALVE)
RCV HYD PIPING 4
RCV HYD PIPING 5 (PATTERN VALVE)
PILOT HYD PIPING 1 (DOZER LEVER)
PILOT HYD PIPING 2 (TRAVEL)
PILOT HYD PIPING 3 (SOLENOID)
PILOT HYD PIPING 4 (TRAVEL, ALARM)
TRAVEL HYD PIPING
ATTACH HYDRAULIC PIPING
QICK COUPER PIPING
MAIN PUMP (1/2)
MAIN PUMP (2/2)
MAIN CONTROL VALVE (1/3)
MAIN CONTROL VALVE (2/3)
MAIN CONTROL VALVE (3/3)
SWING MOTOR
SWING REDUCTION GEAR
TRAVEL MOTOR (1/2)
TRAVEL MOTOR (2/2)
TRAVEL REDUCTION GEAR
TURNING JOINT
REMOTE CONTROL VALVE
REMOTE CONTROL VALVE
REMOTE CONTROL PEDAL (TRAVEL)
REMOTE CONTROL PEDAL (BOOM SWING)
SOLENOID VALVE
BOOM CYLINDER
ARM CYLINDER
BUCKET CYLINDER
BUCKET CYLINDER
BLADE CYLINDER
BOOM SWING CYLINDER
EXTENSION CYLINDER
QUICK CLAMP ASSY(HOOK TYPE)
QUICK CLAMP ASSY(CLOSE TYPE)
UNDERCARRIAGE MOUNTING
LOWER ROLLER
ADJUST COMPONENT
CANOPY MOUNTING
CABIN MOUNTING
CABIN INTERIOR
CABIN INTERIOR (WITH HEATER)
CABIN ASSY (1/5)
CABIN ASSY (2/5)
CABIN ASSY (3/5)
CABIN ASSY (4/5)
CABIN ASSY (5/5)
SEAT BASE ASSY
CONSOLE BOX-LH
CONSOLE BOX-RH
SEAT
COWLING
SIDE COVER ASSY
ENGINE HOOD SUB ASSY
UNDER COVER
GROMMET GROUP
UPPER FRAME & COUNTERWEIGHT
BOOM SWING SYSTEM
SWING BEARING GROUP
LOWER FRAME & COVER
DOZER BLADE
BOOM MOUNTING
BOOM (1.80M, STD)
ARM (0.96M, STD)
ARM (1.12M, LONG)
BUCKET (0.04M3 SAE HEAPED)
BUCKET CONTROL GROUP
TOOLS
DECALS(CANOPY TYPE,ENGLISH)
DECALS(CABIN TYPE,ENGLISH)
MANUALS
HCE-DT KIT
CYLINDER HEAD
VALVE DRIVE
ROCKER COVER
CAMSHAFT
CRANKCASE & CRANKSHAFT BEARING
GEAR OR CHAIN CASE
FLYWHEEL HOUSING
OIL PAN
PISTON & CONNECTING ROD
CRANKSHAFT & FLYWHEEL
INLET & EXHAUST SYSTEM
OIL SCREEN
OIL PRESSURE GAGE UNIT & OIL FILTER
OIL FILTER & GAGE
BREATHER
WATER PUMP, FAN & DRIVE BELT
THERMOSTAT
WATER HOSE & PIPE
WATER TEMPERATURE GAGE UNIT
RADIATOR
FUEL PUMP
NOZZLE
FUEL INJECTION PIPE
FUEL PIPE
FUEL FILTER
WATER SEPARATOR
GOVERNOR
FUEL INJECTION PUMP 1
FUEL INJECTION PUMP 2
FUEL INJECTION PUMP DRIVE
STARTER
STARTER (12V-1.7KW)
GLOW PLUG
GLOW LAMP
ALTERNATOR
ALTERNATOR (12V-40A)
REGULATOR
MAGNETIC SWITCH
SPEED CONTROL
51MJ-01012
1
2
3
4
5
11
12
13
14
15
15
16
16
16
16
17
17
18
18
19
19
19
19
Позиция на иллюстрации
Заводской номер детали
Название детали
51MJ-01012
51MJ-01012
Lower Frame Assy
1
51MJ-01023
Frame Wa-Center
2
51MJ-01213
Side Frame Wa-Lh
3
51MJ-01223
Side Frame Wa-Rh
4
51MJ-01810
Bolt-Stopper
5
S441-200006
WASHER-HARDENED
11
51MJ-10010
Cover-Lower
12
51MJ-10020
Cover-T/Motor, Lh
13
51MJ-10030
Cover-T/Motor, Rh
14
51MJ-10040
Cover
15
61MJ-51771
Pin Wa
16
S037-102556
BOLT-W/WASHER
17
S017-100706
Bolt-Hex
18
S205-10100B
NUT-HEX
19
S391-030055
Shim-Round
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
