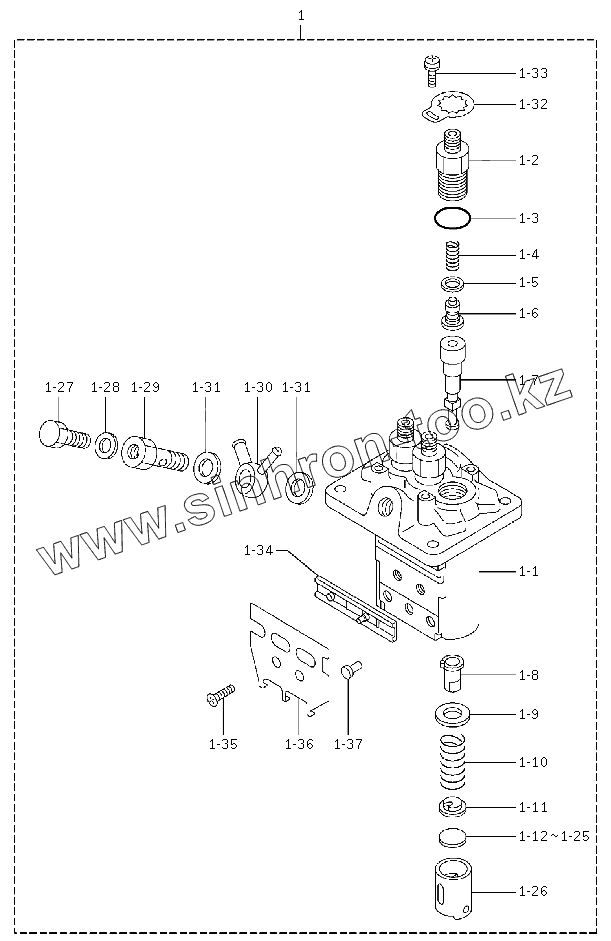

Каталог запасных частей к технике: Hyundai R16-9. FUEL INJECTION PUMP 2

Тип техники

Марка

Модель

Схема

1

1-1

1-2

1-3

1-4

1-5

1-6

1-7

1-8

1-9

1-10

1-11

1-12

1-13

1-14

1-15

1-16

1-17

1-18

1-19

1-20

1-21

1-22

1-23

1-24

1-25

1-26

1-27

1-28

1-29

1-30

1-31

1-31

1-32

1-33

1-34

1-35

1-36

1-37

Позиция на иллюстрации	Заводской номер детали		Название детали
1	XJAF-02794		Pump Assy-Fuel Injection
1-1	XJAF-02795		Housing Sub Assy
1-2	XJAF-02796		Holder-Delivery
1-3	XJAF-02797		O-Ring
1-4	XJAF-02798		Spring-Delivery
1-5	XJAF-02799		Gasket-Delivery
1-6	XJAF-02800		Valve Sub Assy
1-7	XJAF-02801		Element Sub Assy
1-8	XJAF-02802		Sleeve Sub Assy
1-9	XJAF-02803		Seat-Spring Upper
1-10	XJAF-02804		Spring-Plunger
1-11	XJAF-02805		Seat-Spring Lower
1-12	XJAF-02806		Plate-Tappet Shim
1-13	XJAF-02807		Plate-Tappet Shim
1-14	XJAF-02808		Plate-Tappet Shim
1-15	XJAF-02809		Plate-Tappet Shim
1-16	XJAF-02810		Plate-Tappet Shim
1-17	XJAF-02811		Plate-Tappet Shim
1-18	XJAF-02812		Plate-Tappet Shim
1-19	XJAF-02813		Plate-Tappet Shim
1-20	XJAF-02814		Plate-Tappet Shim
1-21	XJAF-02815		Plate-Tappet Shim
1-22	XJAF-02816		Plate-Tappet Shim
1-23	XJAF-02817		Plate-Tappet Shim
1-24	XJAF-02818		Plate-Tappet Shim
1-25	XJAF-02819		Plate-Tappet Shim
1-26	XJAF-02820		Tappet Sub Assy
1-27	XJAF-02821		Screw-Air Bleeder
1-28	XJAF-02822		Washer-Drain Screw
1-29	XJAF-02823		Screw-Hollow
1-30	XJAF-02824		Nipple-Swivel
1-31	XJAF-02825		Washer-Drain Union
1-32	XJAF-02826		Plate-Lock
1-33	XJAF-02827		Screw-W/Washer
1-34	XJAF-02828		Rack Assy-Control
1-35	XJAF-02829		Screw-Counter Sunk
1-36	XJAF-02830		Bracket-Stop Wire
1-37	XJAF-02831		Pin-Tappet Guide

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
