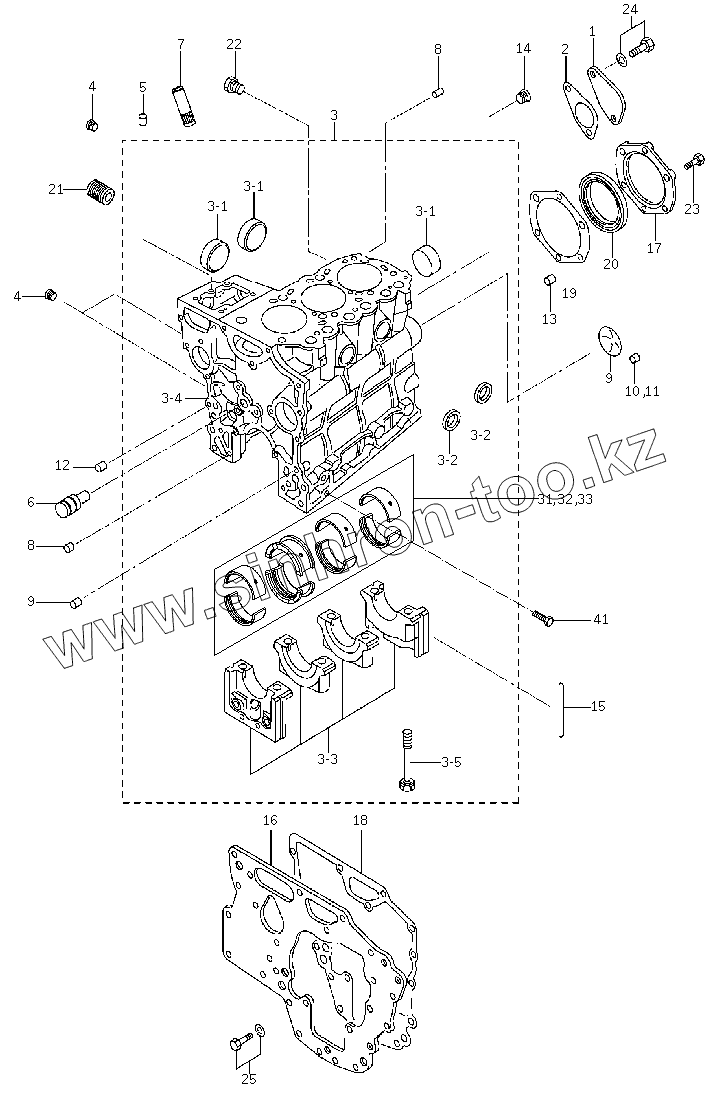

Каталог запасных частей к технике: Hyundai R16-9. CRANKCASE & CRANKSHAFT BEARING
1
2
3
3-1
3-1
3-1
3-2
3-2
3-5
4
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
31
32
33
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | XJAF-02124 | Cover | |
| 2 | XJAF-02719 | Gasket | |
| 3 | XJAF-02105 | Block Sub Assy-Cyl | |
| 3-1 | XJAF-01934 | Cap-Sealing | |
| 3-2 | XJAF-02025 | Cap-Sealing | |
| 3-5 | XJAF-01569 | Bolt-Bearing Cap | |
| 4 | XJAF-01570 | Plug-Taper | |
| 5 | XJAF-02089 | Pin-Dowel | |
| 6 | XJAF-02141 | Shaft-Idler | |
| 7 | XJAF-02096 | Guide-Oil Level | |
| 8 | XJAF-02006 | Pin-Dowel | |
| 9 | XJAF-02019 | Plug-Expansion | |
| 10 | XJAF-02222 | Bushing-Knock | |
| 11 | XJAF-02223 | Bushing-Knock | |
| 12 | XJAF-02225 | Bushing-Knock | |
| 13 | XJAF-02226 | Bushing-Knock | |
| 14 | XJAF-02232 | Plug-Tapered | |
| 15 | XJAF-02114 | Seal-Side | |
| 16 | XJAF-02720 | Plate-Front | |
| 17 | XJAF-02107 | Case-Oil Seal | |
| 18 | XJAF-01573 | Gasket-Front Plate | |
| 19 | XJAF-02721 | Gasket-O/Seal Case | |
| 20 | XJAF-01945 | Seal-Oil Rear | |
| 21 | XJAF-01568 | Shaft-Oil Filter | |
| 22 | XJAF-00613 | Plug-Taper | |
| 23 | XJAF-01965 | Bolt | |
| 24 | XJAF-01976 | Bolt-W/Washer | |
| 25 | XJAF-01979 | Bolt-W/Washer | |
| 31 | XJAF-02218 | Metal Set | |
| 32 | XJAF-02219 | Metal Set | |
| 33 | XJAF-02220 | Metal Set | |
| 41 | XJAF-01963 | Bolt |
