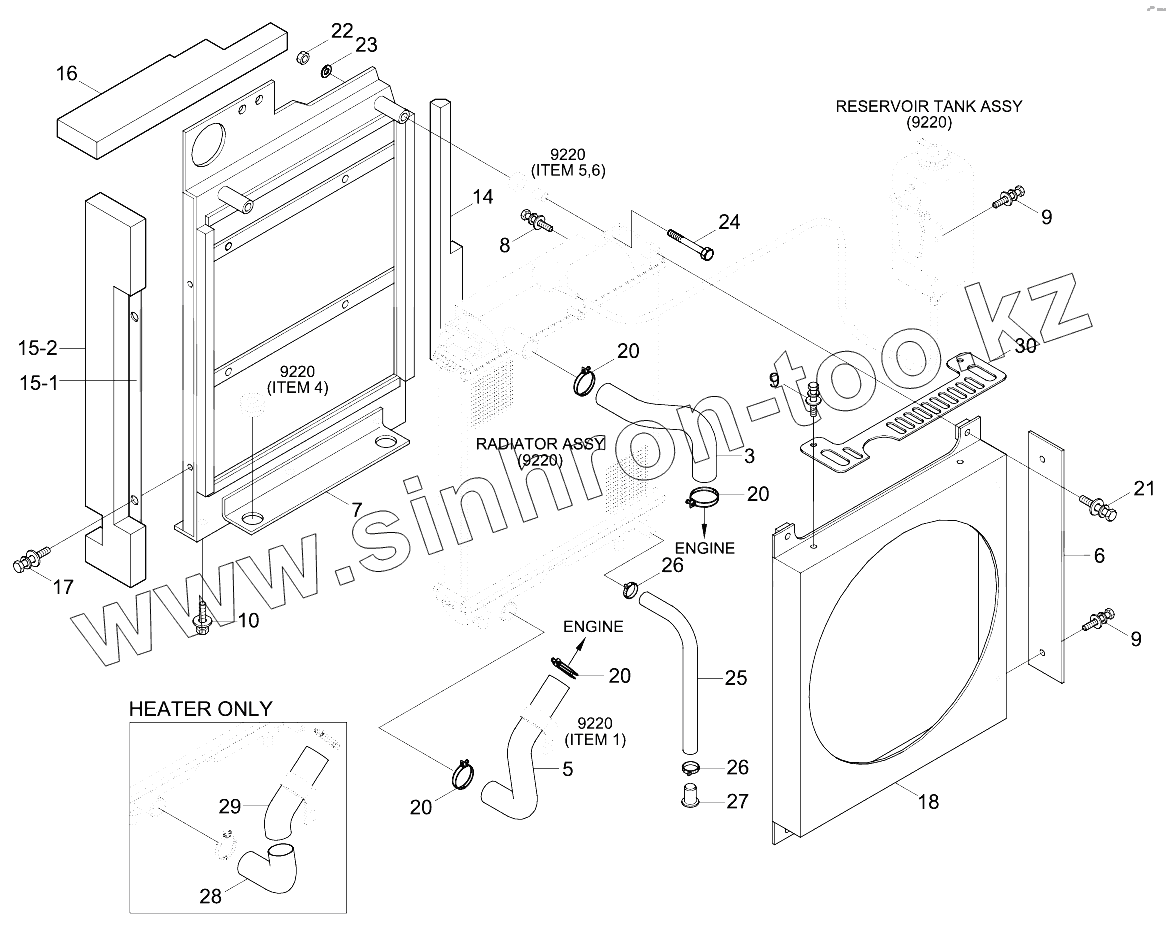

Каталог запасных частей к технике: Hyundai R16-9. COOLING SYSTEM
11MJ-40200
11MJ-40190
S571-160002
3
5
6
7
8
9
9
9
10
14
15
16
17
18
20
20
20
20
21
22
23
24
25
26
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 11MJ-40200 | 11MJ-40200 | Plate | |
| 11MJ-40190 | 11MJ-40190 | Sponge | |
| S571-160002 | S571-160002 | Clamp-Hose, Wire Type | |
| 3 | 11MJ-40320 | Hose-Rad Upper | |
| 5 | 11MJ-40330 | Hose-Rad Lower | |
| 6 | 11MJ-40121 | Guard-Fan | |
| 7 | 11MJ-40103 | Support Assy | |
| 8 | S035-082026 | BOLT-W/WASHER | |
| 9 | S035-061526 | BOLT-W/WASHER | |
| 10 | S037-102556 | BOLT-W/WASHER | |
| 14 | 11MJ-40160 | Sponge | |
| 15 | 11MJ-40170 | Screen Assy | |
| 16 | 11MJ-40180 | Sponge | |
| 17 | S035-081526 | BOLT-W/WASHER | |
| 18 | 11MJ-40310 | Shroud Assy | |
| 20 | S572-380006 | Clamp-Hose Wire Type | |
| 21 | S035-062026 | BOLT-W/WASHER | |
| 22 | S205-08100B | NUT-HEX | |
| 23 | S411-080006 | WASHER-SPRING | |
| 24 | S015-080756 | BOLT-HEX | |
| 25 | 11M8-50030 | Hose Assy | |
| 26 | 11HA-50110 | Clip-Hose | |
| 27 | S491-080302 | Pin-Clevis | |
| 28 | 11MJ-90110 | Hose-Rad Lower | |
| 29 | 11MJ-90120 | Hose-Rad Lower | |
| 30 | 11MK-40350 | Plate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
