Каталог запасных частей к технике: Hyundai R16-9. CABIN ELECTRIC
1
1
2
3
4
5
6
7
7-1
7-2
7-3
7-4
7-5
8
8
9
10
11
13
13
13
14
15
16
17
18
20
21
22
23
24
25

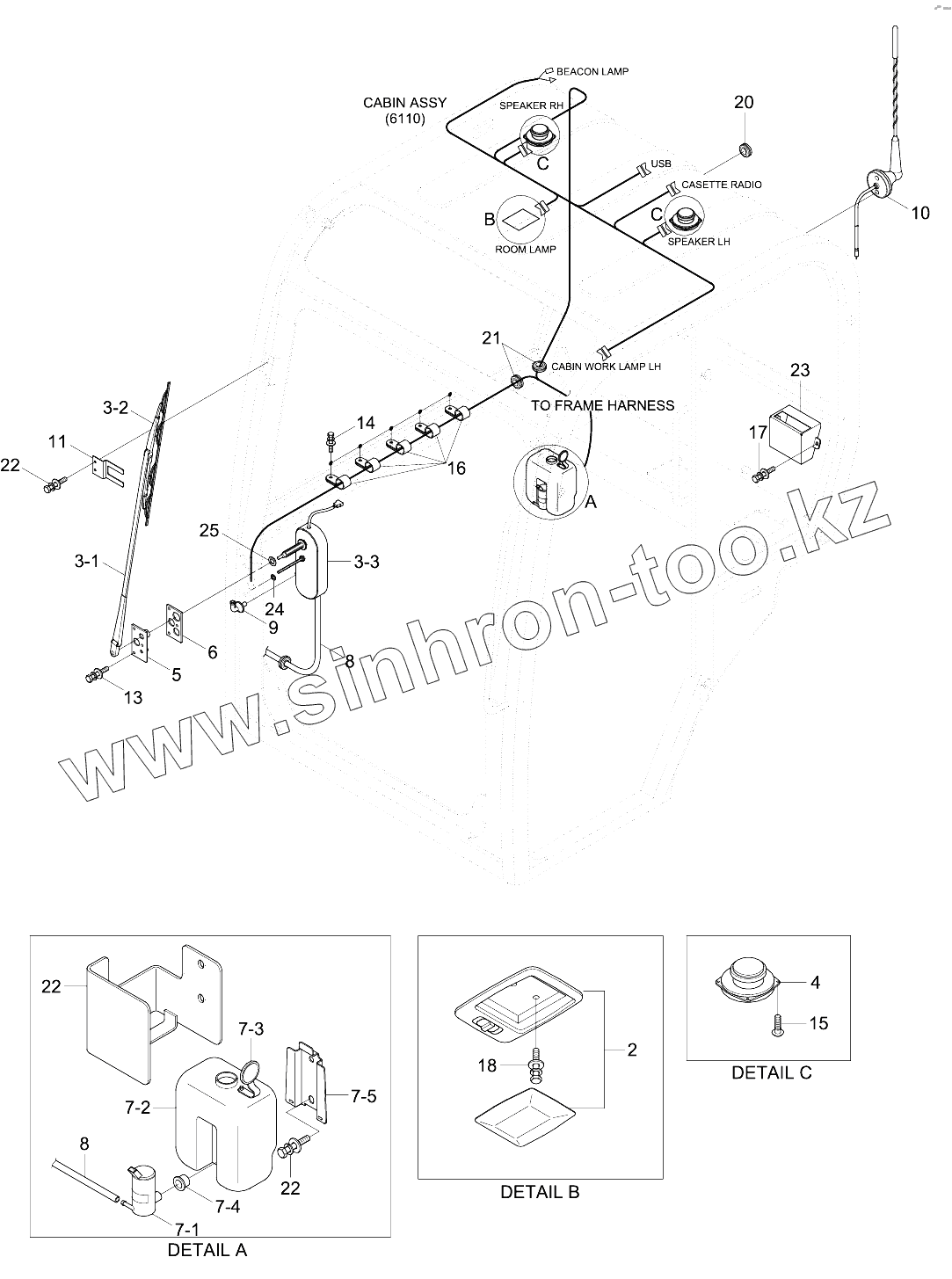

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 21MJ-02612 | Harness Cabin | |
| 1 | 21MJ-02611 | Harness Cabin | |
| 2 | 21M5-0304 | Lamp-Room | |
| 3 | 21M8-50100 | Wiper Motor Assy | |
| 4 | 21LB-20401 | Speaker Assy | |
| 5 | 21M8-01601 | Bracket | |
| 6 | 21M8-01620 | Pad-Rubber | |
| 7 | 21M9-23630 | Washer Tank Assy | |
| 7-1 | 21M8-00100 | Motor | |
| 7-2 | 21EL-00180 | Tank | |
| 7-3 | 21EL-00190 | Cap | |
| 7-4 | 21EL-00200 | Rubber-Push | |
| 7-5 | 24L3-30710 | PLATE | |
| 8 | 21EM-30581 | HOSE-RUBBER | |
| 9 | 24L3-41080 | Valve-Wiper | |
| 10 | 21N4-02840 | Antenna | |
| 11 | 21M8-01611 | Plate | |
| 13 | S035-062026 | BOLT-W/WASHER | |
| 14 | S035-061526 | BOLT-W/WASHER | |
| 15 | S151-050206 | Screw-Tapping | |
| 16 | S541-070002 | Clamp-Tube | |
| 17 | S037-101526 | BOLT-W/WASHER | |
| 18 | S035-051526 | BOLT-W/WASHER | |
| 19 | 21MK-00280 | Harness-Cab Work Lamp | |
| 20 | S661-150300 | Cap-Rubber | |
| 21 | S880-132020 | Grommet-Harness | |
| 22 | 71MJ-01870 | Plate | |
| 23 | 71MJ-01732 | Bracket-Radio | |
| 24 | S441-080006 | Washer-Hardened | |
| 25 | S403-161002 | Washer-Plain | |
| 26 | 21M8-50200 | Wiper Arm Assy | |
| 27 | 21M8-50300 | Wiper Blade-Rear | |
| 2-1 | S864-012210 | Bulb |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
