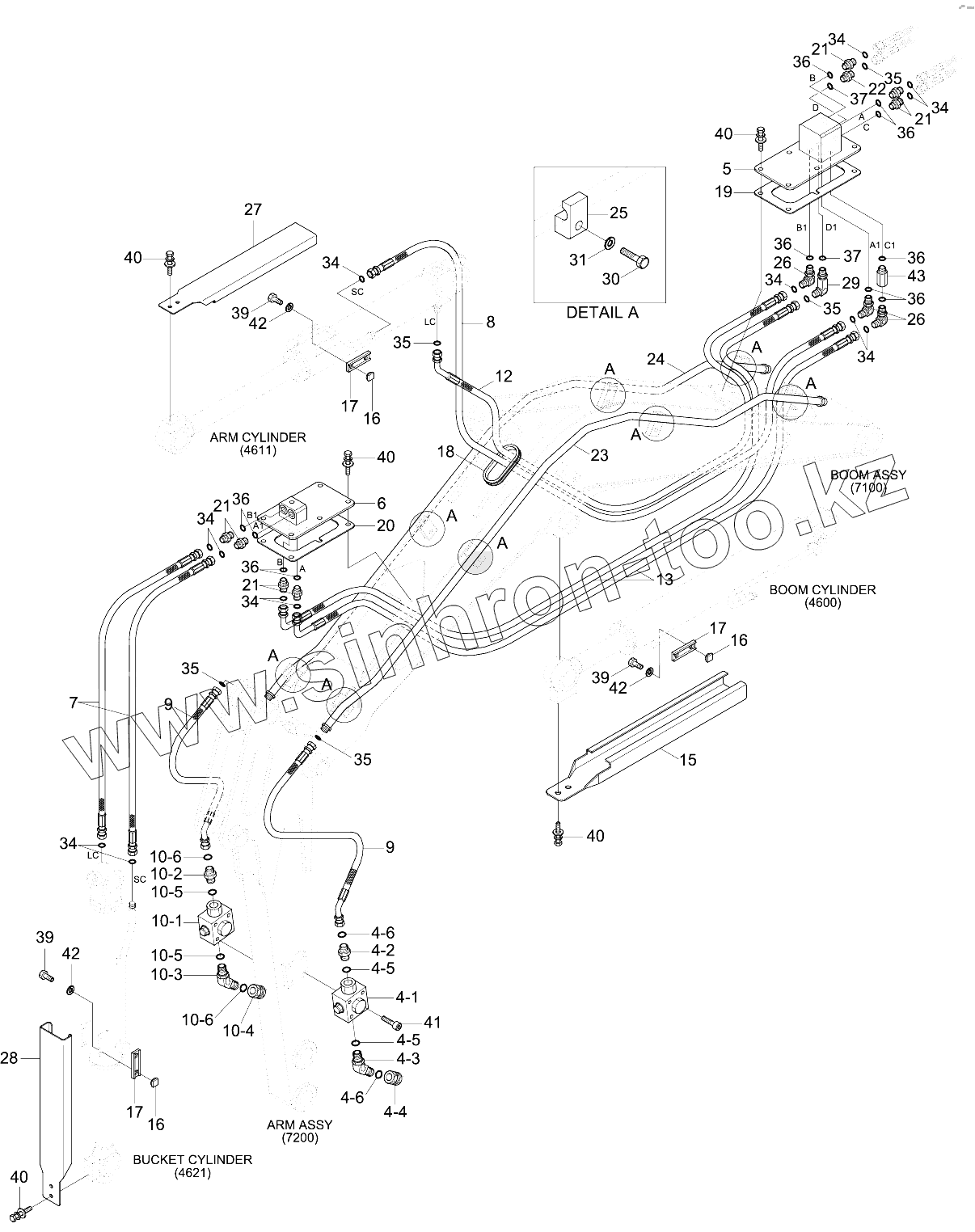

Каталог запасных частей к технике: Hyundai R16-9. ATTACH HYDRAULIC PIPING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
4
10-3
10-4
7
7
7
7
10
4
4-1
4-2
4-3
4-4
4-5
4-5
4-6
4-6
5
6
7
8
9
9
10
10-1
12
13
15
16
16
16
17
17
17
18
19
20
21
21
21
21
22
23
24
25
26
26
29
30
31
34
34
34
34
34
34
34
34
36
36
36
36
36
36
36
37
37
39
39
39
40
40
40
40
40
41
42
42
42
43
Позиция на иллюстрации Заводской номер детали Название детали
4 31MJ-50561 Stop Valve Assy
10-3 P030-110014 Elbow-45
10-4 P290-100103 Plug-Cap
7 P915-045013 Hose Assy-Hyd, Thd 0x0
7 P914-045013 Hose Assy-Orfs, Thd(0x0)
7 P925-065016 Hose Assy-Hyd, Thd 0x45
7 P924-065016 Hose Assy-Orfs, Thd(0x45)
10 31MJ-50571 Stop Valve Assy
4 31MJ-50560 Stop Valve Assy
4-1 31M9-50520 Body Assy
4-2 X500-110015 Connector-Orfs
4-3 X530-110014 Elbow-45, Orfs
4-4 X710-100103 CAP-HYD,ORFS
4-5 S621-012001 O-RING
4-6 S631-018004 O-RING
5 31MJ-50212 Terminal Assy
6 31MJ-50222 Terminal Assy
7 P913-045013 Hose Assy-Orfs 0x0
8 P910-045023 Hose Assy-Orfs 0x0
9 P923-065016 Hose Assy-Orfs 0x45
10 31MJ-50570 Stop Valve Assy
10-1 31M9-50530 Body Assy
12 P910-065022 Hose Assy-Orfs 0x0
13 P930-045028 Hose Assy-Orfs 0x90
15 31MJ-50320 Cover
16 31M6-65130 Collar
17 31M6-65140 Pad
18 31MJ-50360 Grommet
19 31MJ-50371 Gasket
20 31MJ-50381 Gasket
21 X500-110001 CONNECTOR-ORFS
22 X500-110002 CONNECTOR-ORFS
23 31MJ-50240 Pipe Assy-Lh
24 31MJ-50250 Pipe Assy-Rh
25 31MK-50410 Clamp-Pipe
26 X520-110001 ELBOW-90,ORFS
29 31N1-40130 ELBOW-90,LONG,ORFS
30 S017-100356 Bolt-Hex
31 S411-100006 WASHER-SPRING
34 S621-011001 O-RING
36 S631-011004 O-RING
37 S631-014004 O-RING
39 S015-080156 Bolt-Hex
40 S035-082026 BOLT-W/WASHER
41 S109-100406 BOLT-SOCKET
42 S411-080006 WASHER-SPRING
43 31MJ-20410 Adapter
