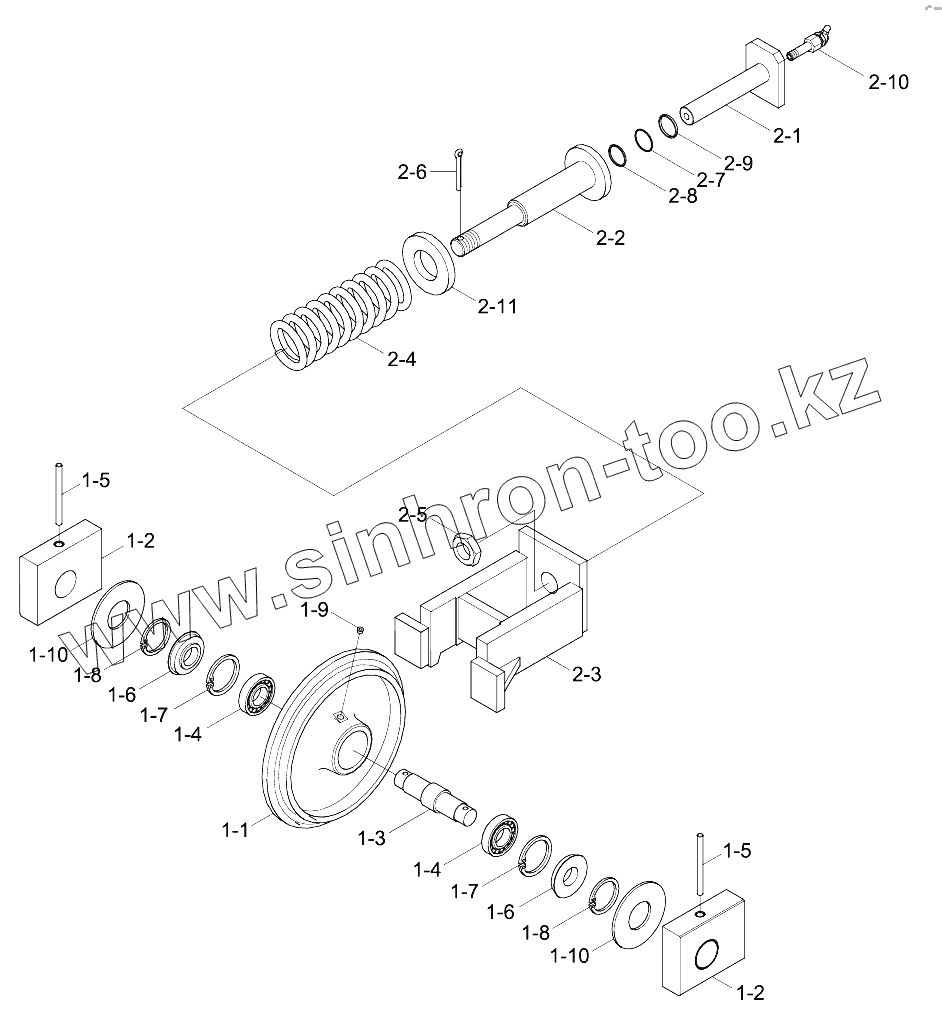

Каталог запасных частей к технике: Hyundai R16-9. ADJUST COMPONENT
81MJ-14140
81MJ-13140
81MJ-13200
81MJ-13210
81MJ-13190
81MJ-13420
81MJ-13420
81MJ-14210
81MJ-14100
81MJ-14131
81MJ-14120
81MJ-13180
81MJ-14280
81MJ-14180
81MJ-14190
81MJ-14200
81MJ-14240
81MJ-15012
81MJ-14211
81MJ-14300
81MJ-13120
81MJ-13101
81MJ-13300
81MJ-13310
81MJ-13320
81MJ-13380
81MJ-13340
81MJ-13400
81MJ-13410
81MJ-13390
81MJ-15011
81MJ-13100
81MJ-13130
81MJ-13130
81MJ-13110
1
1
1
2
2
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 81MJ-14140 | 81MJ-14140 | Nut-Castle | |
| 81MJ-13140 | 81MJ-13140 | Oil Seal | |
| 81MJ-13200 | 81MJ-13200 | Snap Ring | |
| 81MJ-13210 | 81MJ-13210 | Snap Ring | |
| 81MJ-13190 | 81MJ-13190 | Plug | |
| 81MJ-13420 | 81MJ-13420 | Plate | |
| 81MJ-14210 | 81MJ-14210 | Piston-Rod | |
| 81MJ-14100 | 81MJ-14100 | Cylinder | |
| 81MJ-14131 | 81MJ-14131 | Bracket | |
| 81MJ-14120 | 81MJ-14120 | Spring | |
| 81MJ-13180 | 81MJ-13180 | Pin | |
| 81MJ-14280 | 81MJ-14280 | Pin-Split | |
| 81MJ-14180 | 81MJ-14180 | O-Ring | |
| 81MJ-14190 | 81MJ-14190 | Ring-Backup | |
| 81MJ-14200 | 81MJ-14200 | Packing | |
| 81MJ-14240 | 81MJ-14240 | Valve Assy | |
| 81MJ-15012 | 81MJ-15012 | Adjust Component | |
| 81MJ-14211 | 81MJ-14211 | Piston-Rod | |
| 81MJ-14300 | 81MJ-14300 | Spacer | |
| 81MJ-13120 | 81MJ-13120 | Bearng-Ball | |
| 81MJ-13101 | 81MJ-13101 | Shell | |
| 81MJ-13300 | 81MJ-13300 | Shell | |
| 81MJ-13310 | 81MJ-13310 | Shaft | |
| 81MJ-13320 | 81MJ-13320 | Ball Bearng | |
| 81MJ-13380 | 81MJ-13380 | Pin | |
| 81MJ-13340 | 81MJ-13340 | Oil Seal | |
| 81MJ-13400 | 81MJ-13400 | Snap Ring | |
| 81MJ-13410 | 81MJ-13410 | Snap Ring | |
| 81MJ-13390 | 81MJ-13390 | Plug | |
| 81MJ-15011 | 81MJ-15011 | Adjust Component | |
| 81MJ-13100 | 81MJ-13100 | Shell | |
| 81MJ-13130 | 81MJ-13130 | Bracket | |
| 81MJ-13110 | 81MJ-13110 | Shaft | |
| 81MH-15030 | 81MH-15030 | Adjust Comp-Rh | |
| 1 | 81MJ-13010 | Idler Assy | |
| 1 | 81MJ-13030 | Idler Assy | |
| 1 | 81MJ-13011 | Idler Assy | |
| 2 | 81MJ-14012 | Tension Cylidner Assy | |
| 2 | 81MJ-14011 | Tension Cylidner Assy |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
