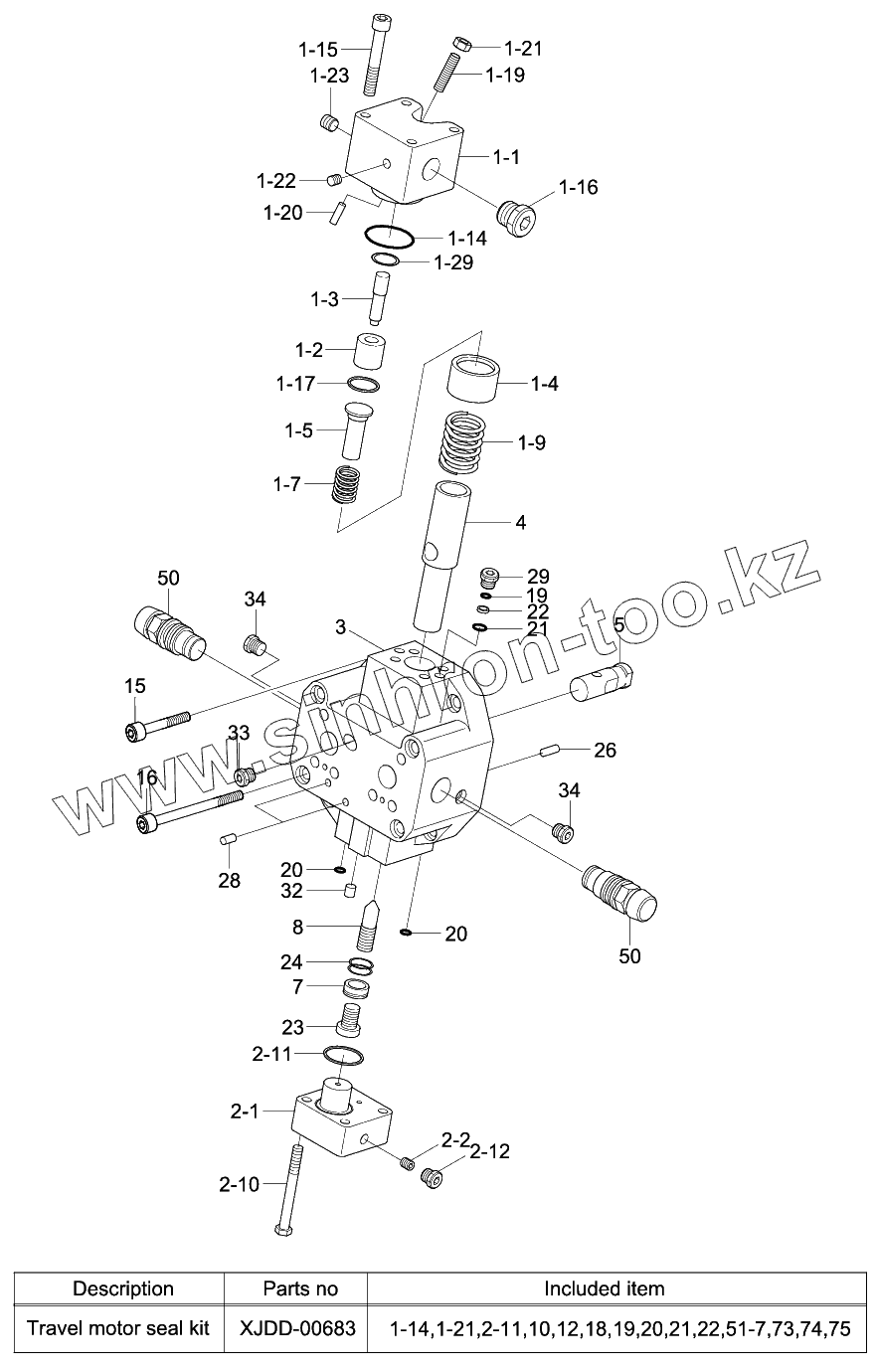

Каталог запасных частей к технике: Hyundai R140W-9S. TRAVEL MOTOR (2/2)

Тип техники

Марка

Модель

Схема

1

1-1

1-2

1-3

1-4

1-5

1-7

1-9

1-15

1-16

1-17

1-19

1-20

1-22

1-23

1-29

2

2-1

2-2

2-10

3

4

5

7

8

15

16

23

24

26

28

29

33

34

34

50

50

XJDD-00683

1-14

1-21

2-11

19

20

20

21

22

Позиция на иллюстрации	Заводской номер детали		Название детали
XJDD-00625	XJDD-00625		Control
1	XJDD-00383		Control Part
1-1	XJDD-00404		Housing-Control
1-2	XJDD-00593		Bushing-Control
1-3	XJDD-00594		Piston-Control
1-4	XJDD-00267		Bushing-Adjusting
1-5	XJDD-00268		Collar-Spring
1-7	XJDD-00269		Spring-Pressure
1-9	XJDD-00270		Spring-Pressure
1-15	XJDD-00412		Screw-Socket Head
1-16	XJDD-00174		Screw-Locking
1-17	XJDD-00273		Ring-Retaining
1-19	XJDD-00274		Pin-Threaded
1-20	XJDD-00275		Pin-Cylinder
1-22	XJDD-00277		Pin-D/Break Off
1-23	XJDD-00181		Pin-D/Break Off
1-29	XJDD-00278		Disc-Retaining
2	XJDD-00581		Cover
2-1	XJDD-00600		Cover
2-2	XJDD-00601		Screw-Throttle
2-10	XJDD-00602		Screw-Socket Head
3	XJDD-00507		Port Plate
4	XJDD-00248		Piston-Positioning
5	XJDD-00249		Trunnion
7	XJDD-00250		Piston
8	XJDD-00251		Pin-Threaded
15	XJDD-00255		Screw-Socket Head
16	XJDD-00256		Screw-Socket Head
23	XJDD-00260		Screw-Socket Head
24	XJDD-00261		Ring-Square
26	XJDD-00262		Pin-Cylinder
28	XJDD-00178		Pin-D/Break Off
29	XJDD-00621		Plug
33	XJDD-00175		Screw-Locking
34	XJDD-00210		Screw-Locking
50	XJDD-00622		Relief Valve
XJDD-00683	XJDD-00683		Seal Kit
1-14	XJDD-00271		O-Ring
1-21	XJDD-00276		Nut-Seal Lock
2-11	XJDD-00284		O-Ring
19	XJDD-00620		O-Ring
20	XJDD-00258		O-Ring
21	XJDD-00259		O-Ring
22	XJDD-00329		Ring-Back Up

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
