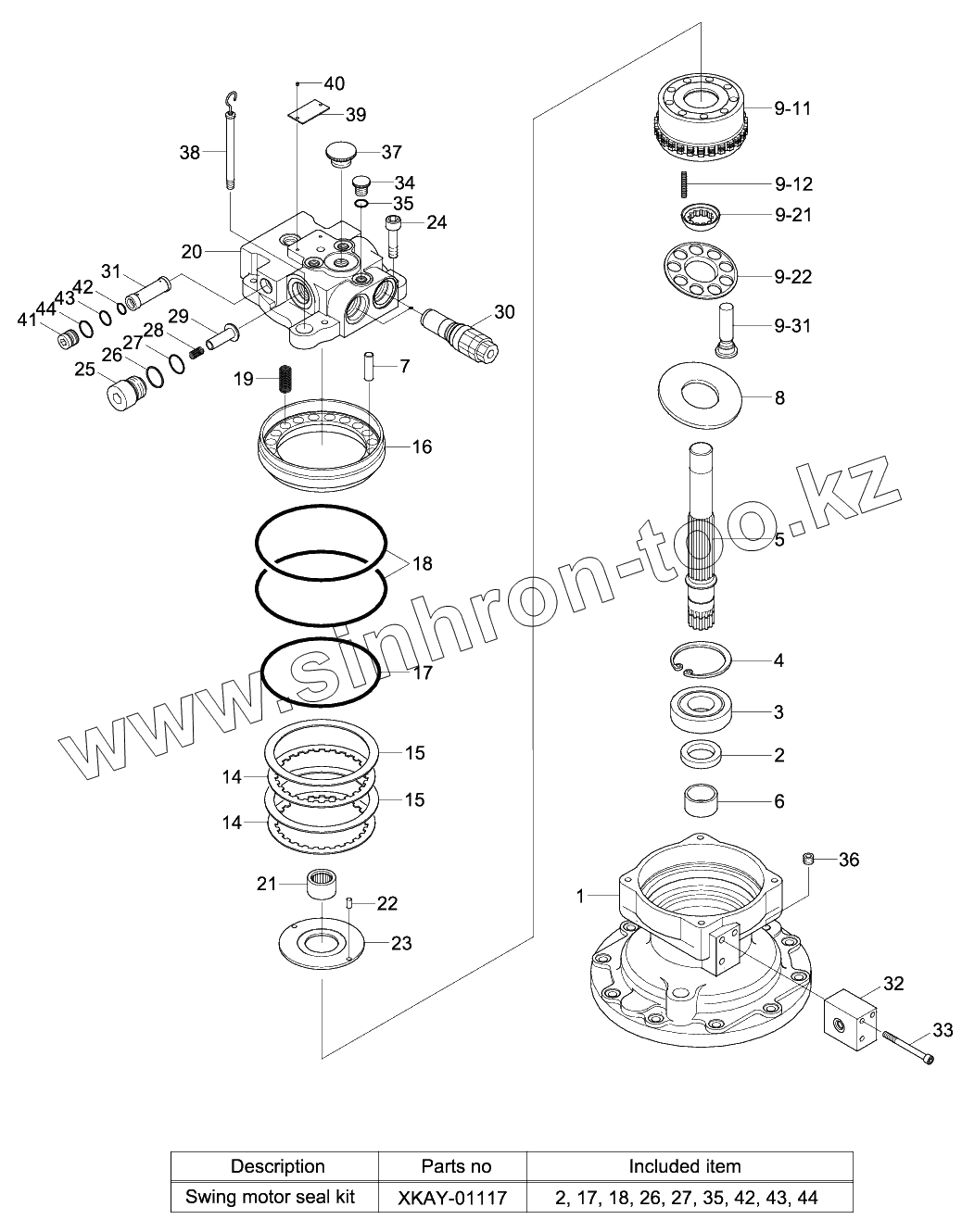

Каталог запасных частей к технике: Hyundai R140W-9S. SWING MOTOR
1
3
4
5
6
7
8
9
9-12
14
14
15
15
16
19
20
21
22
23
24
25
28
29
30
31
32
33
34
36
37
38
39
40
41
XKAY-01117
2
2
17
17
18
18
26
26
27
27
35
35
42
42
43
43
44
44
SwingMotorAssy
9-11
9-21
9-22
9-31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q4-11130 | 31Q4-11130 | Swing Motor Unit | |
| 1 | XKAY-01099 | Body | |
| 3 | XKAY-00282 | Bearing-Roller | |
| 4 | XKAY-00283 | Ring-Snap | |
| 5 | XKAY-01100 | Shaft | |
| 6 | XKAY-00285 | Bushing | |
| 7 | XKAY-00625 | Pin | |
| 8 | XKAY-01101 | Plate-Shoe | |
| 9 | XKAY-01102 | Rotary Kit | |
| 9-1 | XKAY-01103 | Block Kit-Cylinder | |
| 9-2 | XKAY-01105 | Retainer Kit | |
| 9-3 | XKAY-01107 | Piston Kit | |
| 9-12 | XKAY-00291 | Spring | |
| 14 | XKAY-01109 | Plate-Friction | |
| 15 | XKAY-01110 | Plate | |
| 16 | XKAY-01111 | Piston-Brake | |
| 19 | XKAY-01585 | Spring | |
| 20 | XKAY-01113 | Cover-Rear | |
| 21 | XKAY-00304 | Bearing-Needle | |
| 22 | XKAY-00562 | Pin | |
| 23 | XKAY-01114 | Plate-Valve | |
| 24 | XKAY-00308 | Bolt-Wrench | |
| 25 | XKAY-00309 | Plug | |
| 28 | XKAY-00311 | Spring | |
| 29 | XKAY-00312 | Check | |
| 30 | XKAY-01586 | Relief Valve Assy | |
| 31 | XKAY-00314 | Reactionless Vlv Assy | |
| 32 | XKAY-01470 | TIME DELAY VALVE ASSY | |
| 33 | XKAY-00149 | BOLT-WRENCH | |
| 34 | XKAY-00150 | PLUG | |
| 36 | XKAY-00140 | Plug | |
| 37 | XKAY-00317 | Plug | |
| 38 | XKAY-01115 | Gauge-Level | |
| 39 | XKAY-01116 | Name Plate | |
| 40 | XKAY-00277 | Rivet | |
| 41 | XKAY-00322 | Plug | |
| XKAY-01117 | XKAY-01117 | Seal Kit | |
| 2 | XKAY-00281 | Seal-Oil | |
| 17 | XKAY-00301 | O-Ring | |
| 18 | XKAY-01112 | O-Ring | |
| 26 | XKAY-00141 | Ring-Back Up | |
| 27 | XKAY-00310 | O-Ring | |
| 35 | XKAY-00256 | O-RING | |
| 42 | XKAY-00324 | O-Ring | |
| 43 | XKAY-00247 | O-RING | |
| 44 | XKAY-00605 | Ring-Back Up | |
| SwingMotorAssy | SwingMotorAssy | Swing Motor Assy | |
| 9-11 | XKAY-01104 | Block-Cylinder | |
| 9-21 | XKAY-01584 | Guide-Ball | |
| 9-22 | XKAY-01106 | Plate-Set | |
| 9-31 | XKAY-01108 | Piston Assy |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
