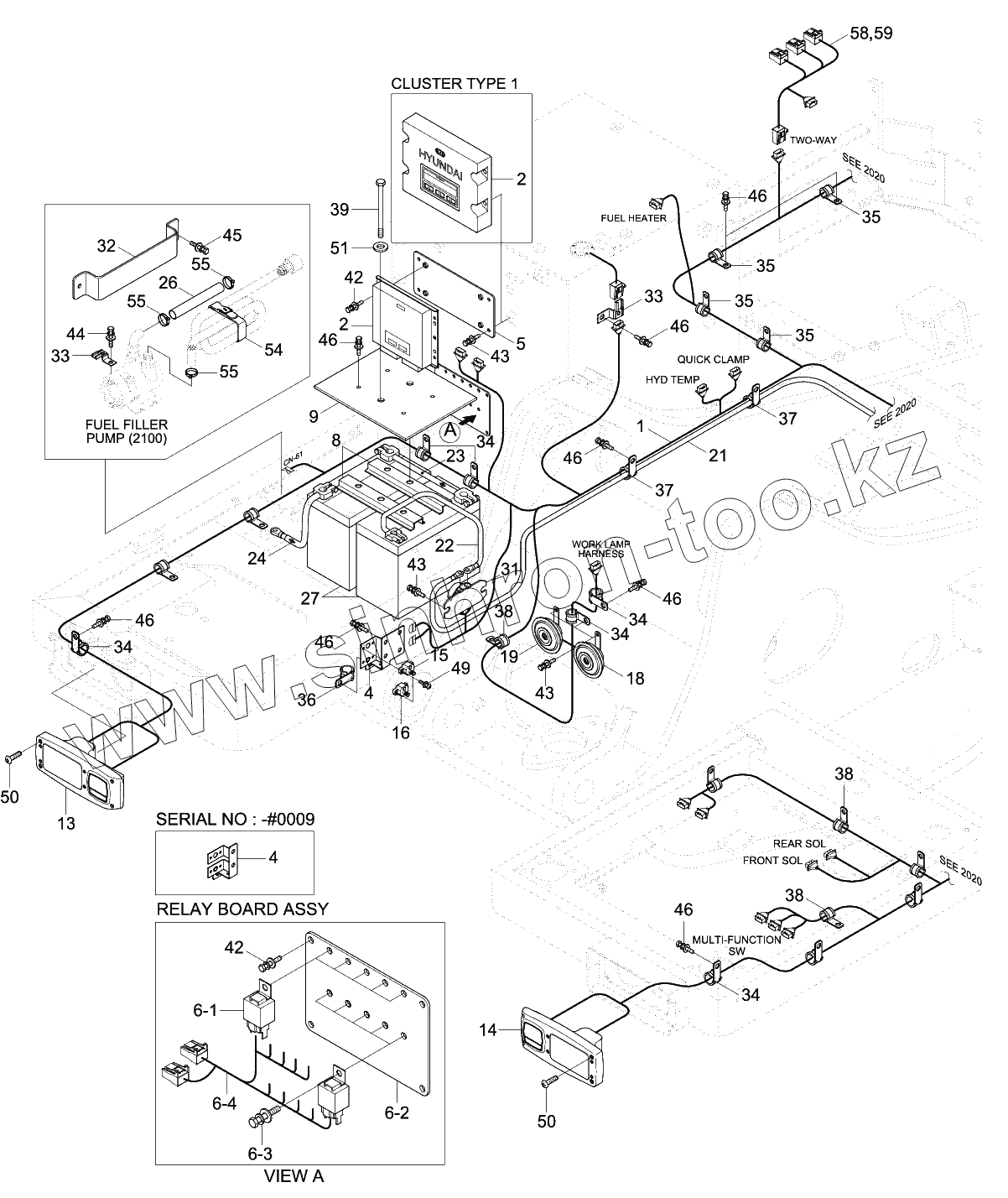

Каталог запасных частей к технике: Hyundai R140W-9S. RH ELECTRIC
1
2
6
6-1
6-4
1
2
2
4
4
5
6
6-1
6-2
6-3
6-4
8
9
13
14
15
16
18
19
21
22
23
24
26
27
31
32
33
33
34
34
34
34
34
35
35
35
35
36
37
37
38
38
38
39
42
42
43
43
43
44
45
46
46
46
46
46
46
46
46
49
50
50
51
54
55
55
55
58
59
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 21Q4-16300 | Harness-Frame | |
| 2 | 21Q4-32280 | Mcu | |
| 6 | 21Q6-20441 | Relay Board Assy | |
| 6-1 | 22FV-24110 | Relay | |
| 6-4 | 21Q6-11161 | Harness Relay Board | |
| 1 | 21Q4-17400 | Harness-Frame | |
| 2 | 21Q4-32210 | Mcu | |
| 4 | 21Q6-14101 | Plate | |
| 5 | 21Q6-16310 | Plate-Mcu | |
| 6 | 21Q6-20440 | Relay Board Assy | |
| 6-1 | 21E4-0011 | Relay Assy | |
| 6-2 | 21Q6-20430 | Relay Board Wa | |
| 6-3 | S132-061046 | Screw-W/Washer | |
| 6-4 | 21Q6-11160 | Harness-Relay Board | |
| 8 | 21Q4-60400 | Bar-Battery | |
| 9 | 21Q4-60300 | Cover-Battery | |
| 13 | 21Q4-10360 | Lamp-Head&Position,Rh | |
| 13-1 | 21Q4-16210 | Head Lamp Unit | |
| 13-2 | 21Q4-16230 | Case-Head Lamp | |
| 13-3 | 21Q4-16220 | Lamp-Flasher Position | |
| 14 | 21Q4-10350 | Lamp-Head&Position,Lh | |
| 15 | 21Q4-01161 | CIRCUIT-BREAKER,30A | |
| 16 | 21M9-01171 | Circuit-Breaker | |
| 18 | 21N5-10061 | HORN-HIGH | |
| 19 | 21N5-10051 | HORN-LOW | |
| 21 | 21E2-60031 | Cable | |
| 22 | 21EA-60490 | Cable | |
| 23 | 21N4-01400 | Cable | |
| 24 | 21EA-60620 | Cable | |
| 26 | 21N4-20550 | Hose-Outlet | |
| 27 | 21E6-20270 | Battery | |
| 31 | 21QA-70010 | RELAY-BATTERY | |
| 32 | 21QB-20080 | PLATE-CLAMP | |
| 33 | 25D1-10640 | CLIP ASSY | |
| 34 | 31L7-10190 | CLAMP-TUBE | |
| 35 | 31L7-10200 | CLAMP-TUBE | |
| 36 | 31L7-10210 | CLAMP-TUBE INS | |
| 37 | 31L7-10230 | CLAMP | |
| 38 | 31L7-10340 | CLAMP-TUBE INS | |
| 39 | S017-102506 | Bolt-Hex | |
| 42 | S035-082026 | BOLT-W/WASHER | |
| 43 | S035-082526 | BOLT-W/WASHER | |
| 44 | S035-083026 | BOLT-W/WASHER | |
| 45 | S035-102026 | Bolt-W/Washer | |
| 46 | S037-102026 | BOLT-W/WASHER | |
| 49 | S141-040206 | Screw-Flat Hd | |
| 50 | S141-050306 | Screw-Flat Hd | |
| 51 | S403-10200B | WASHER-PLAIN | |
| 54 | E127-3158 | BAND-FUEL PUMP | |
| 55 | S520-032000 | CLAMP-HOSE | |
| 58 | 21Q8-11110 | HARNESS-TWO WAY | |
| 59 | 21Q8-11130 | HARNESS-BREAKER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
