FRONT AXLE JOINT HOUSING(#0146-)

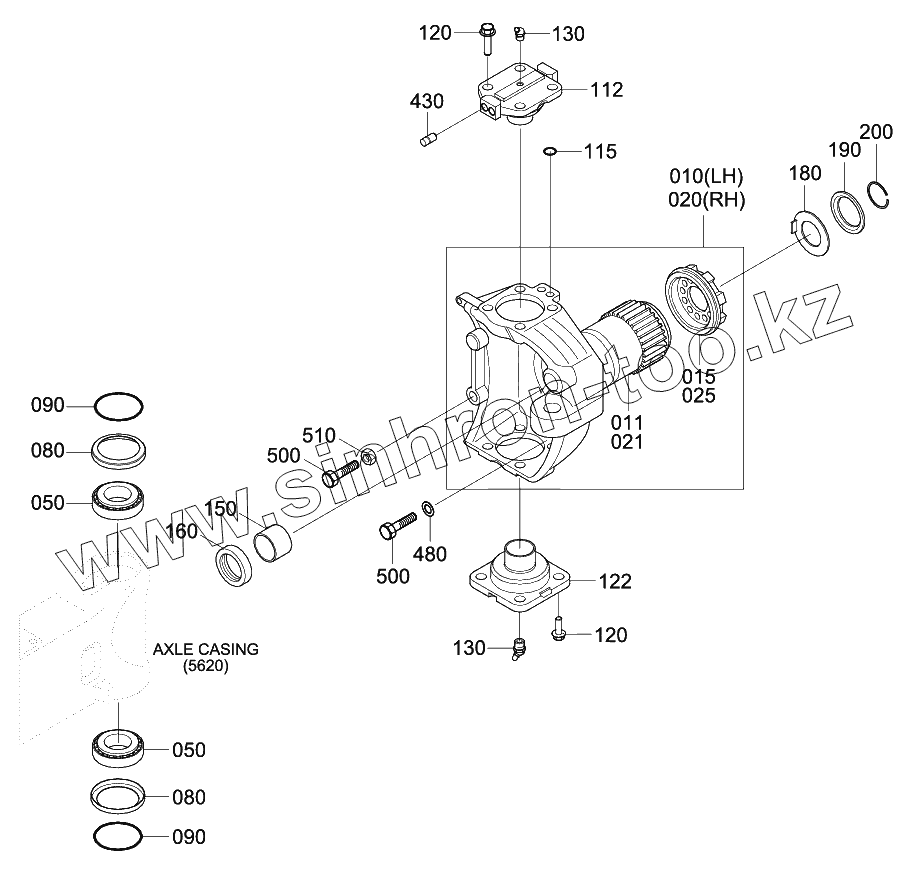

Каталог запасных частей к технике: Hyundai R140W-9S. FRONT AXLE JOINT HOUSING(#0146-)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
R140W-9 (2013)
R140W-9S (2013)
R16-9 (2013)
R170W-7 (2013)
R170W-9 (2013)
R170W-9S (2013)
R180LC-9 (2013)
R180LC-9S (2013)
R180W-9S (2013)
R210LC-9 (2013)
R210NLC-9 (2013)
R210W-9 (2013)
R330LC-9A (2013)
R330LC-9S (2013)
R330LC-9SH (2013)
Схема
>
Не выбрано
ENGINE MOUNTING
ENGINE CONTROL SYSTEM
AIR INTAKE SYSTEM
EXHAUST SYSTEM
COOLING SYSTEM
RADIATOR ASSY
FUEL SYSTEM
FUEL TANK
AIRCON & HEATER GROUP
AIR CONDITIONER BOTTOM SUB
AIRCON & HEATER UNIT
AIR CONDITIONER UNIT (SEMI AUTO)
HEATER UNIT (SEMI AUTO)
PRE HEATING GROUP
RH ELECTRIC
LH ELECTRIC
BOOM ELECTRIC
ENGINE ELECTRIC
ELECTRIC BOX
CAB ELECTRIC 1
CAB ELECTRIC 2
CABIN ROOM ELECTRIC
CLUSTER (TYPE 1)
CLUSTER (TYPE 2)
BOTTOM ELECTRIC
FUEL FILLER PUMP
FUSE BOX
AIR COMPRESSOR ELECTRIC
PUMP MOUNTING
HYDRAULIC TANK
UPPER HYD PIPING (BASE)
UPPER HYD PIPING (ATTACH)
UPPER HYD PIPING (TRAVEL)
PILOT HYD PIPING (CONTROL 1)
PILOT HYD PIPING (CONTROL 2)
PILOT HYD PIPING (BOTTOM 1)
PILOT HYD PIPING (BOTTOM 2)
PILOT HYD PIPING (BASE 1, CLUSTER TYPE 1)
PILOT HYD PIPING (BASE 2, CLUSTER TYPE 1)
PILOT HYD PIPING (BASE 3, CLUSTER TYPE 1)
PILOT HYD PIPING (BASE 1, CLUSTER TYPE 2)
PILOT HYD PIPING (BASE 2, CLUSTER TYPE 2)
PILOT HYD PIPING (BASE 3, CLUSTER TYPE 2)
PILOT HYD PIPING (4 OUTRIGGER)
POWER TRAIN HYD PIPING 1
POWER TRAIN HYD PIPING 2
POWER TRAIN HYD PIPING 3
LOWER HYD PIPING 1
LOWER HYD PIPING 2
LOWER HYD PIPING(REAR BLADE, -#0014)
LOWER HYD PIPING(REAR BLADE, #0015-)
LOWER HYD PIPING(FRONT BLADE, -#0014)
LOWER HYD PIPING(FRONT BLADE, #0015-)
LOWER HYD PIPING (2 OUTRIGGER, -#0014)
LOWER HYD PIPING(2 OUTRIGGER, #0015-)
LOWER HYD PIPING 1(F/OUT, R/BLD, -#0014)
LOWER HYD PIPING 1(F/OUT, R/BLD, #0015-)
LOWER HYD PIPING 2(F/OUT, R/BLD,-#0014)
LOWER HYD PIPING 2(F/OUT, R/BLD, #0015-)
LOWER HYD PIPING 1(4 OUTRIGGER, -#0014)
LOWER HYD PIPING 1(4 OUTRIGGER, #0015-)
LOWER HYD PIPING 2(4 OUTRIGGER, -#0014)
LOWER HYD PIPING 2(4 OUTRIGGER, #0015-)
LOWER HYD PIPING 1(F/BLD, R/OUT, -#0014)
LOWER HYD PIPING 1(F/BLD, R/OUT, #0015-)
LOWER HYD PIPING 2(F/BLD, R/OUT, -#0014)
LOWER HYD PIPING 2(F/BLD, R/OUT, #0015-)
LOWER HYD PIPING 1(F/BLD, R/BLD, -#0014)
LOWER HYD PIPING 1(F/BLD, R/BLD, #0015-)
LOWER HYD PIPING 2(F/BLD, R/BLD, -#0014)
LOWER HYD PIPING 2(F/BLD, R/BLD, #0015)
BOOM HYD PIPING (4.6M, STD)
BOOM HYD PIPING (4.1M, OPT)
BOOM HYD PIPING(ADJUST BOOM)
BOOM GREASE LUB SYSTEM (4.6M, STD)
BOOM GREASE LUB SYSTEM (4.1M, OPT)
BOOM GREASE LUB SYSTEM(ADJUST BOOM)
BOOM SAFETY LOCK SYSTEM
QUICK CLAMP HYD PIPING
ARM HYD PIPING
ARM HYD PIPING (3.0M)
ARM SAFETY LOCK SYSTEM
ATTACH PIPING KIT (S & D/ACTING)
S/ACTING MAIN PIP KIT (CLUSTER TYPE 1)
S/ACTING MAIN PIP KIT (CLUSTER TYPE 2)
D/ACTING MAIN PIP KIT 1 (CLUSTER TYPE 1)
D/ACTING MAIN PIP KIT 2 (CLUSTER TYPE 1)
D/ACTING MAIN PIP KIT (CLUSTER TYPE 2)
SINGLE PEDAL (DOUBLE ACTING)
MAIN PUMP
REGULATOR
GEAR PUMP
MAIN CONTROL VALVE (1/4)
MAIN CONTROL VALVE (2/4)
MAIN CONTROL VALVE (3/4)
MAIN CONTROL VALVE (4/4)
SWING MOTOR
SWING REDUCTION GEAR
REMOTE CONTROL LEVER
DOZER CONTROL LEVER
ACCELERATOR PEDAL (STD)
ACCELERATOR PEDAL (2 WAY, OPTION)
TRAVEL MOTOR (1/2)
TRAVEL MOTOR (2/2)
COUNTER BALANCE VALVE
TURNING JOINT
TURNING JOINT SUB
BOOM CYLINDER
ARM CYLINDER
BUCKET CYLINDER
DOZER BLADE CYLINDER (REAR)
DOZER BLADE CYLINDER (FRONT)
OUTRIGGER CYLINDER
SOLENOID VALVE
SOLENOID VALVE(CLUSTER TYPE1)
TRAVEL CONTROL VALVE
BRAKE SUPPLY VALVE
BRAKE VALVE
QUICK CLAMP (HOOK TYPE 1)
QUICK CLAMP (CLOSED TYPE 1)
QUICK CLAMP CYLINDER
QUICK CLAMP (HOOK TYPE 2)
QUICK CLAMP (CLOSED TYPE 2)
BREAKER ASSY(1/2)
BREAKER ASSY(2/2)
POWER TRAIN MOUNTING
PROPELLER SHAFT
OSCILLATING CYLINDER
TRANSMISSION INPUT HOUSING
TRANSMISSION HOUSING
TRANSMISSION MULTI-DISC BRAKE
TRANSMISSION COUPLING
TRANSMISSION PLANETARY DRIVE
TRANSMISSION OUTPUT GROUP
TRANSMISSION GEAR SHIFT SENSOR
TRANSMISSION OIL PIPE
FRONT AXLE INPUT GROUP
FRONT AXLE DIFFERENTIAL
FRONT AXLE CASING
FRONT AXLE JOINT HOUSING
FRONT AXLE OUTPUT GROUP
FRONT AXLE STEERING GEAR
FRONT AXLE UNIVERSAL JOINT
REAR AXLE INPUT GROUP
REAR AXLE DIFFERENTIAL
REAR AXLE CASING
REAR AXLE HUB CARRIER
REAR AXLE OUTPUT GROUP
FRONT AXLE DIFFERENTIAL(#0146-)
REAR AXLE CASING(-#0145)
FRONT AXLE JOINT HOUSING(#0146-)
FRONT AXLE OUTPUT GROUP(#0146-)
FRONT AXLE STEERING GEAR(#0146-)
FRONT AXLE UNIVERSAL JOINT(#0146-)
REAR AXLE INPUT GROUP(#0146-)
REAR AXLE DIFFERENTIAL(#0146-)
REAR AXLE CASING(#0146-)
REAR AXLE HUB CARRIER(#0146-)
REAR AXLE OUTPUT GROUP(#0146-)
CAB MOUNTING
CAB ASSY (1/4)
CAB ASSY (2/4)
CAB ASSY (3/4)
CAB ASSY (4/4, DOOR)
CAB INTERIOR 1
CAB INTERIOR 2
CAB INTERIOR 3
CONSOLE BOX 1 (LH)
CONSOLE BOX 2 (LH)
CONSOLE BOX 3 (RH)
SEAT BASE ASSY
SEAT (STD)
SEAT (SUSPENSION, HEATED)
STORAGE BOX ASSY
BOTTOM PLATE MOUNTING
STEERING COLUMN (CLUSTER TYPE 1)
STEERING COLUMN (CLUSTER TYPE 2)
COWLING 1
COWLING 2
SIDE COWL ASSY (LH)
SIDE COVER ASSY (LH)
SIDE COWL ASSY (RH)
ENGINE HOOD
UNDER COVER
TOOL BOX MOUNTING
TOOL BOX
GROMMET GROUP
UPPER FRAME & COUNTERWEIGHT
LOWER FRAME & FENDER
SWING RING GREASE LUB SYSTEM
DOZER BLADE-REAR
DOZER BLADE-FRONT
OUTRIGGER MOUNTING-FRONT
OUTRIGGER MOUNTING-REAR
BOOM MOUNTING (4.6M, STD)
BOOM (4.6M, STD)
BOOM(ADJUST BOOM)
ARM
BUCKET CONTROL GROUP
BUCKET CONTROL GROUP (QUICK CLAMP)
BUCKET (5 TEETH)
BUCKET (3 TEETH)
BUCKET (4 TEETH)
BUCKET (DITCH CLEANING)
BUCKET (SLOPE FINISHING)
FRONT DRIVE ADAPTER
AIR INTAKE HEATER
DATAPLATE
ROCKER LEVERS
VALVE TAPPET
FRONT GEAR COVER
CYLINDER BLOCK
CRANKSHAFT & M/BEARINGS
CAM FOLLOWER COVER
FRONT GEAR TRAIN ACCESSORY
FAN PILOT SPACER
THERMOSTAT & HOUSING
ALTERNATOR LOCATION
ALTERNATOR DRIVE
MECHANICAL TACHOMETER DRIVE
FAN DRIVE
INJECTION PUMP 1
INJECTION PUMP 2
FUEL CLEANER
FLYWHEEL HOUSING
AIR INTAKE MANIFOLD
INJECTOR PLUMBLING
AIR INTAKE CONNECTION
EXHAUST CONNECTION
OIL PAN MOUNT
FLYWHEEL
LIFTING BRACKET
LUBRICATING OIL COOLER
OIL LEVEL GAUGE
LUBRICATING OIL PUMP
OIL FUEL CONTROL
OIL PAN
CONNECTING ROD & PISTON
CAMSHAFT
FUEL INJECTOR
CYLINDER HEAD
STARTING MOTOR
VALVE COVER
LIFT PUMP
TURBOCHARGER
FLUID LEVEL SENSOR
ENGINE OIL DRAIN VALVE
TURBOCHARGER PLUMBING
WATER PUMP
WATER INLET CONNECTION
FUEL DRAIN LOCATION
FUEL SHUTOFF VALVE
STARTER MOUNTING
NOISE PANEL
FUEL FILTER PLUMBING
EXHAUST MANIFOLD
CAM FOLLOWER COVER MOUNTING
TOOLS
HCE-DT KIT
DECALS
MANUALS
10
11
15
20
21
25
50
50
80
80
90
90
112
115
120
120
122
130
130
150
160
180
190
200
430
480
480
480
480
480
480
480
480
480
480
480
480
480
480
480
480
480
480
480
480
480
480
480
480
480
500
500
510
Позиция на иллюстрации
Заводской номер детали
Название детали
10
ZGAQ-02898
Joint Housing-Lh
11
ZGAQ-04048
Joint Housing-Lh
15
ZGAQ-02899
Nut-Sloted
20
ZGAQ-02900
Joint Housing-Rh
21
ZGAQ-04049
Joint Housing-Rh
25
ZGAQ-02899
Nut-Sloted
50
ZGAQ-02901
Bearing-Roller
80
ZGAQ-02902
Cap-Sealing
90
ZGAQ-04050
O-Ring
112
ZGAQ-02904
Pin-Bearing
115
ZGAQ-01254
O-Ring
120
ZGAQ-02905
Screw-Locking
122
ZGAQ-02906
Pin-Bearing
130
ZGAQ-02261
Nipple-Lubric
150
ZGAQ-02891
Bushing
160
ZGAQ-02892
Seal-Shaft
180
ZGAQ-02907
Washer-Thrust
190
ZGAQ-02908
Washer-Thrust
200
ZGAQ-02909
Ring-Retainer
430
ZGAQ-02200
Valve-Vent
480
ZGAQ-04066
Washer-Stop
480
ZGAQ-04065
Washer-Stop
480
ZGAQ-04064
Washer-Stop
480
ZGAQ-04054
Washer-Stop
480
ZGAQ-04063
Washer-Stop
480
ZGAQ-02280
Washer-Stop
480
ZGAQ-04062
Washer-Stop
480
ZGAQ-02279
Washer-Stop
480
ZGAQ-04061
Washer-Stop
480
ZGAQ-02278
Washer-Stop
480
ZGAQ-04060
Washer-Stop
480
ZGAQ-02277
Washer-Stop
480
ZGAQ-04059
Washer-Stop
480
ZGAQ-02276
Washer-Stop
480
ZGAQ-04058
Washer-Stop
480
ZGAQ-02275
Washer-Stop
480
ZGAQ-04057
Washer-Stop
480
ZGAQ-02274
Washer-Stop
480
ZGAQ-04056
Washer-Stop
480
ZGAQ-04055
Washer-Stop
480
ZGAQ-02267
Washer-Stop
480
ZGAQ-02266
Washer-Stop
480
ZGAQ-04053
Washer-Stop
480
ZGAQ-04052
Washer-Stop
480
ZGAQ-04051
Washer-Stop
500
ZGAQ-02362
Screw-Stop
510
ZGAQ-02910
Nut-Hex
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
