Каталог запасных частей к технике: Hyundai R140W-9S. FLYWHEEL

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано R140W-9 (2013) R140W-9S (2013) R16-9 (2013) R170W-7 (2013) R170W-9 (2013) R170W-9S (2013) R180LC-9 (2013) R180LC-9S (2013) R180W-9S (2013) R210LC-9 (2013) R210NLC-9 (2013) R210W-9 (2013) R330LC-9A (2013) R330LC-9S (2013) R330LC-9SH (2013)

Схема > Не выбрано ENGINE MOUNTING ENGINE CONTROL SYSTEM AIR INTAKE SYSTEM EXHAUST SYSTEM COOLING SYSTEM RADIATOR ASSY FUEL SYSTEM FUEL TANK AIRCON & HEATER GROUP AIR CONDITIONER BOTTOM SUB AIRCON & HEATER UNIT AIR CONDITIONER UNIT (SEMI AUTO) HEATER UNIT (SEMI AUTO) PRE HEATING GROUP RH ELECTRIC LH ELECTRIC BOOM ELECTRIC ENGINE ELECTRIC ELECTRIC BOX CAB ELECTRIC 1 CAB ELECTRIC 2 CABIN ROOM ELECTRIC CLUSTER (TYPE 1) CLUSTER (TYPE 2) BOTTOM ELECTRIC FUEL FILLER PUMP FUSE BOX AIR COMPRESSOR ELECTRIC PUMP MOUNTING HYDRAULIC TANK UPPER HYD PIPING (BASE) UPPER HYD PIPING (ATTACH) UPPER HYD PIPING (TRAVEL) PILOT HYD PIPING (CONTROL 1) PILOT HYD PIPING (CONTROL 2) PILOT HYD PIPING (BOTTOM 1) PILOT HYD PIPING (BOTTOM 2) PILOT HYD PIPING (BASE 1, CLUSTER TYPE 1) PILOT HYD PIPING (BASE 2, CLUSTER TYPE 1) PILOT HYD PIPING (BASE 3, CLUSTER TYPE 1) PILOT HYD PIPING (BASE 1, CLUSTER TYPE 2) PILOT HYD PIPING (BASE 2, CLUSTER TYPE 2) PILOT HYD PIPING (BASE 3, CLUSTER TYPE 2) PILOT HYD PIPING (4 OUTRIGGER) POWER TRAIN HYD PIPING 1 POWER TRAIN HYD PIPING 2 POWER TRAIN HYD PIPING 3 LOWER HYD PIPING 1 LOWER HYD PIPING 2 LOWER HYD PIPING(REAR BLADE, -#0014) LOWER HYD PIPING(REAR BLADE, #0015-) LOWER HYD PIPING(FRONT BLADE, -#0014) LOWER HYD PIPING(FRONT BLADE, #0015-) LOWER HYD PIPING (2 OUTRIGGER, -#0014) LOWER HYD PIPING(2 OUTRIGGER, #0015-) LOWER HYD PIPING 1(F/OUT, R/BLD, -#0014) LOWER HYD PIPING 1(F/OUT, R/BLD, #0015-) LOWER HYD PIPING 2(F/OUT, R/BLD,-#0014) LOWER HYD PIPING 2(F/OUT, R/BLD, #0015-) LOWER HYD PIPING 1(4 OUTRIGGER, -#0014) LOWER HYD PIPING 1(4 OUTRIGGER, #0015-) LOWER HYD PIPING 2(4 OUTRIGGER, -#0014) LOWER HYD PIPING 2(4 OUTRIGGER, #0015-) LOWER HYD PIPING 1(F/BLD, R/OUT, -#0014) LOWER HYD PIPING 1(F/BLD, R/OUT, #0015-) LOWER HYD PIPING 2(F/BLD, R/OUT, -#0014) LOWER HYD PIPING 2(F/BLD, R/OUT, #0015-) LOWER HYD PIPING 1(F/BLD, R/BLD, -#0014) LOWER HYD PIPING 1(F/BLD, R/BLD, #0015-) LOWER HYD PIPING 2(F/BLD, R/BLD, -#0014) LOWER HYD PIPING 2(F/BLD, R/BLD, #0015) BOOM HYD PIPING (4.6M, STD) BOOM HYD PIPING (4.1M, OPT) BOOM HYD PIPING(ADJUST BOOM) BOOM GREASE LUB SYSTEM (4.6M, STD) BOOM GREASE LUB SYSTEM (4.1M, OPT) BOOM GREASE LUB SYSTEM(ADJUST BOOM) BOOM SAFETY LOCK SYSTEM QUICK CLAMP HYD PIPING ARM HYD PIPING ARM HYD PIPING (3.0M) ARM SAFETY LOCK SYSTEM ATTACH PIPING KIT (S & D/ACTING) S/ACTING MAIN PIP KIT (CLUSTER TYPE 1) S/ACTING MAIN PIP KIT (CLUSTER TYPE 2) D/ACTING MAIN PIP KIT 1 (CLUSTER TYPE 1) D/ACTING MAIN PIP KIT 2 (CLUSTER TYPE 1) D/ACTING MAIN PIP KIT (CLUSTER TYPE 2) SINGLE PEDAL (DOUBLE ACTING) MAIN PUMP REGULATOR GEAR PUMP MAIN CONTROL VALVE (1/4) MAIN CONTROL VALVE (2/4) MAIN CONTROL VALVE (3/4) MAIN CONTROL VALVE (4/4) SWING MOTOR SWING REDUCTION GEAR REMOTE CONTROL LEVER DOZER CONTROL LEVER ACCELERATOR PEDAL (STD) ACCELERATOR PEDAL (2 WAY, OPTION) TRAVEL MOTOR (1/2) TRAVEL MOTOR (2/2) COUNTER BALANCE VALVE TURNING JOINT TURNING JOINT SUB BOOM CYLINDER ARM CYLINDER BUCKET CYLINDER DOZER BLADE CYLINDER (REAR) DOZER BLADE CYLINDER (FRONT) OUTRIGGER CYLINDER SOLENOID VALVE SOLENOID VALVE(CLUSTER TYPE1) TRAVEL CONTROL VALVE BRAKE SUPPLY VALVE BRAKE VALVE QUICK CLAMP (HOOK TYPE 1) QUICK CLAMP (CLOSED TYPE 1) QUICK CLAMP CYLINDER QUICK CLAMP (HOOK TYPE 2) QUICK CLAMP (CLOSED TYPE 2) BREAKER ASSY(1/2) BREAKER ASSY(2/2) POWER TRAIN MOUNTING PROPELLER SHAFT OSCILLATING CYLINDER TRANSMISSION INPUT HOUSING TRANSMISSION HOUSING TRANSMISSION MULTI-DISC BRAKE TRANSMISSION COUPLING TRANSMISSION PLANETARY DRIVE TRANSMISSION OUTPUT GROUP TRANSMISSION GEAR SHIFT SENSOR TRANSMISSION OIL PIPE FRONT AXLE INPUT GROUP FRONT AXLE DIFFERENTIAL FRONT AXLE CASING FRONT AXLE JOINT HOUSING FRONT AXLE OUTPUT GROUP FRONT AXLE STEERING GEAR FRONT AXLE UNIVERSAL JOINT REAR AXLE INPUT GROUP REAR AXLE DIFFERENTIAL REAR AXLE CASING REAR AXLE HUB CARRIER REAR AXLE OUTPUT GROUP FRONT AXLE DIFFERENTIAL(#0146-) REAR AXLE CASING(-#0145) FRONT AXLE JOINT HOUSING(#0146-) FRONT AXLE OUTPUT GROUP(#0146-) FRONT AXLE STEERING GEAR(#0146-) FRONT AXLE UNIVERSAL JOINT(#0146-) REAR AXLE INPUT GROUP(#0146-) REAR AXLE DIFFERENTIAL(#0146-) REAR AXLE CASING(#0146-) REAR AXLE HUB CARRIER(#0146-) REAR AXLE OUTPUT GROUP(#0146-) CAB MOUNTING CAB ASSY (1/4) CAB ASSY (2/4) CAB ASSY (3/4) CAB ASSY (4/4, DOOR) CAB INTERIOR 1 CAB INTERIOR 2 CAB INTERIOR 3 CONSOLE BOX 1 (LH) CONSOLE BOX 2 (LH) CONSOLE BOX 3 (RH) SEAT BASE ASSY SEAT (STD) SEAT (SUSPENSION, HEATED) STORAGE BOX ASSY BOTTOM PLATE MOUNTING STEERING COLUMN (CLUSTER TYPE 1) STEERING COLUMN (CLUSTER TYPE 2) COWLING 1 COWLING 2 SIDE COWL ASSY (LH) SIDE COVER ASSY (LH) SIDE COWL ASSY (RH) ENGINE HOOD UNDER COVER TOOL BOX MOUNTING TOOL BOX GROMMET GROUP UPPER FRAME & COUNTERWEIGHT LOWER FRAME & FENDER SWING RING GREASE LUB SYSTEM DOZER BLADE-REAR DOZER BLADE-FRONT OUTRIGGER MOUNTING-FRONT OUTRIGGER MOUNTING-REAR BOOM MOUNTING (4.6M, STD) BOOM (4.6M, STD) BOOM(ADJUST BOOM) ARM BUCKET CONTROL GROUP BUCKET CONTROL GROUP (QUICK CLAMP) BUCKET (5 TEETH) BUCKET (3 TEETH) BUCKET (4 TEETH) BUCKET (DITCH CLEANING) BUCKET (SLOPE FINISHING) FRONT DRIVE ADAPTER AIR INTAKE HEATER DATAPLATE ROCKER LEVERS VALVE TAPPET FRONT GEAR COVER CYLINDER BLOCK CRANKSHAFT & M/BEARINGS CAM FOLLOWER COVER FRONT GEAR TRAIN ACCESSORY FAN PILOT SPACER THERMOSTAT & HOUSING ALTERNATOR LOCATION ALTERNATOR DRIVE MECHANICAL TACHOMETER DRIVE FAN DRIVE INJECTION PUMP 1 INJECTION PUMP 2 FUEL CLEANER FLYWHEEL HOUSING AIR INTAKE MANIFOLD INJECTOR PLUMBLING AIR INTAKE CONNECTION EXHAUST CONNECTION OIL PAN MOUNT FLYWHEEL LIFTING BRACKET LUBRICATING OIL COOLER OIL LEVEL GAUGE LUBRICATING OIL PUMP OIL FUEL CONTROL OIL PAN CONNECTING ROD & PISTON CAMSHAFT FUEL INJECTOR CYLINDER HEAD STARTING MOTOR VALVE COVER LIFT PUMP TURBOCHARGER FLUID LEVEL SENSOR ENGINE OIL DRAIN VALVE TURBOCHARGER PLUMBING WATER PUMP WATER INLET CONNECTION FUEL DRAIN LOCATION FUEL SHUTOFF VALVE STARTER MOUNTING NOISE PANEL FUEL FILTER PLUMBING EXHAUST MANIFOLD CAM FOLLOWER COVER MOUNTING TOOLS HCE-DT KIT DECALS MANUALS

1

1

2

3

4

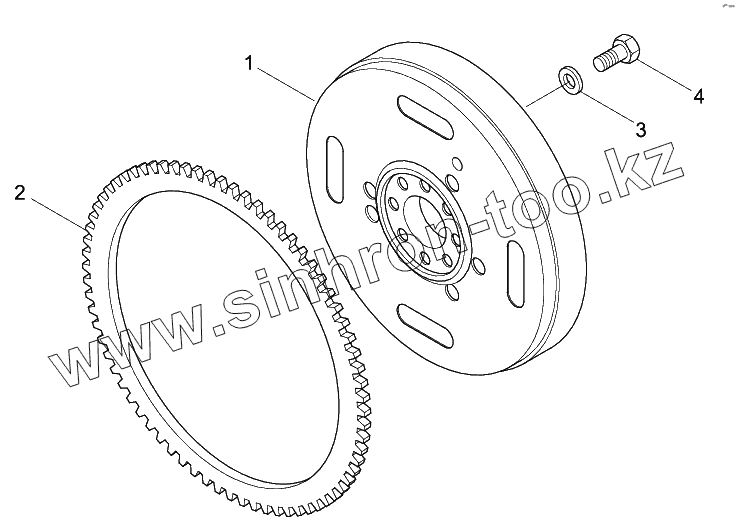

Позиция на иллюстрации	Заводской номер детали		Название детали
1	3673363		Flywheel
1	3673362		Flywheel
2	3905427		GEAR-FLYWHEEL RING
3	3900269		Washer-Plain
4	3901395		Screw-Hex F/Head Cap

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
