4089546
1
2
3
3
4
5
6
7
7
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21

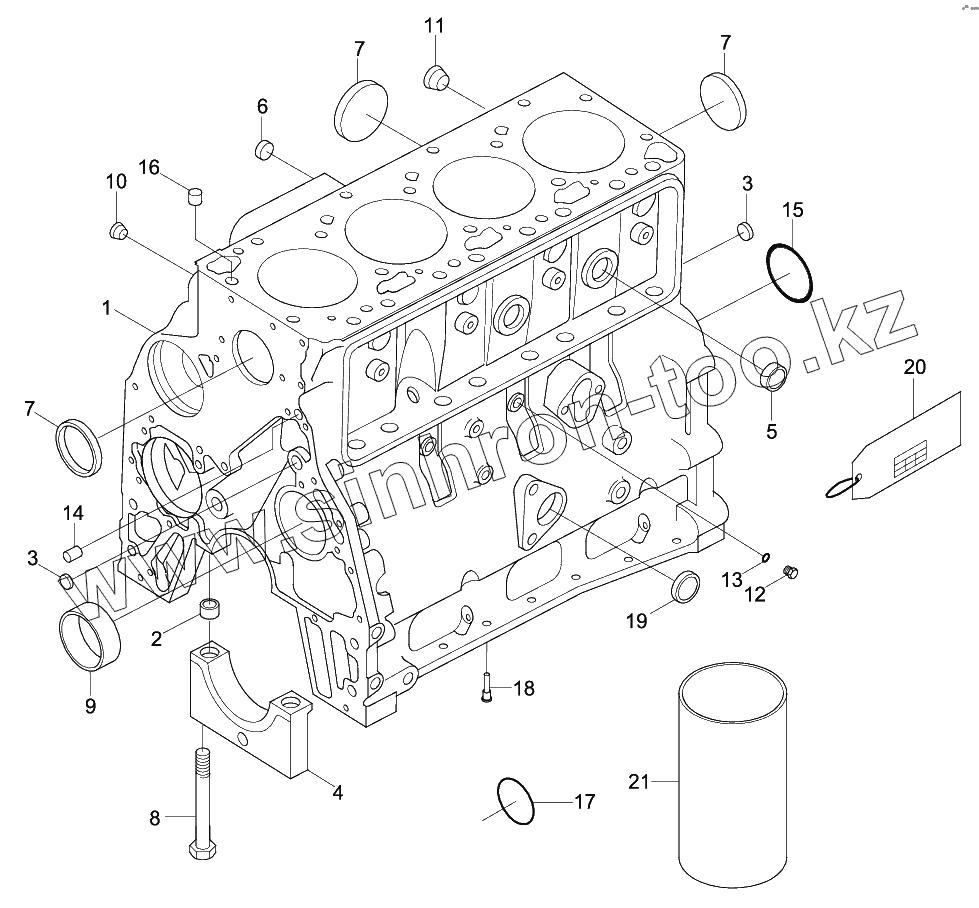

Позиция на иллюстрации
Заводской номер детали
Название детали
3933224
3933224
Kit-Cyl Block Hw
4089546
4089546
Cylinder Block
1
3938366
Block-Cylinder
2
3900068
Dowel-Ring
3
3900956
PLUG-EXPANSION
4
3936791
Cap-Main Bearing
5
3914035
Plug-Expansion
6
3920706
PLUG-EXPANSION
7
3922072
Plug-Expansion
8
3927948
Screw
9
3940059
Bushing
10
3008468
PLUG-PIPE
11
3008469
PLUG-PIPE
12
3678923
PLUG-THREAD
12
3678924
PLUG-THREAD
13
3678925
SEAL/O-RING
14
3900257
DOWEL-PIN
15
3900687
Plug-Expansion
16
3902343
Dowel-Ring
17
3926047
Seal/O-Ring
18
3937214
Nozzle
19
3900958
Plug-Expansion
20
3933613
Tag
21
3904166
Sleeve-Salvage
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
