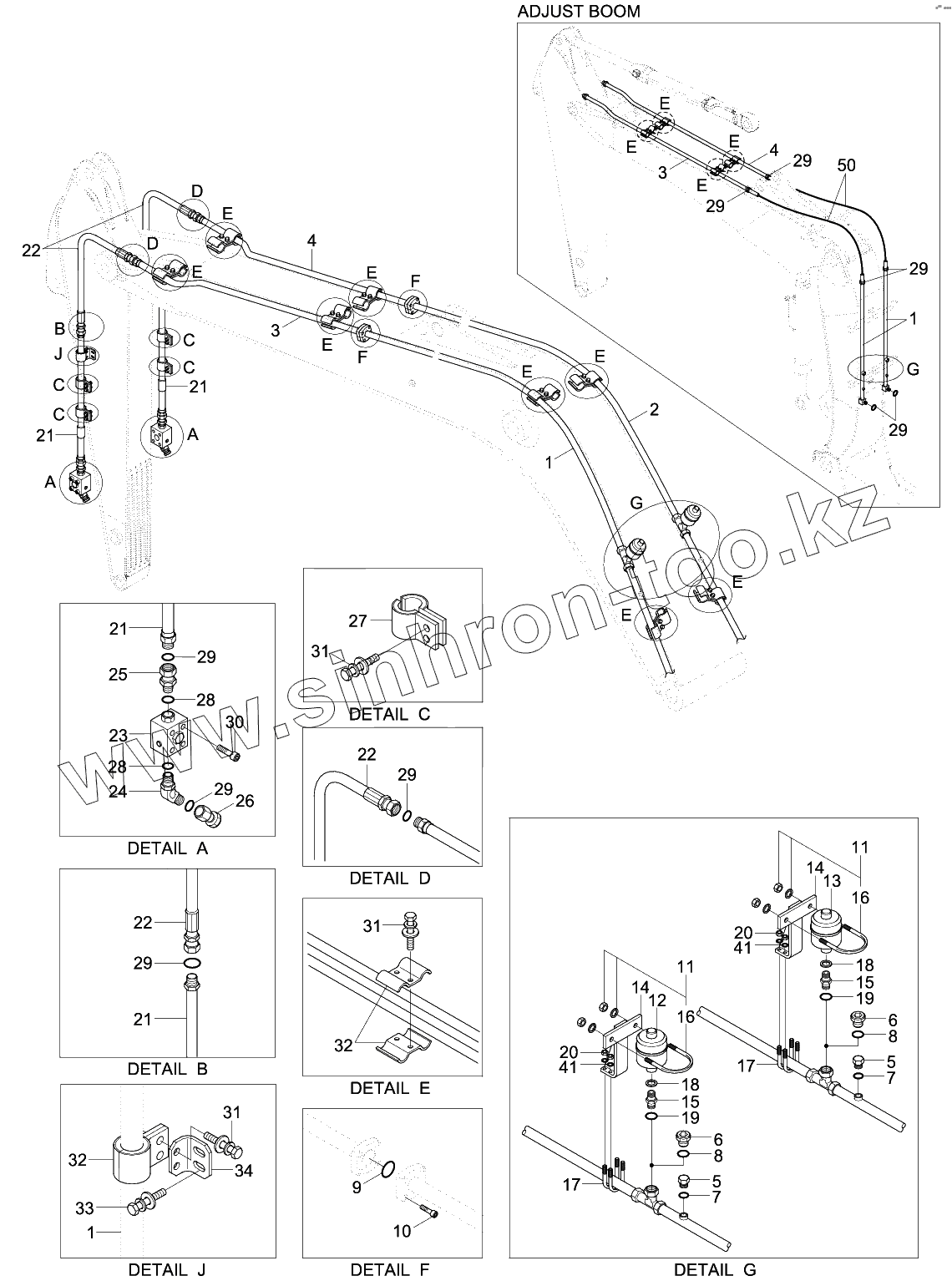

  5. ATTACH PIPING KIT (S & D/ACTING)

Каталог запасных частей к технике: Hyundai R140W-9S. ATTACH PIPING KIT (S & D/ACTING)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
2
2
3
3
3
4
4
4
5
5
6
6
7
7
8
8
9
10
11
11
12
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
21
21
21
21
22
22
22
22
23
23
24
25
26
27
28
28
29
29
29
29
29
29
29
29
30
31
31
31
32
32
33
34
41
41
50
Позиция на иллюстрации Заводской номер детали Название детали
31Q4-90420 31Q4-90420 Arm Piping Kit
31Q4-90430 31Q4-90430 Arm Piping Kit
31Q4-90440 31Q4-90440 Arm Piping Kit
31Q4-90320 31Q4-90320 Boom Piping Kit
31Q4-90410 31Q4-90410 Arm Piping Kit
31Q4-90310 31Q4-90310 Boom Piping Kit
1 31Q4-91350 Pipe Assy
1 31Q4-91310 Pipe Assy
2 31Q4-91360 Pipe Assy
2 31Q4-91320 Pipe Assy
3 31Q4-91370 Pipe Assy
3 31Q4-91330 Pipe Assy
4 31Q4-91340 Pipe Assy
4 31Q4-91380 Pipe Assy
5 31EK-11130 COUPLING-SCREW
6 P220-110205 PLUG-HEX
7 S631-011004 O-RING
8 S631-024004 O-RING
9 Y171-019004 O-RING
10 S109-100506 BOLT-SOCKET
11 31Q4-90500 Accumulator Kit
12 31Q8-91670 ACCUMULATOR
13 31Q8-91680 ACCUMULATOR
14 32E6-92080 BRACKET-ACCUM
15 31Q8-91690 CONNECTOR
16 32E6-92060 U-BOLT
17 S071-032730 U-Bolt
18 31Q8-91700 SEAL
19 S631-024004 O-RING
20 S205-10100B NUT-HEX
21 31Q4-93480 Pipe Assy
21 31Q4-93470 Pipe Assy
21 31Q4-93460 Pipe Assy
22 P935-126033 Hose Assy-Orfs,Thd 0x0
22 P935-126030 Hose Assy-Orfs,Thd 0x0
23 31Q4-97010 Stop Valve Assy
23 31Q4-97011 Stop Valve Assy
24 X530-110004 Elbow-45, Orfs
25 31Q4-93390 Adapter
26 X710-100106 CAP-HYD,ORFS
27 31Q4-50230 Clamp Assy-Pipe
28 S631-024004 O-RING
29 S621-018001 O-RING
30 S109-100606 Bolt-Socket
31 S037-123526 BOLT-W/WASHER
32 31Q4-50300 Clamp Assy
33 S037-122526 BOLT-W/WASHER
34 31Q4-93490 Bracket
41 S403-10200B WASHER-PLAIN
50 P910-126020 Hose Assy-Orfs 0x0
