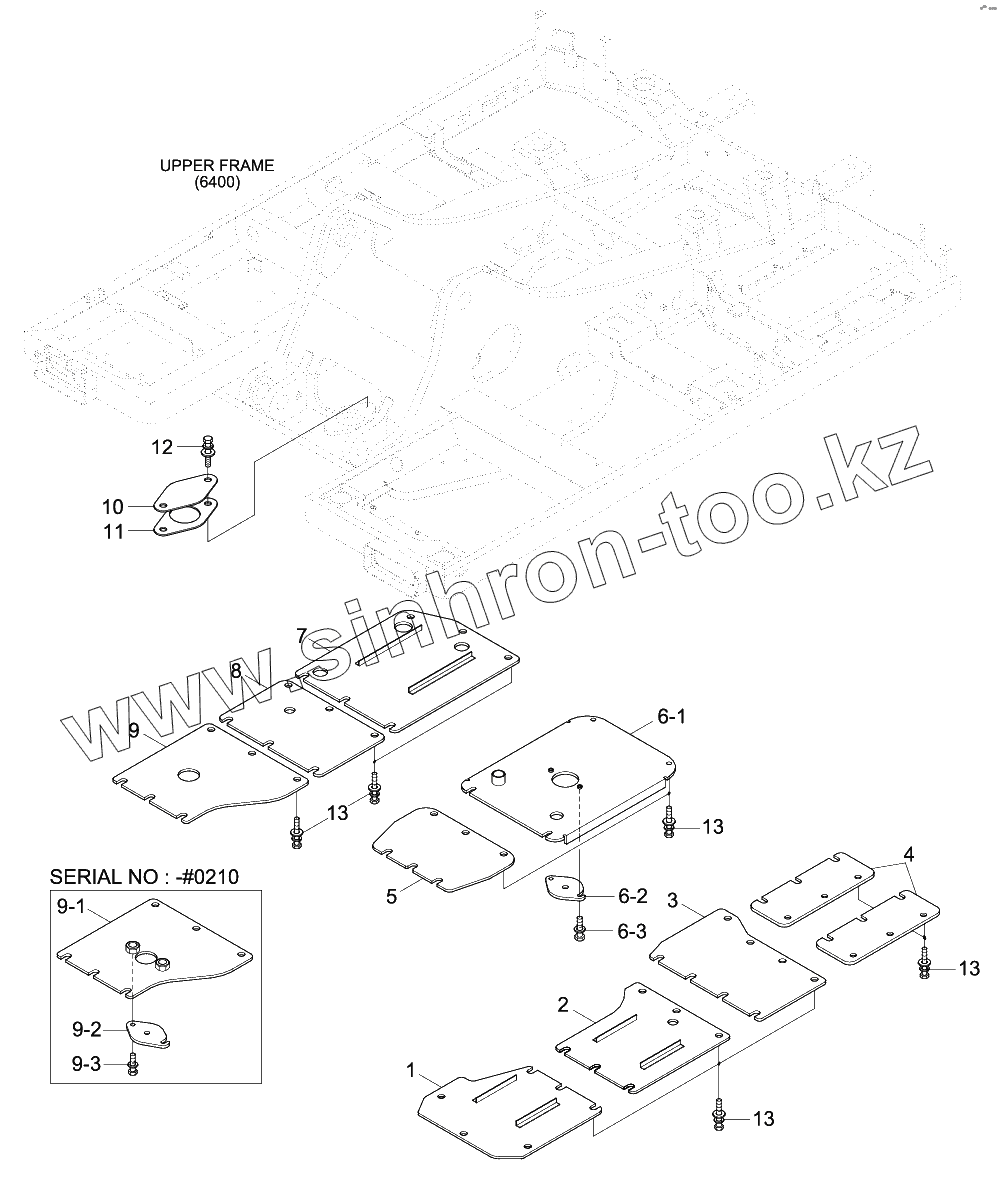

Каталог запасных частей к технике: Hyundai R140W-9. UNDER COVER

Тип техники

Марка

Модель

Схема

9-2

9-3

1

2

3

4

5

6

6

6

6-1

6-1

6-1

6-2

7

7

8

9

9

9

9-1

13

13

13

13

1

2

3

4

5

6

6-1

6-2

6-3

7

8

9

9-1

10

11

12

13

13

13

13

Позиция на иллюстрации	Заводской номер детали		Название детали
9-2	43N4-10580		Cover-Oil Drain
9-3	S037-102056		Bolt-W/Washer
1	41Q4-11210		Under Cover-Cab
2	41Q4-11220		Under Cover-Cab
3	41Q4-11230		Under Cover-Cab
4	41Q4-11240		Under Cover-Rad
5	41Q4-11250		Under Cover-Mcv
6	41Q4-11260		Under Cover Assy-Eng
6	41Q4-11261		Under Cover Assy-Eng
6	41Q4-11262		Under Cover Assy-Eng
6-1	41Q4-11330		Cover Wa-Engine
6-1	41Q4-11331		Cover Wa-Engine
6-1	41Q4-11332		Cover Wa-Engine
6-2	41Q4-11300		Cover-Oil Drain
7	41Q4-11271		Under Cover-Pump
7	41Q4-11272		Under Cover-Pump
8	41Q4-11280		Under Cover-Hyd Tank
9	41Q4-11290		Under Cover-F/Tank
9	41Q4-11291		Under Cover-F/Tank
9	41Q4-11292		Under Cover-F/Tank
9-1	41Q4-11360		Cover Wa-Fuel Tank
13	41Q8-60025		Bolt-W/Washer
1	41Q4-10310		Under Cover-Cab
2	41Q4-10221		Under Cover-Cab
3	41Q4-10231		Under Cover-Cab
4	41Q4-10241		Under Cover-Rad
5	41Q4-10251		Under Cover-Mcv
6	41Q4-10350		Under Cover Assy-Eng
6-1	41Q4-10360		Cover Wa-Engine
6-2	43N4-10580		Cover-Oil Drain
6-3	S037-102056		Bolt-W/Washer
7	41Q4-11270		Under Cover-Pump
8	41Q4-10281		Under Cover-Hyd Tank
9	41Q4-10292		Under Cover-F/Tank
9-1	41Q4-10330		Cover Wa-Fuel Tank
10	41N6-10100		COVER
11	41E9-1306		SEAL
12	S037-102556		BOLT-W/WASHER
13	41Q8-60030		BOLT-W/WASHER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
