Каталог запасных частей к технике: Hyundai R140W-9. TRAVEL MOTOR (1/2)

Тип техники

Марка

Модель

Схема

13

1-1-6

1-1-6

1-1-6

1-1-6

1-1-6

1-1-6

1-1-6

1-6

1-6

1-6

1-6

1-6

1-6

1-6

1-6

31Q4-41010

1-1-1

1-1-2

1-1-3

1-1-4

1-1-6

1-1-7

1-1-11

1-1-12

1-2

1-3

1-6

1-7

1-10

1-11

5

8

9

11

17

17

XJDD-00684

10

12

18

18

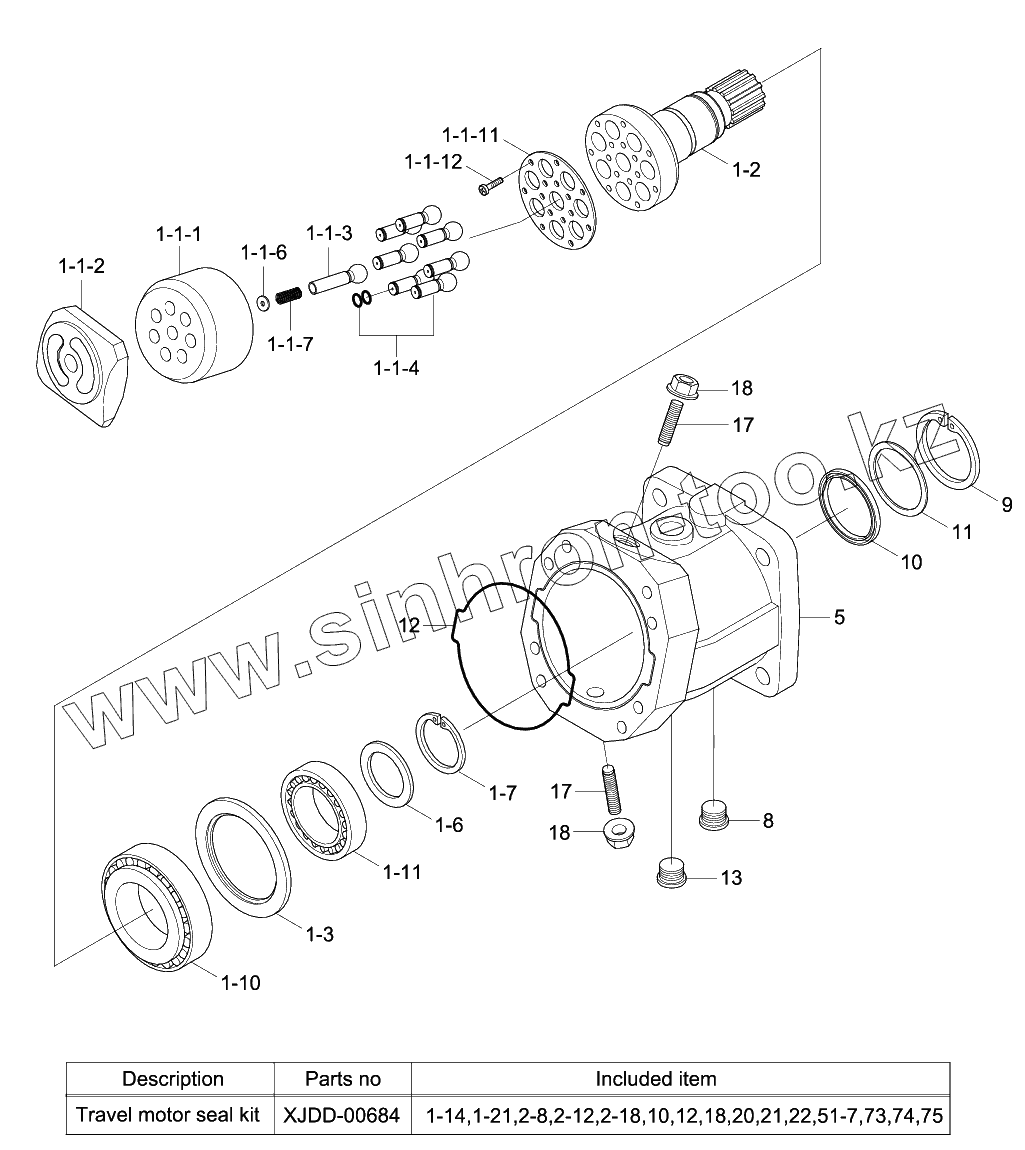

Позиция на иллюстрации	Заводской номер детали		Название детали
13	XJDD-01010		Screw-Locking
1-1-6	XJDD-00919		Shim-Adjust
1-1-6	XJDD-00234		Shim-Adjust
1-1-6	XJDD-00235		Shim-Adjust
1-1-6	XJDD-00236		Shim-Adjust
1-1-6	XJDD-00237		Shim-Adjust
1-1-6	XJDD-00238		Shim-Adjust
1-1-6	XJDD-00239		Shim-Adjust
1-6	XJDD-00219		Plate-Back Up
1-6	XJDD-00220		Plate-Back Up
1-6	XJDD-00221		Plate-Back Up
1-6	XJDD-00222		Plate-Back Up
1-6	XJDD-00223		Plate-Back Up
1-6	XJDD-00224		Plate-Back Up
1-6	XJDD-00225		Plate-Back Up
1-6	XJDD-00226		Plate-Back Up
31Q4-41010	31Q4-41010		Travel Motor
Control	Control		Control
1	XJDD-00336		Rotary Group
1-1	XJDD-00337		Rotary-Hyd Section
1-1-1	XJDD-00230		Cylinder
1-1-2	XJDD-00231		Control Lens
1-1-3	XJDD-00232		Pin-Center
1-1-4	XJDD-00233		Piston Assy
1-1-6	XJDD-00918		Shim-Adjust
1-1-7	XJDD-00240		Spring-Pressure
1-1-11	XJDD-00241		Plate-Retaining
1-1-12	XJDD-00674		Screw-Pan Head
1-2	XJDD-00477		Shaft-Drive
1-3	XJDD-00217		Shim
1-6	XJDD-00218		Plate-Back Up
1-7	XJDD-00227		Ring-Retaining
1-10	XJDD-00228		Bearing-Roller
1-11	XJDD-00229		Bearing-Roller
5	XJDD-01009		Housing
8	XJDD-01010		Screw-Locking
9	XJDD-00211		Ring-Retaining
11	XJDD-00213		Plate-Back Up
17	XJDD-00111		Pin-Threaded
XJDD-00684	XJDD-00684		Seal Kit
10	XJDD-00212		Seal Ring-Shaft
12	XJDD-00214		O-Ring
18	XJDD-00120		Nut-Seal Lock

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
