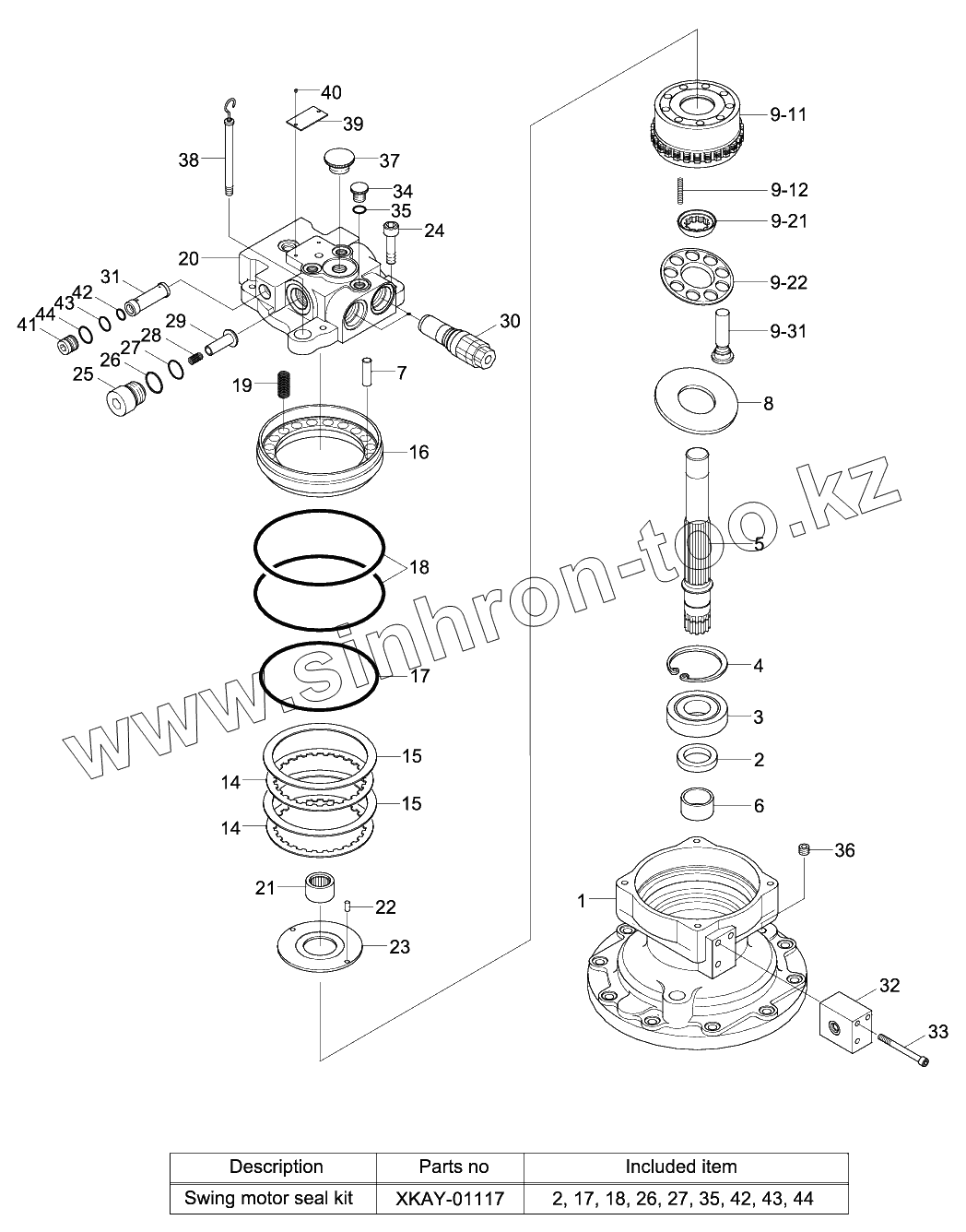

Каталог запасных частей к технике: Hyundai R140W-9. SWING MOTOR

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
3
4
5
6
7
8
9-12
14
14
15
15
16
19
20
21
22
23
24
25
28
29
30
31
32
33
34
36
37
38
39
40
41
XKAY-01117
2
2
17
17
18
18
26
26
27
27
35
35
42
42
43
43
44
44
SwingMotorAssy
9-11
9-21
9-22
9-31
Позиция на иллюстрации Заводской номер детали Название детали
31Q4-11130 31Q4-11130 Swing Motor Unit
1 XKAY-01099 Body
3 XKAY-00282 Bearing-Roller
4 XKAY-00283 Ring-Snap
5 XKAY-01100 Shaft
6 XKAY-00285 Bushing
7 XKAY-00625 Pin
8 XKAY-01101 Plate-Shoe
9 XKAY-01102 Rotary Kit
9-1 XKAY-01103 Block Kit-Cylinder
9-2 XKAY-01105 Retainer Kit
9-3 XKAY-01107 Piston Kit
9-12 XKAY-00291 Spring
14 XKAY-01109 Plate-Friction
15 XKAY-01110 Plate
16 XKAY-01111 Piston-Brake
19 XKAY-01585 Spring
20 XKAY-01113 Cover-Rear
21 XKAY-00304 Bearing-Needle
22 XKAY-00562 Pin
23 XKAY-01114 Plate-Valve
24 XKAY-00308 Bolt-Wrench
25 XKAY-00309 Plug
28 XKAY-00311 Spring
29 XKAY-00312 Check
30 XKAY-01586 Relief Valve Assy
31 XKAY-00314 Reactionless Vlv Assy
32 XKAY-01470 TIME DELAY VALVE ASSY
33 XKAY-00149 BOLT-WRENCH
34 XKAY-00150 PLUG
36 XKAY-00140 Plug
37 XKAY-00317 Plug
38 XKAY-01115 Gauge-Level
39 XKAY-01116 Name Plate
40 XKAY-00277 Rivet
41 XKAY-00322 Plug
XKAY-01117 XKAY-01117 Seal Kit
2 XKAY-00281 Seal-Oil
17 XKAY-00301 O-Ring
18 XKAY-01112 O-Ring
26 XKAY-00141 Ring-Back Up
27 XKAY-00310 O-Ring
35 XKAY-00256 O-RING
42 XKAY-00324 O-Ring
43 XKAY-00247 O-RING
44 XKAY-00605 Ring-Back Up
SwingMotorAssy SwingMotorAssy Swing Motor Assy
9-11 XKAY-01104 Block-Cylinder
9-21 XKAY-01584 Guide-Ball
9-22 XKAY-01106 Plate-Set
9-31 XKAY-01108 Piston Assy
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
