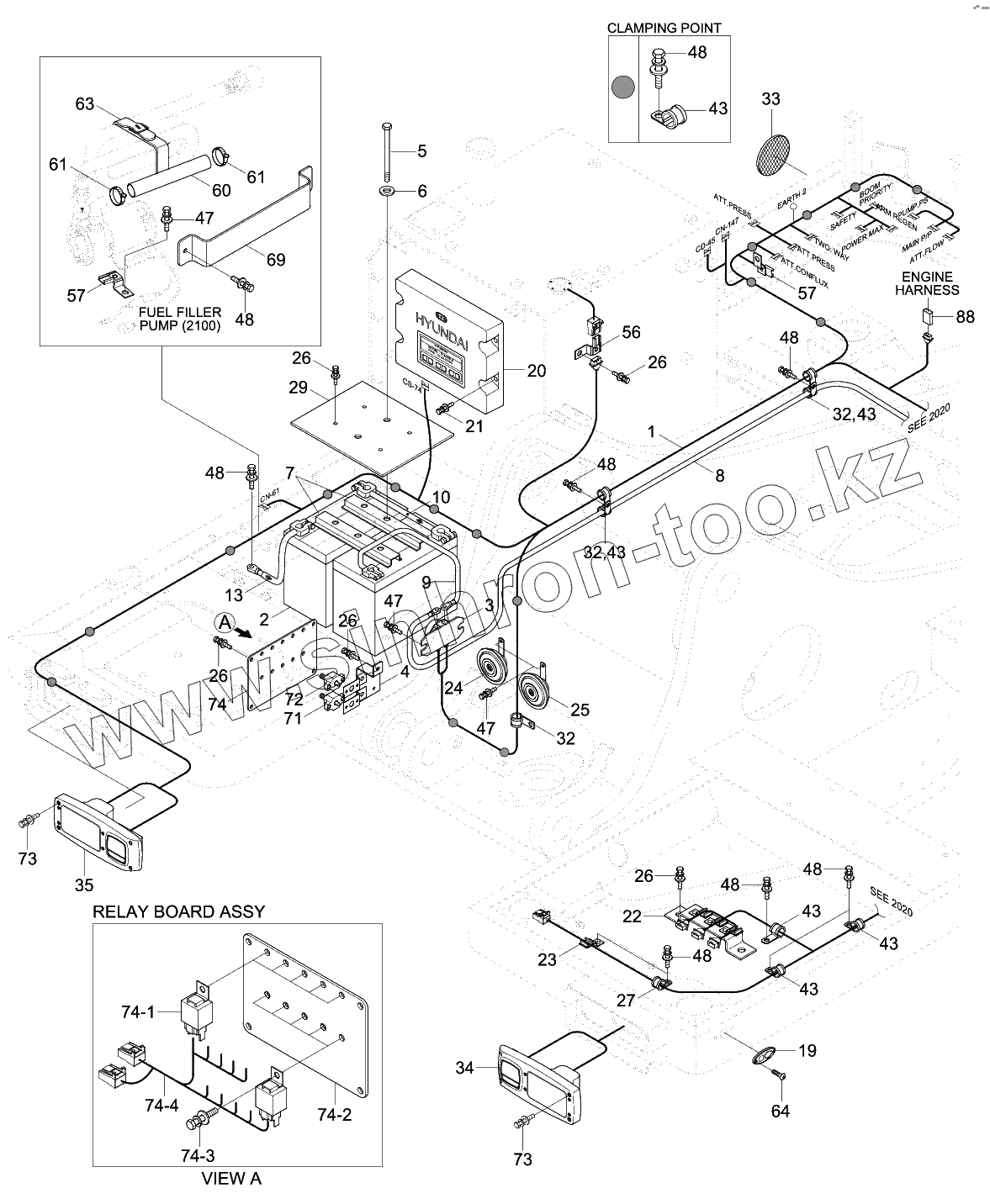

Каталог запасных частей к технике: Hyundai R140W-9. RH ELECTRIC
1
1
3
69
71
71
72
74
1
2
3
4
5
6
7
8
9
10
13
19
20
21
22
23
24
25
26
26
26
26
26
27
29
32
32
32
33
34
35
43
43
43
43
43
43
47
47
47
48
48
48
48
48
48
48
48
56
57
57
60
61
61
63
64
69
71
72
73
73
74
74-1
74-2
74-3
74-4
88
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 21Q4-30361 | Harness-Frame | |
| 1 | 21Q4-30362 | Harness-Frame | |
| 3 | 21QA-70010 | RELAY-BATTERY | |
| 69 | 21QB-20080 | PLATE-CLAMP | |
| 71 | 21M9-01170 | Circuit-Breaker, 60a | |
| 71 | 21M9-01171 | Circuit-Breaker | |
| 72 | 21Q4-01161 | CIRCUIT-BREAKER,30A | |
| 74 | 21Q6-20441 | Relay Board Assy | |
| 1 | 21Q4-30360 | Harness-Frame | |
| 1-1 | 21EA-50550 | Diode | |
| 2 | 21E6-20270 | Battery | |
| 3 | 21E5-0003 | Relay-Battery | |
| 4 | 21Q4-01141 | Plate | |
| 5 | S017-102506 | Bolt-Hex | |
| 6 | S403-10200B | WASHER-PLAIN | |
| 7 | 21Q4-60400 | Bar-Battery | |
| 8 | 21E2-60031 | Cable | |
| 9 | 21EA-60490 | Cable | |
| 10 | 21N4-01400 | Cable | |
| 13 | 24L3-01120 | CABLE | |
| 19 | 21Q4-20200 | Lamp-Side Marker | |
| 20 | 21Q4-32201 | Mcu | |
| 21 | S035-081526 | BOLT-W/WASHER | |
| 22 | 31L7-10220 | CLAMP-TUBE | |
| 23 | 21N4-01130 | PLATE-CLIP | |
| 24 | 21Q4-30500 | Horn-Low | |
| 25 | 21Q4-30600 | Horn-High | |
| 26 | S037-101556 | BOLT-W/WASHER | |
| 27 | 31L7-10210 | CLAMP-TUBE INS | |
| 29 | 21Q4-60300 | Cover-Battery | |
| 32 | 31L7-10200 | CLAMP-TUBE | |
| 33 | 21EK-10150 | Reflector-Side | |
| 34 | 21Q4-10350 | Lamp-Head&Position,Lh | |
| 34-1 | 21Q4-16210 | Head Lamp Unit | |
| 34-2 | 21Q4-16230 | Case-Head Lamp | |
| 34-3 | 21Q4-16220 | Lamp-Flasher Position | |
| 35 | 21Q4-10360 | Lamp-Head&Position,Rh | |
| 43 | 31L7-10190 | CLAMP-TUBE | |
| 47 | S035-082526 | BOLT-W/WASHER | |
| 48 | S037-102026 | BOLT-W/WASHER | |
| 56 | 25D1-10640 | CLIP ASSY | |
| 57 | 25D1-10650 | CLIP ASSY | |
| 60 | 21N4-20550 | Hose-Outlet | |
| 61 | S520-032000 | CLAMP-HOSE | |
| 63 | E127-3158 | BAND-FUEL PUMP | |
| 64 | S141-030156 | Screw-Flat Hd | |
| 69 | 21N6-20080 | Plate-Clamp | |
| 71 | 21Q4-01150 | Circuit-Breaker | |
| 72 | 21Q4-01160 | Circuit-Breaker, 30a | |
| 73 | S141-050306 | Screw-Flat Hd | |
| 74 | 21Q6-20440 | Relay Board Assy | |
| 74-1 | 21E4-0011 | Relay Assy | |
| 74-2 | 21Q6-20430 | Relay Board Wa | |
| 74-3 | S132-061046 | Screw-W/Washer | |
| 74-4 | 21Q6-11160 | Harness-Relay Board | |
| 88 | 21N5-20190 | Protector | |
| 90 | 21Q6-50410 | Adapter |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
