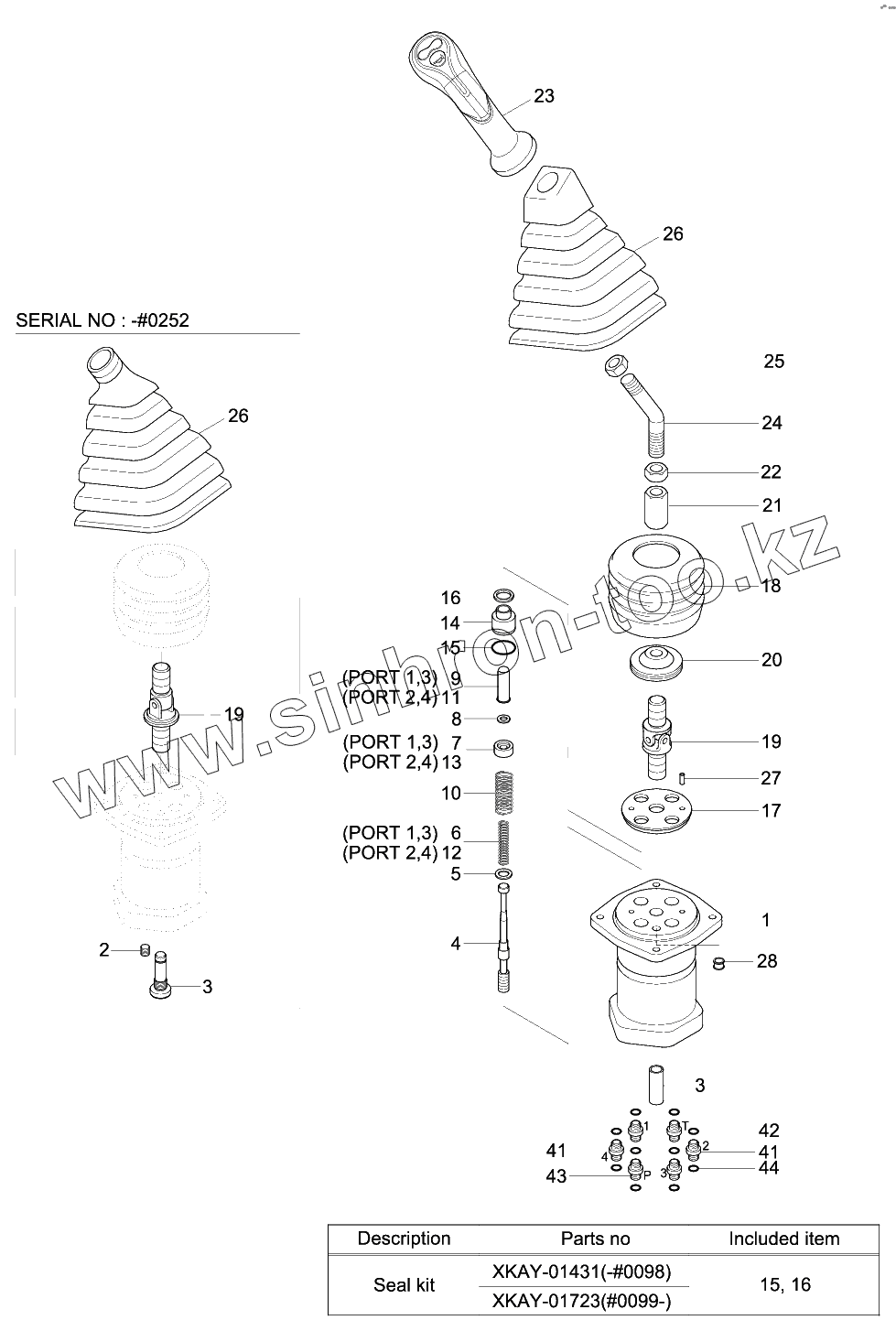

Каталог запасных частей к технике: Hyundai R140W-9. REMOTE CONTROL LEVER
XKAY-01431
XKAY-01423
1
1
1
1
1
2
2
2
2
3
3
3
3
3
3
4
4
4
4
4
5
6
7
8
9
10
10
11
12
13
14
14
15
15
16
16
16
17
17
17
18
19
19
19
20
21
22
23
23
23
23
24
24
25
26
26
27
28
41
41
41
42
43
43
44
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q6-20013 | 31Q6-20013 | Rcv Lever Assy-Lh | |
| XKAY-01723 | XKAY-01723 | SEAL KIT | |
| XKAY-01431 | XKAY-01431 | Seal Kit | |
| XKAY-01426 | XKAY-01426 | Handle Kit Lh | |
| XKAY-01422 | XKAY-01422 | Plug Kit | |
| XKAY-01418 | XKAY-01418 | Spool Kit | |
| 31Q6-21011 | 31Q6-21011 | Rcv Lever Sub-Lh | |
| 31Q6-20011 | 31Q6-20011 | Rcv Lever Assy-Lh | |
| XKAY-01719 | XKAY-01719 | HANDLE KIT-RH | |
| XKAY-01427 | XKAY-01427 | Handle Kit Rh | |
| XKAY-01718 | XKAY-01718 | HANDLE KIT-LH | |
| XKAY-01974 | XKAY-01974 | Plug Kit | |
| XKAY-01423 | XKAY-01423 | Plug Kit | |
| XKAY-01918 | XKAY-01918 | Plug Kit | |
| 31Q6-20021 | 31Q6-20021 | Rcv Lever Assy-Rh | |
| 31Q6-21021 | 31Q6-21021 | Rcv Lever Sub-Rh | |
| 31Q6-21013 | 31Q6-21013 | Rcv Lever Sub-Lh | |
| 31Q6-21012 | 31Q6-21012 | Rcv Lever Sub-Lh | |
| 31Q6-20023 | 31Q6-20023 | Rcv Lever Assy-Rh | |
| 31Q6-20022 | 31Q6-20022 | Rcv Lever Assy-Rh | |
| 31Q6-21022 | 31Q6-21022 | Rcv Lever Sub-Rh | |
| 31Q6-21023 | 31Q6-21023 | Rcv Lever Sub-Rh | |
| XKAY-01973 | XKAY-01973 | Spool Kit | |
| XKAY-01709 | XKAY-01709 | Spool Kit | |
| XKAY-01419 | XKAY-01419 | Spool Kit | |
| 31Q6-20012 | 31Q6-20012 | Rcv Lever Assy-Lh | |
| 1 | XKAY-01706 | Case | |
| 1 | XKAY-01417 | CASE | |
| 2 | XKAY-00065 | PLUG | |
| 3 | XKAY-00768 | BUSHING | |
| 3 | XKAY-01708 | Bushing | |
| 4 | XKAY-00771 | SPOOL | |
| 4 | XKAY-01711 | Spool | |
| 5 | XKAY-00772 | SHIM | |
| 6 | XKAY-01420 | SPRING | |
| 7 | XKAY-00436 | SEAT-SPRING | |
| 8 | XKAY-00058 | STOPPER | |
| 9 | XKAY-00052 | ROD-PUSH | |
| 10 | XKAY-01421 | Spring | |
| 10 | XKAY-01749 | SPRING | |
| 11 | XKAY-00439 | Rod-Push | |
| 12 | XKAY-00781 | Spring | |
| 13 | XKAY-00059 | Seat-Spring | |
| 14 | XKAY-00784 | PLUG | |
| 14 | XKAY-01714 | Plug | |
| 15 | XKAY-00785 | O-Ring | |
| 16 | XKAY-01715 | SEAL-ROD | |
| 16 | XKAY-01424 | Rod Seal | |
| 17 | XKAY-01425 | PLATE | |
| 17 | XKAY-01716 | Plate | |
| 18 | XKAY-00786 | BOOT | |
| 19 | XKAY-00049 | JOINT ASSY | |
| 19 | XKAY-01717 | Joint Assy | |
| 20 | XKAY-01066 | SWASH PLATE | |
| 21 | XKAY-00047 | NUT-HEX | |
| 22 | XKAY-00046 | NUT-LOCK | |
| 23 | XKAY-01428 | Handle Assy-Lh | |
| 23 | XKAY-01720 | HANDLE ASSY-LH | |
| 23 | XKAY-01721 | HANDLE ASSY-RH | |
| 23 | XKAY-01429 | Handle Assy-Rh | |
| 24 | XKAY-01430 | Bar-Handle | |
| 24 | XKAY-01722 | BAR-HANDLE | |
| 25 | XKAY-00811 | NUT | |
| 26 | XKAY-01083 | BOOT | |
| 27 | XKAY-00662 | PIN-SPRING | |
| 28 | XKAY-00074 | BUSHING | |
| 41 | XKAY-00798 | Connector-Orfs | |
| 41 | XKAY-00792 | Connector-Orfs | |
| 42 | XKAY-00793 | O-Ring | |
| 43 | XKAY-00799 | Filter-Last Guard | |
| 43 | XJBN-01115 | Filter-Last Guard | |
| 44 | XKAY-00800 | O-Ring | |
| 44 | XKAY-00795 | O-Ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
